NSIDC MODSCAG/MODICE Processing Flowcharts

NSIDC MODSCAG/MODICE Processing Flowcharts

(Click on any panel to see full resolution version. In the new window, if your browser displays a plus sign in a circle, click again for even more detail)

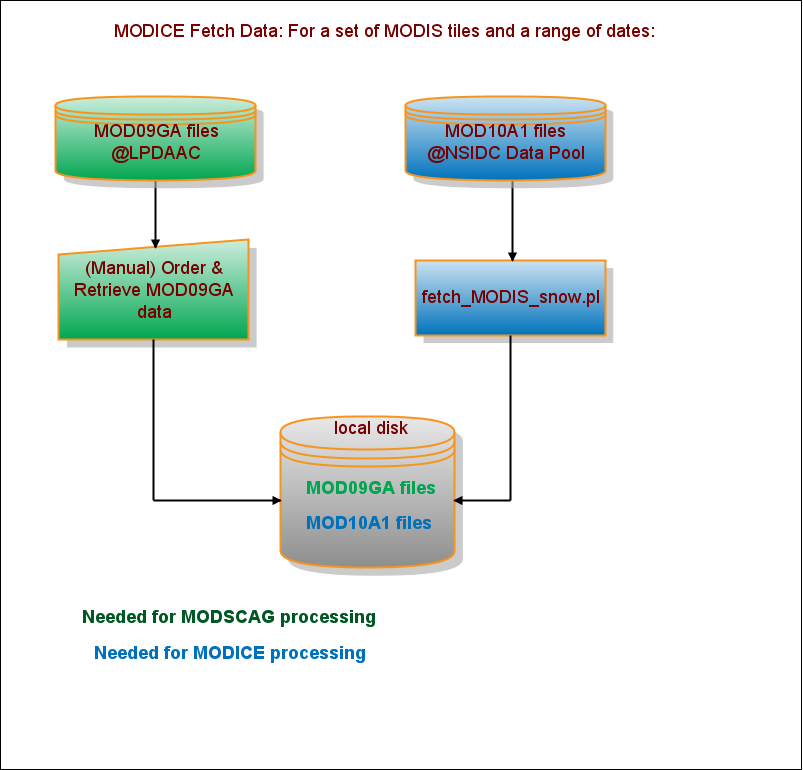

Fetching Data from LPDAAC and NSIDC DAAC

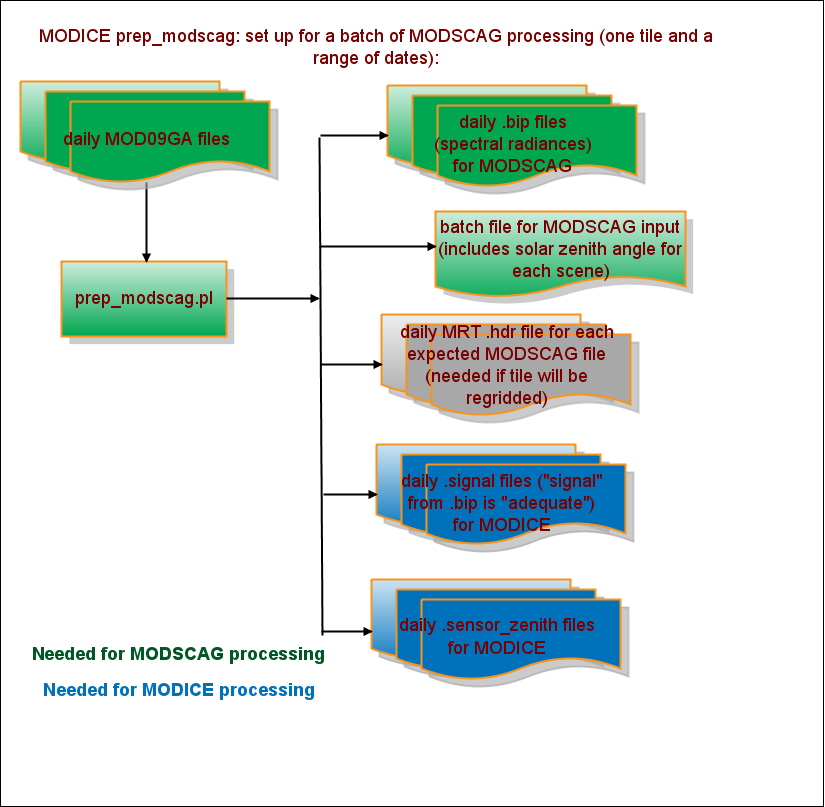

prep_modscag: prepare data for MODSCAG batch

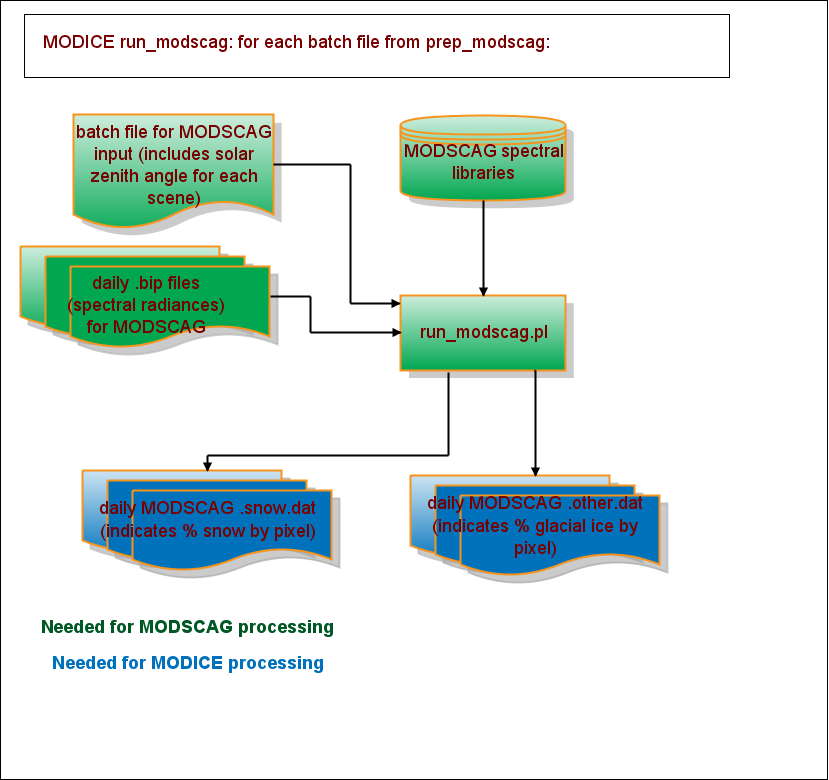

run_modscag: run MODSCAG for a batch of input tiles and dates

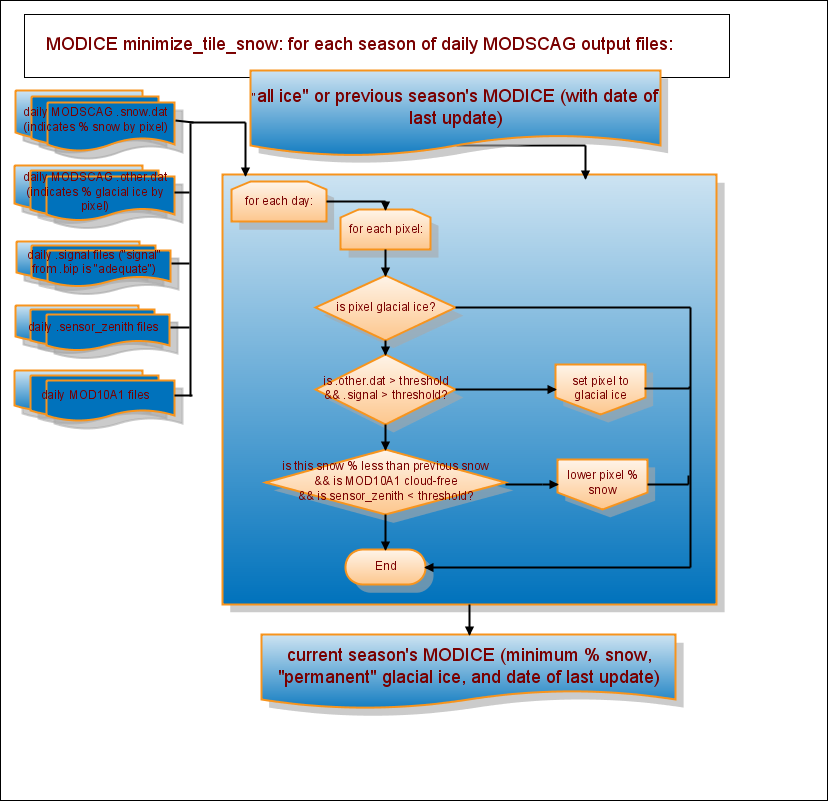

minimize_tile_snow: use MODSCAG data for a season to produce MODICE

M. J. Brodzik <brodzik@nsidc.org>

Last modified: Thu Mar 29 12:13:26 2001
