Before/After fix for reflectance saturation bug
(Click on any panel to see full resolution version. In the new window, if your browser displays a plus sign in a circle, click again for even more detail)

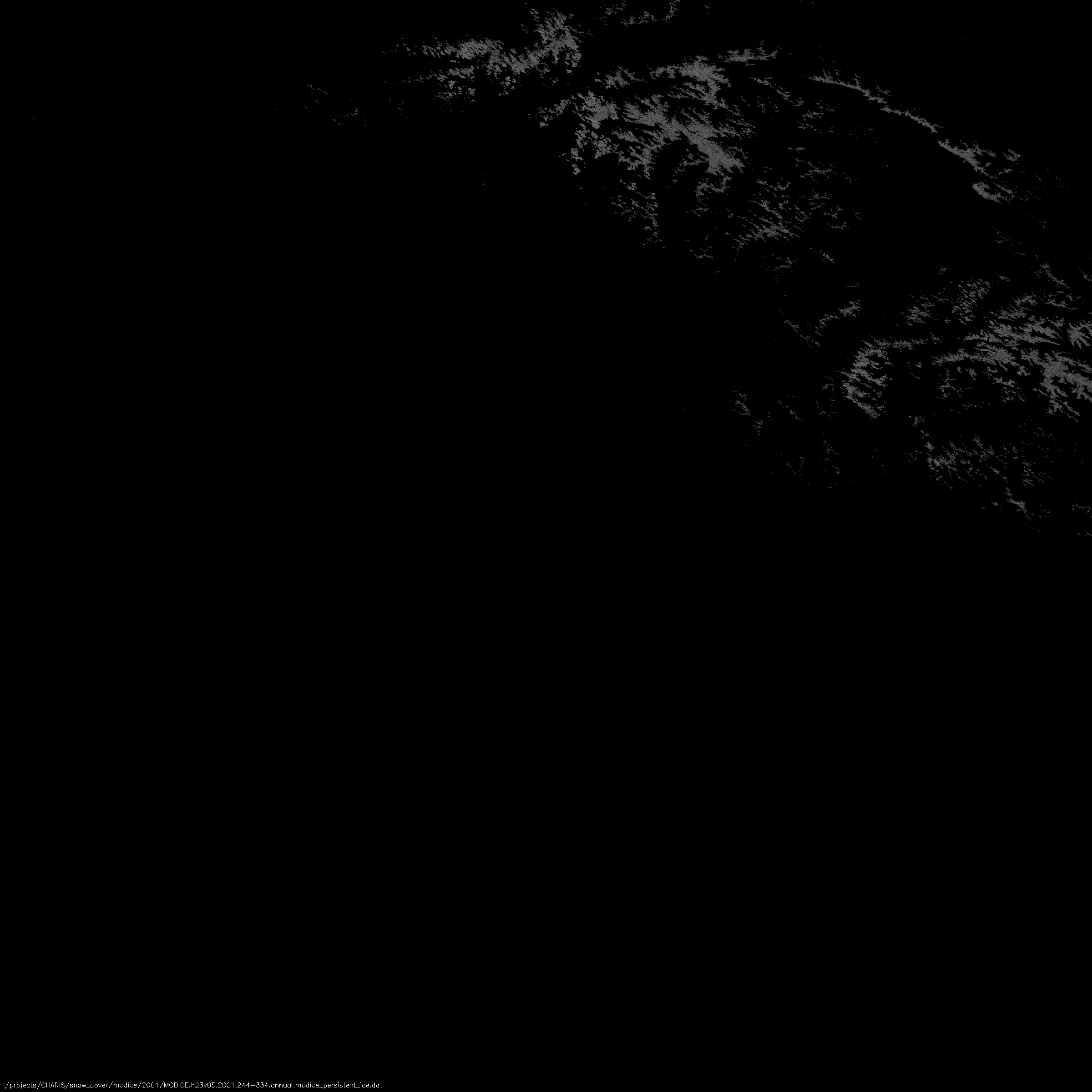

MODICE for tile h23v04, all of 2001 (244-344), before/after bug fix. "Before" data were produced in Oct 2010, so they would also have suffered from the non-snow memory map resolution issue. I think the "after" images *look* a lot less noisy and more realistic. Data values 0-100 snow fraction and 255 for "permanent ice from 'other' category with adequate signal" are displayed with no scaling into linear black-white color table from 0-255.
| Before fixes for saturation bug and non-snow map resolution (processed Oct 2010) |
Latest version (processed Feb 2012) |
 |
 |

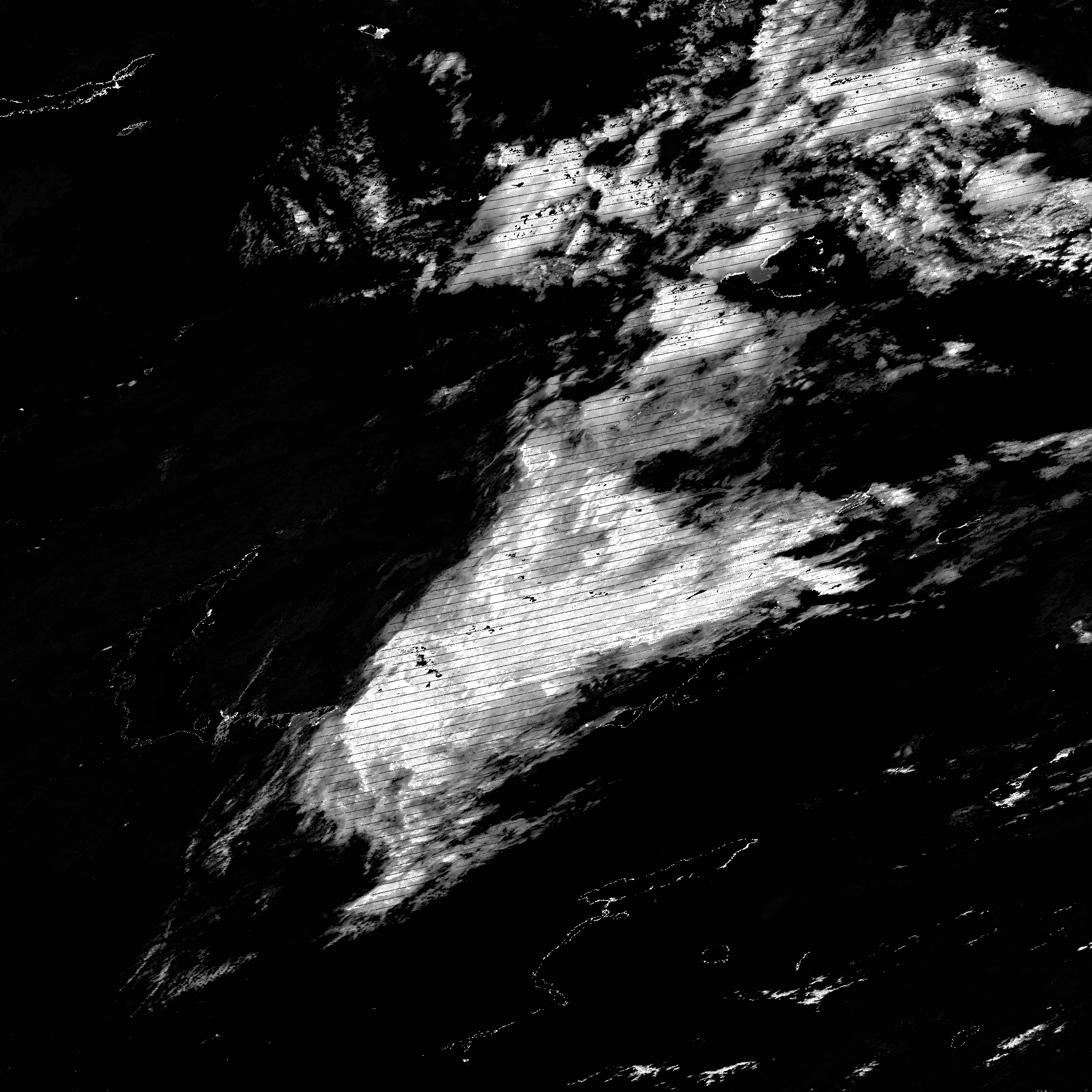

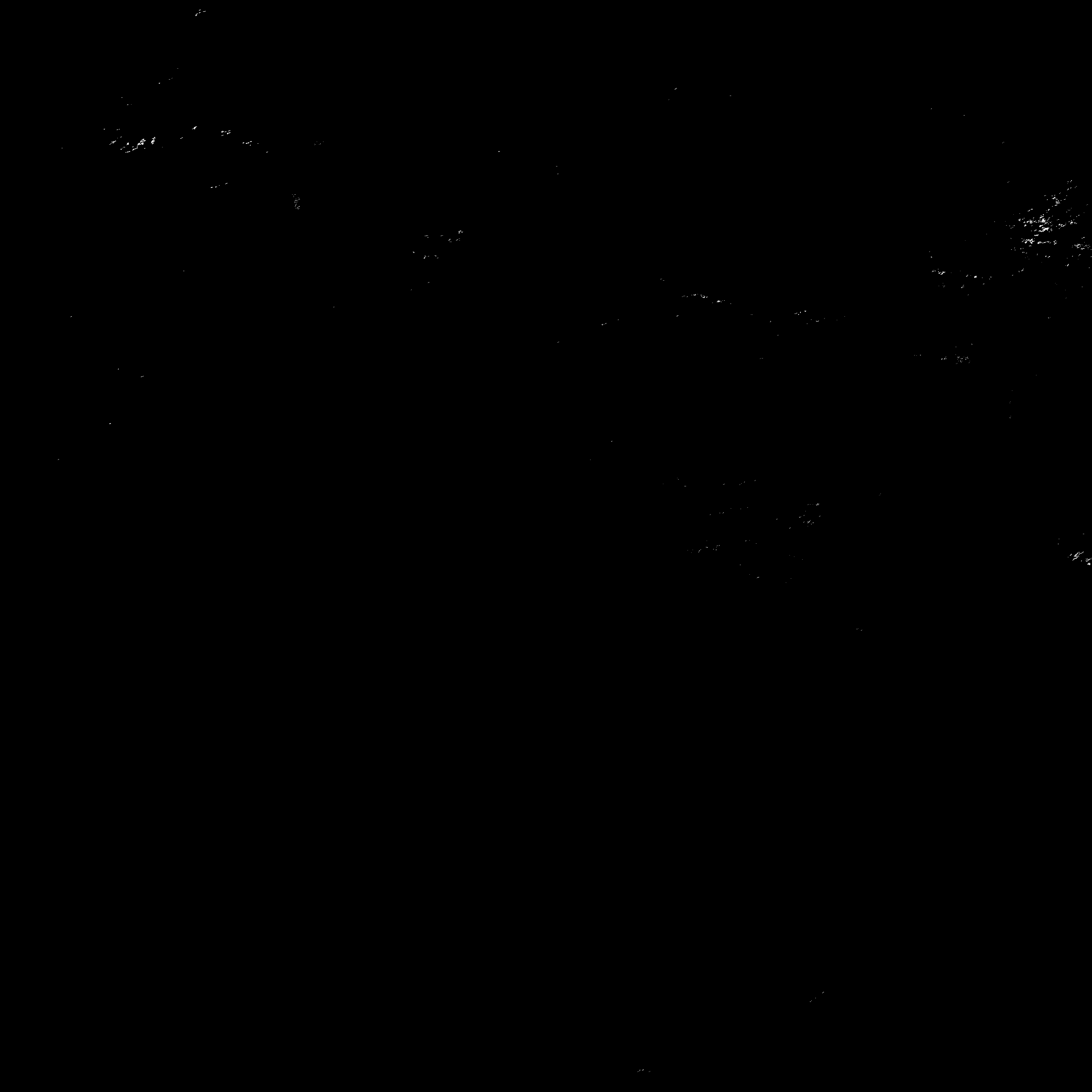

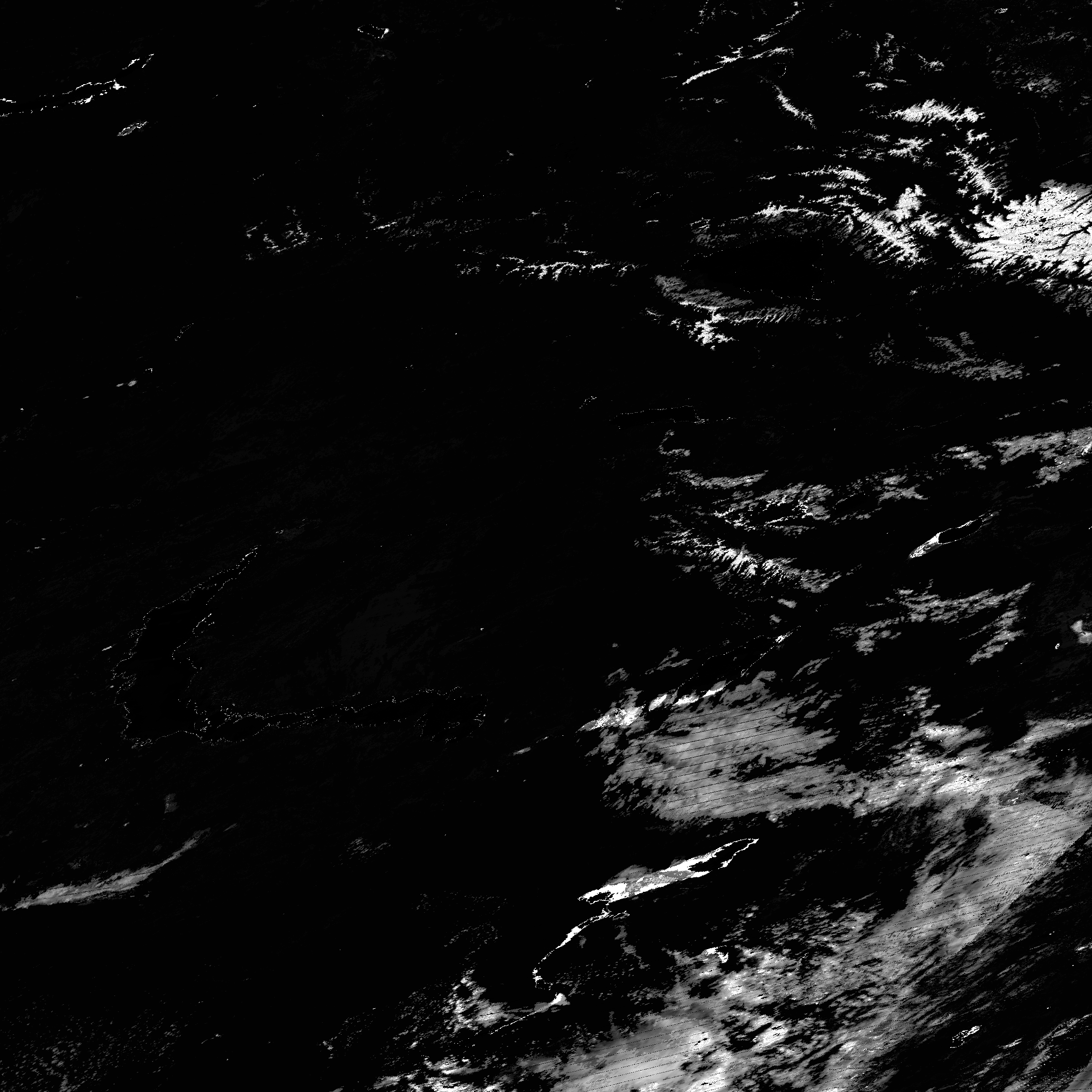

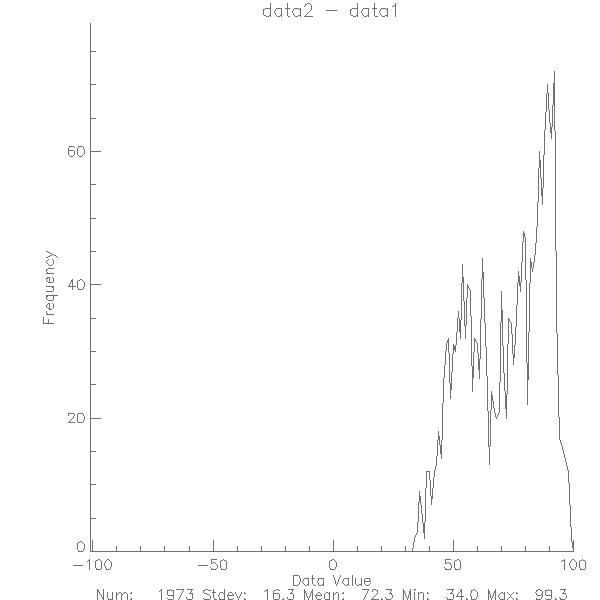

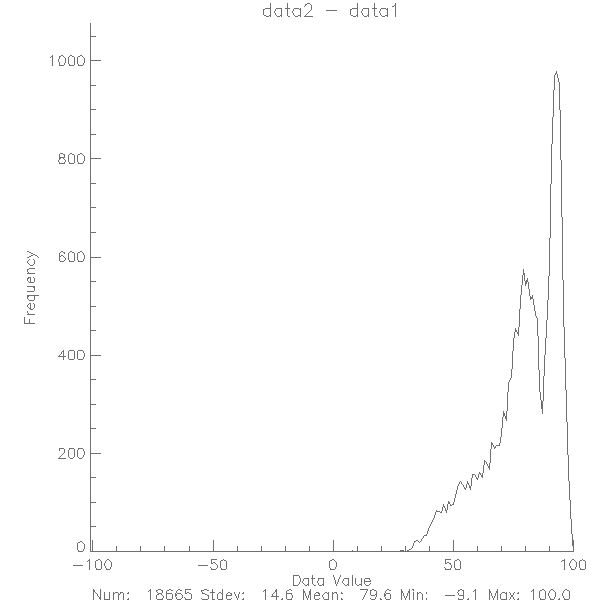

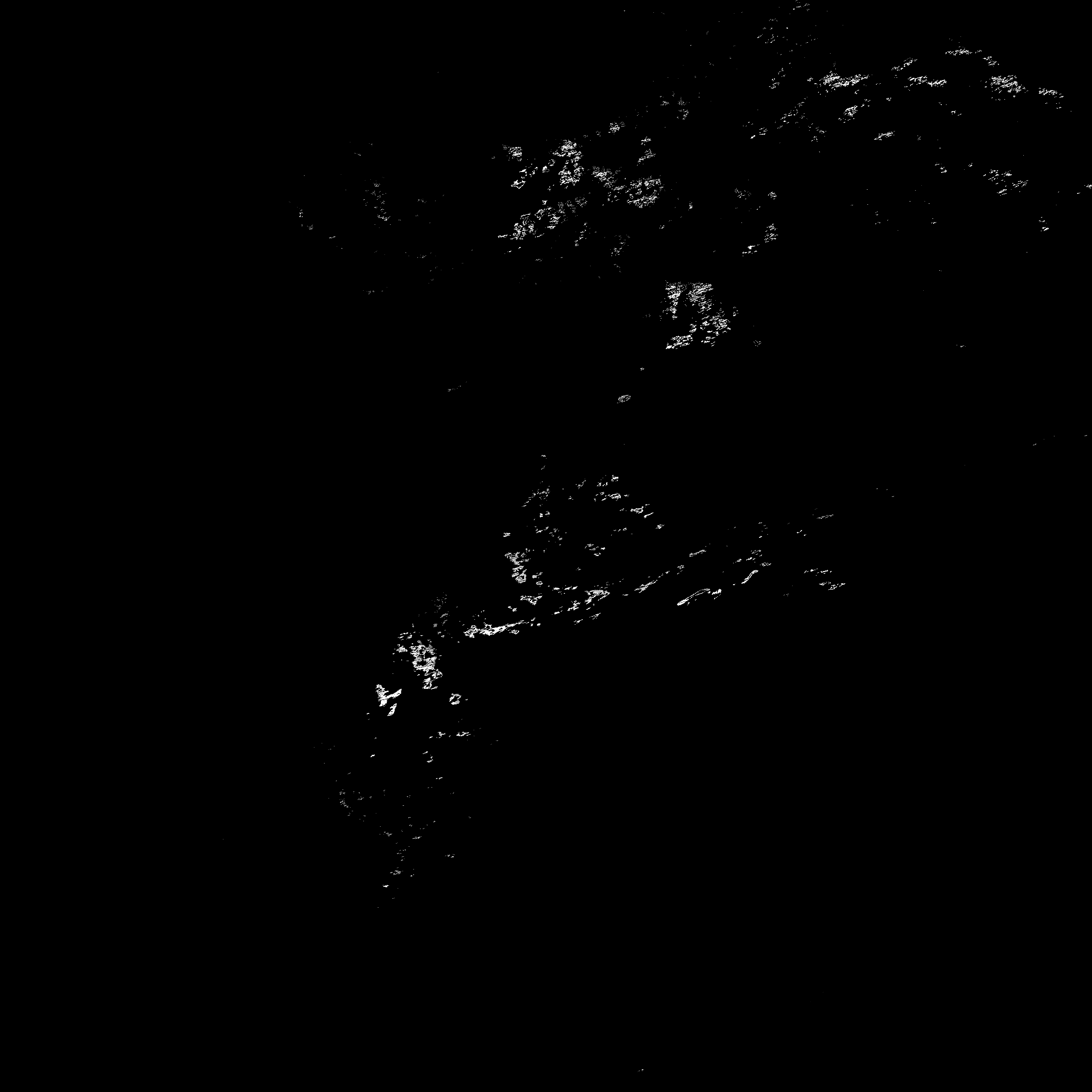

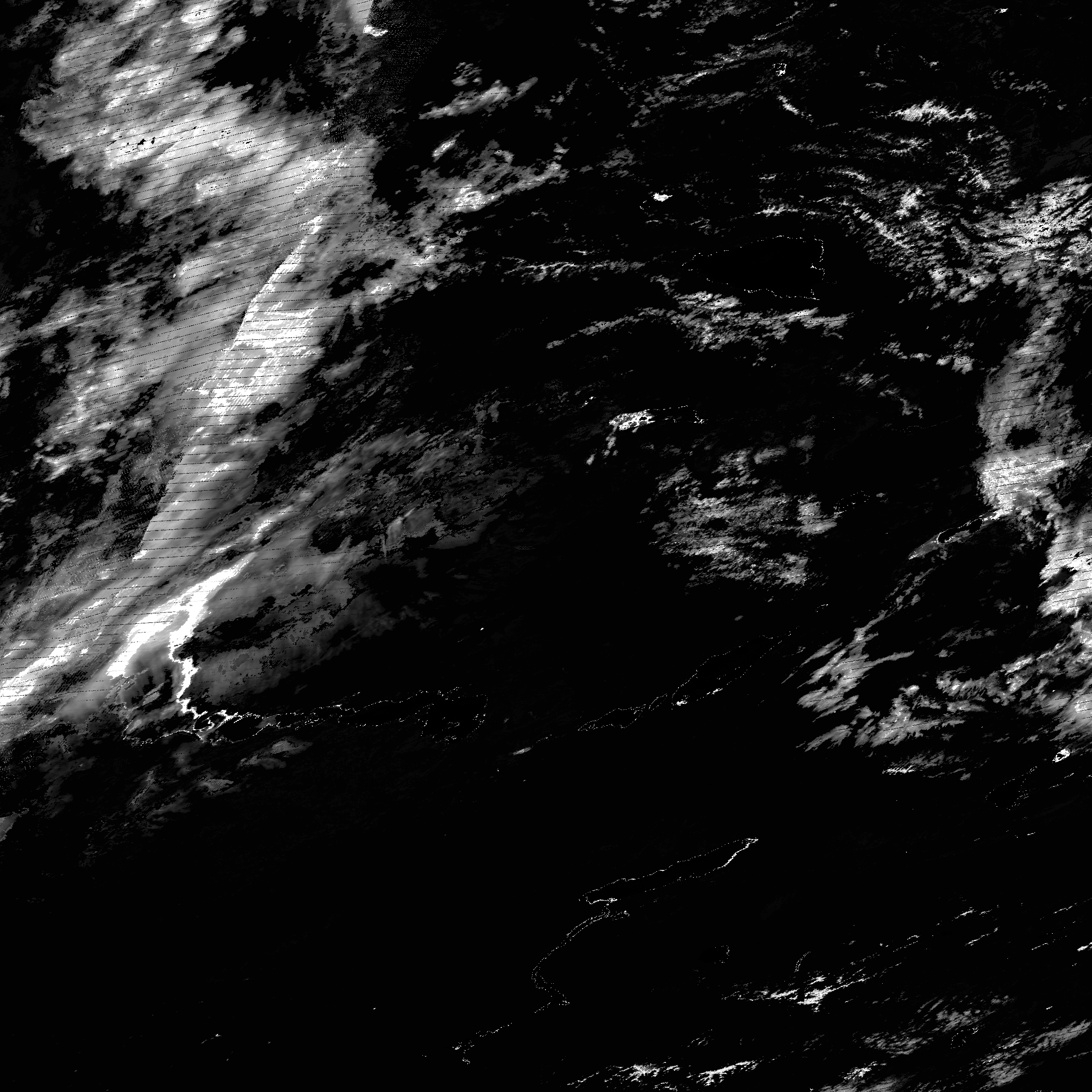

Before/after snow_fraction output for 2001, Sept 2-5, tile h23v04. Left 2 images are before/after bug fix, third image is difference, last is histogram of image differences.
| date |

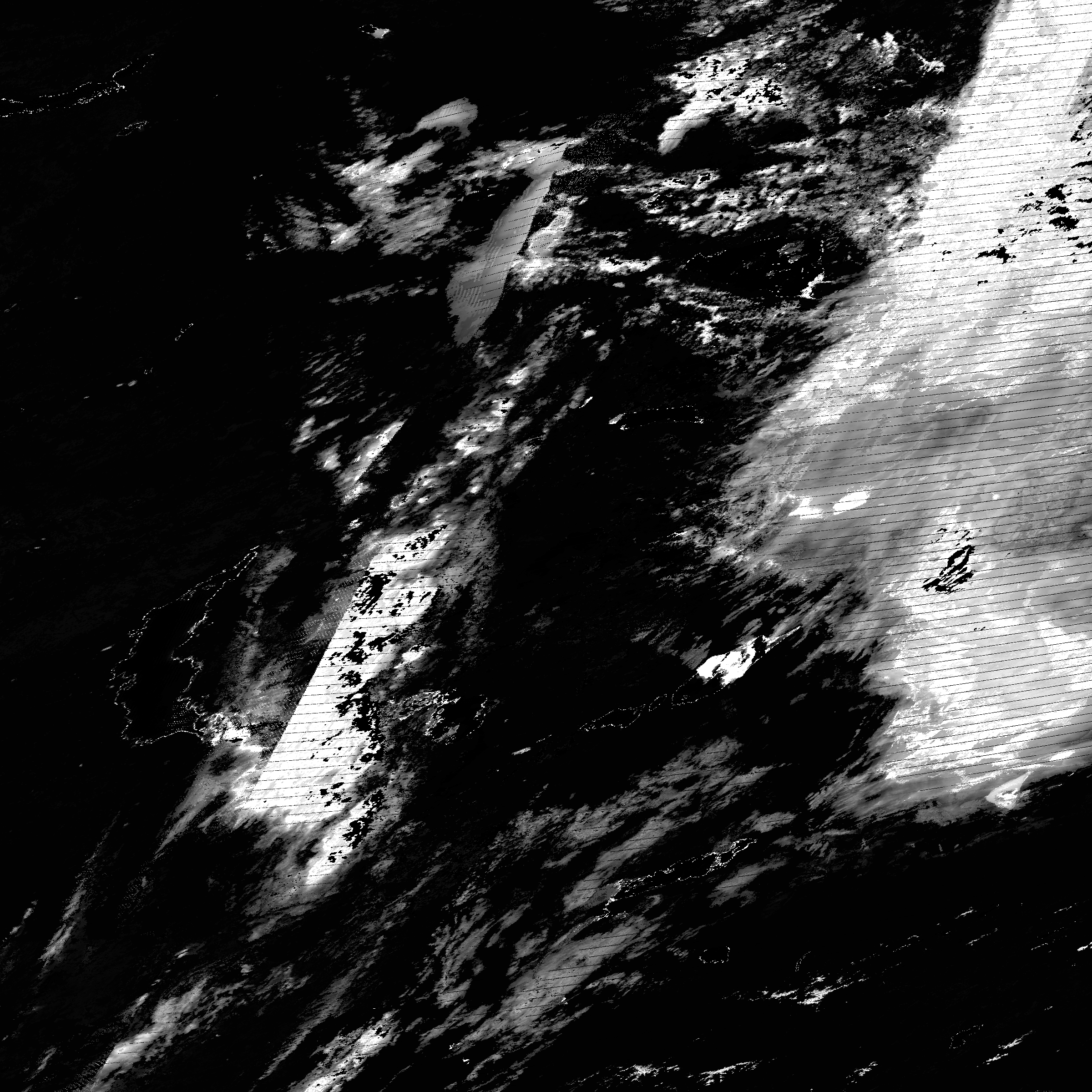

scag snow_fraction before bug fix |

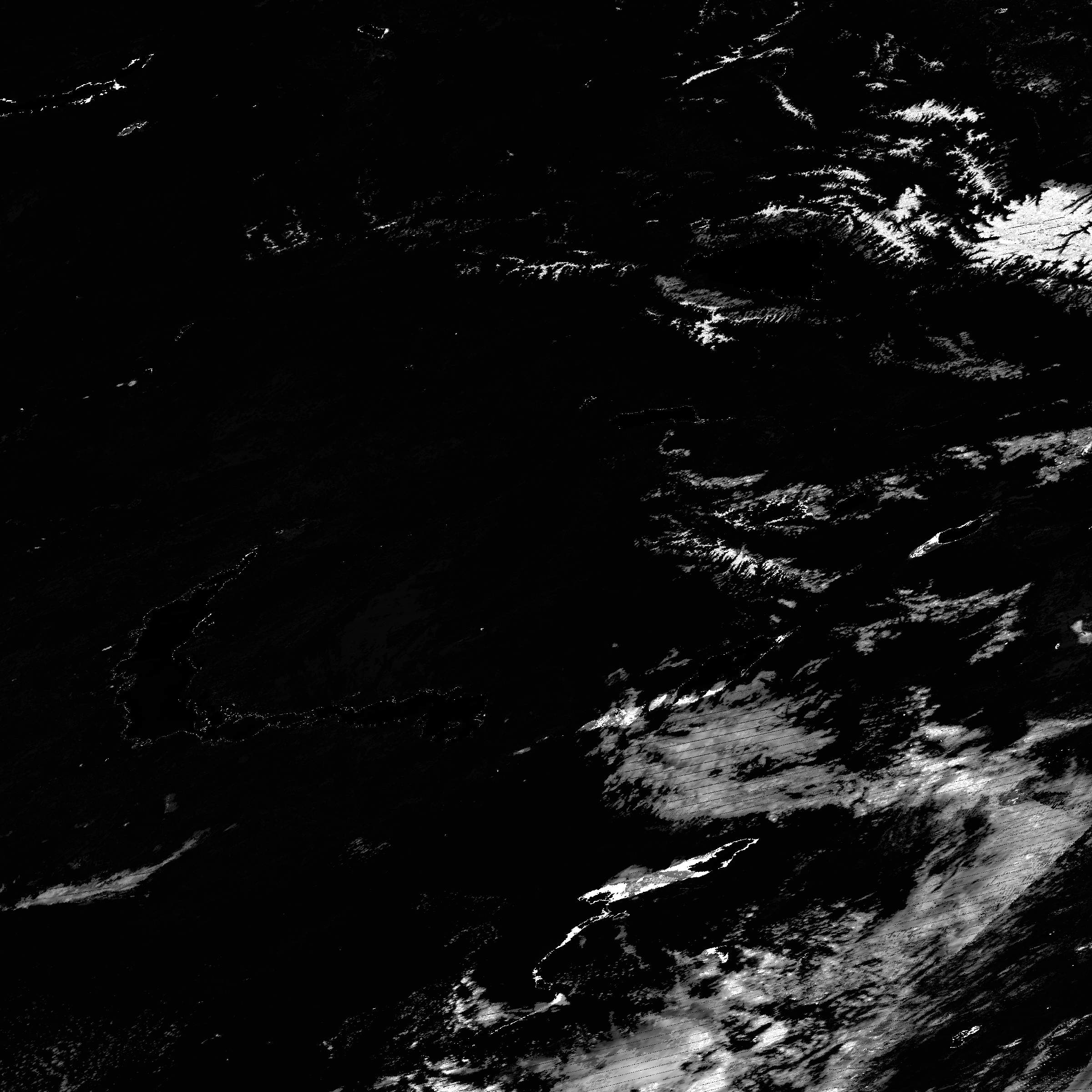

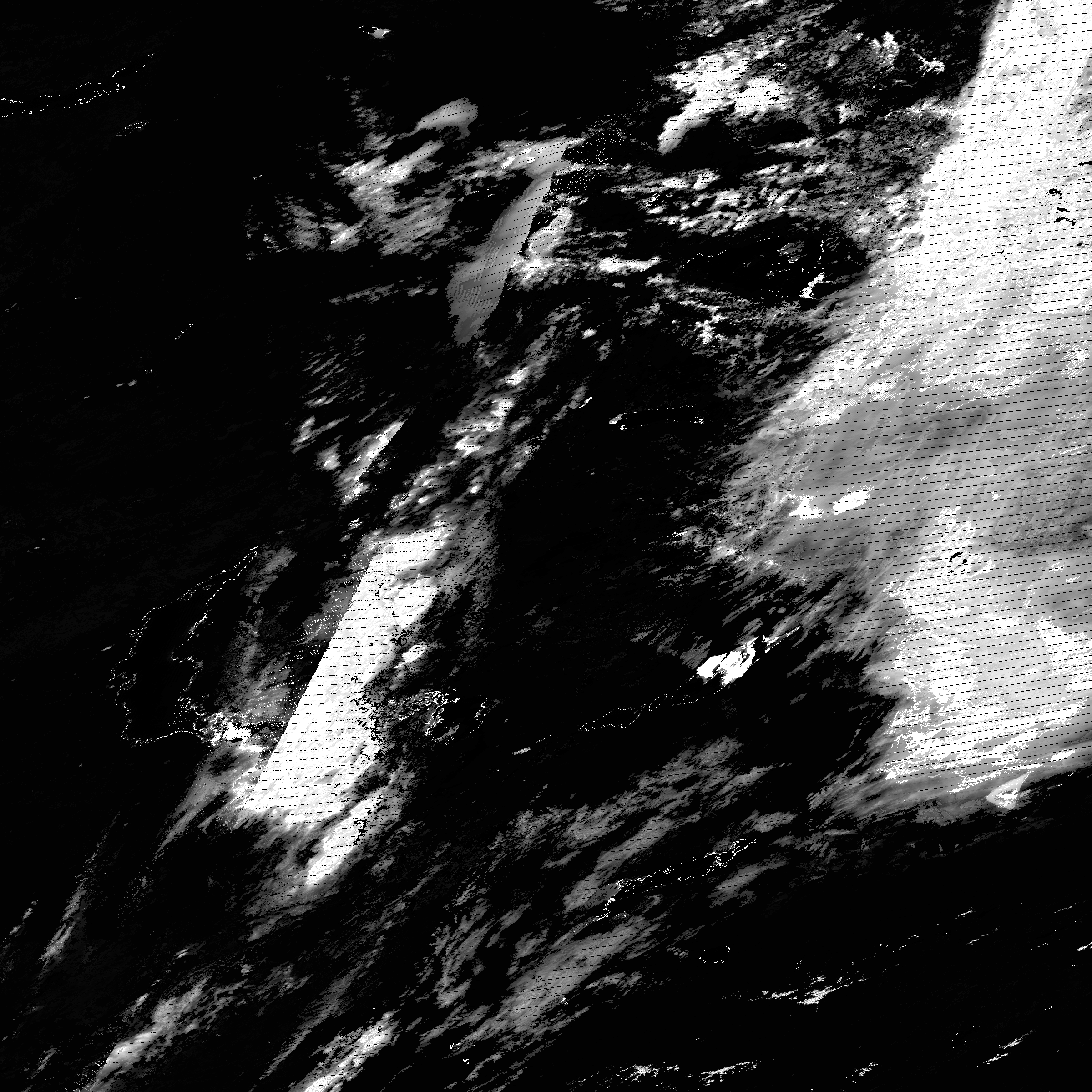

scag snow_fraction after bug fix |

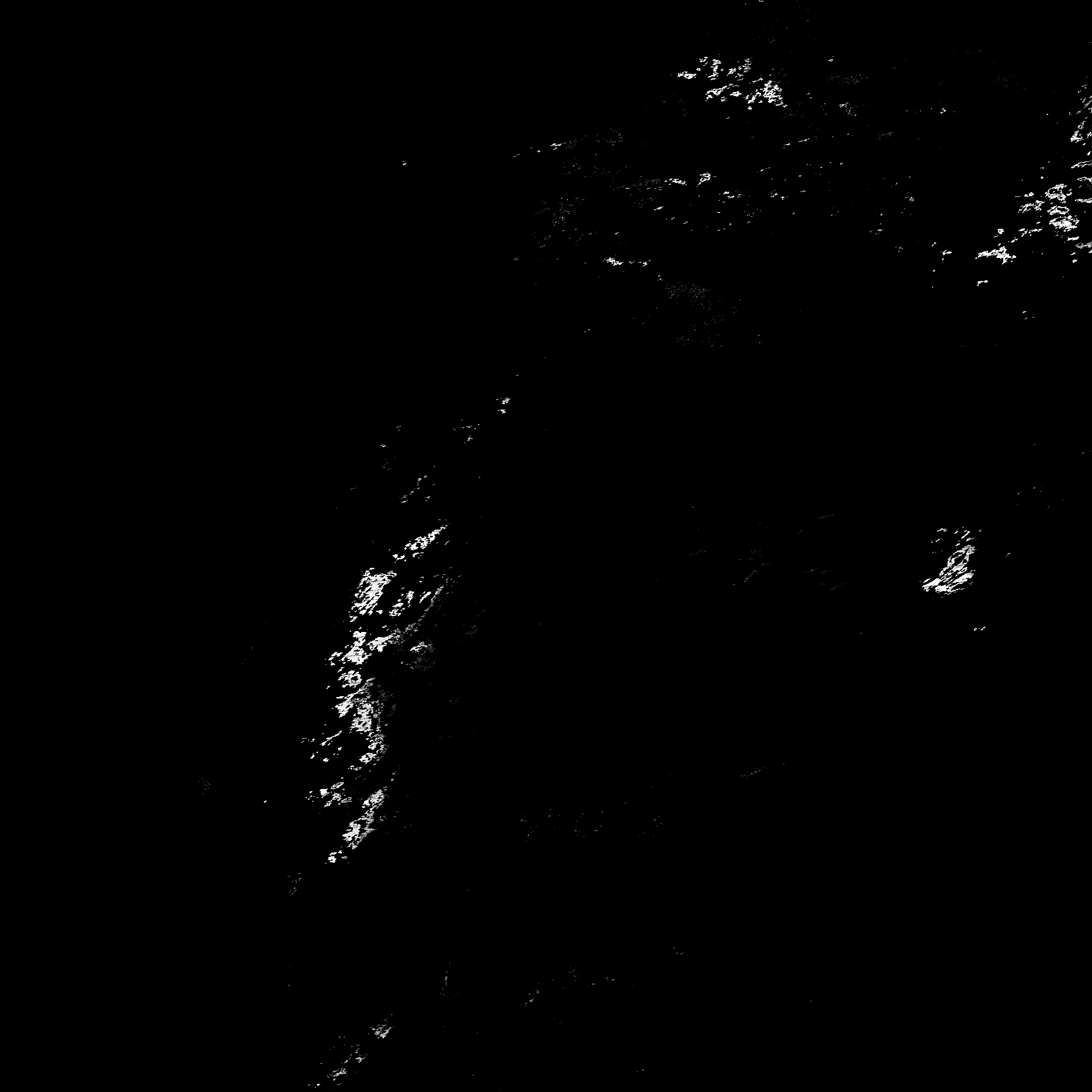

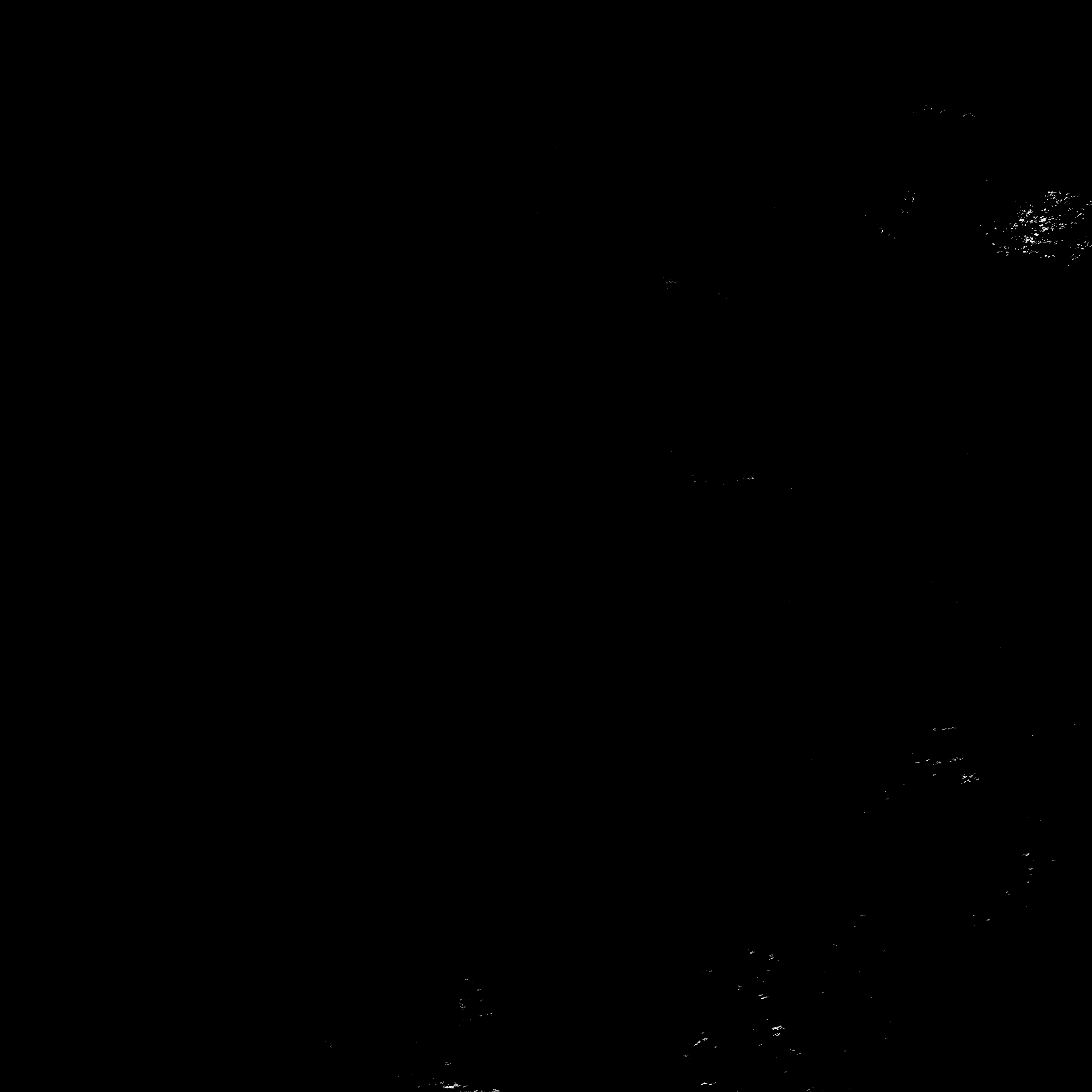

difference = | after - before | |

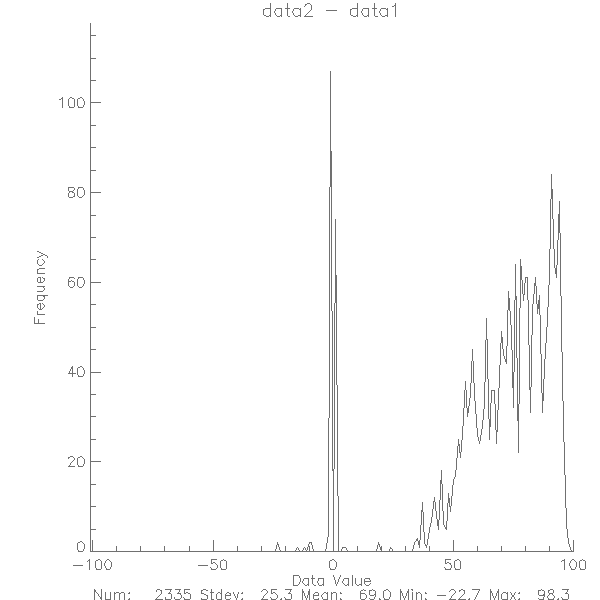

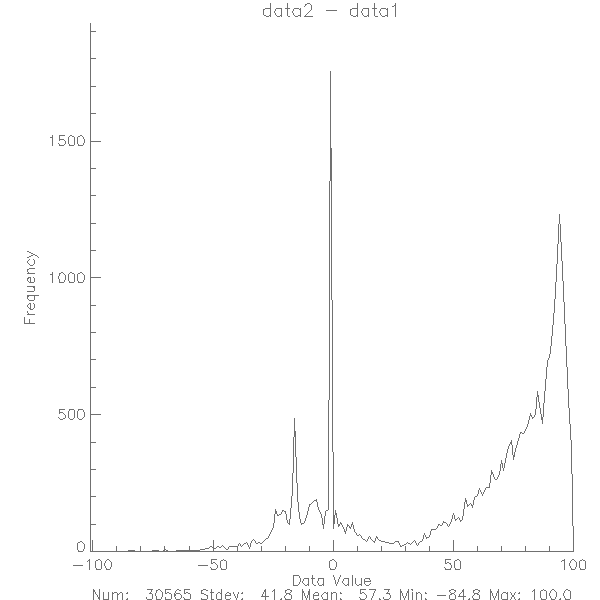

difference histogram |
| 2001-09-02 |
 |
 |
 |
 |
| 2001-09-03 |
 |
 |
 |
 |
| 2001-09-04 |
 |
 |
 |
 |
| 2001-09-05 |
 |
 |
 |
 |
M. J. Brodzik <brodzik@nsidc.org>
