| Images of Mezocentral Damage 25 April 2015
Gorkha Rupture |
 |
|
| EMS

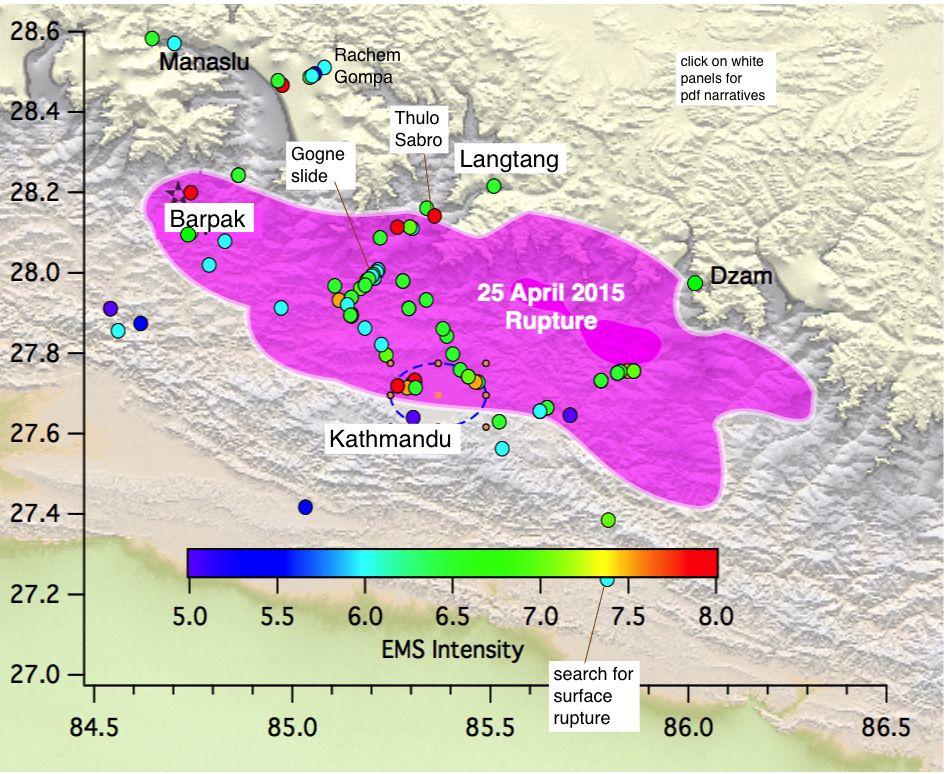

Intensities in this table have been assigned by Roger Bilham and Ellen Knappe
based on site visits or low-level helicopter overflights [6.5 signifies intensity 6 to 7]. |
| Locations
are assigned precise coordinates, but are named after the nearest
identifiable town, sometimes >1 km distant. |
| Although
the linked photographs are typical of epicentral damage the estimated EMS
values are often based on numerous additional observations. |
| In
some cases the assigned intensities have been influenced by interviews or
videos, walk-throughs, and/or evaluations of mortar quality and steel
ductility. |
| Narrative
pdf descriptions are linked to some study areas- e.g. a search for surface
rupture, the Barpak region, Thulo Sabro, the Langtang region and the Kathmandu Valley |
| Longitude |
Latitude |
EMS |
Location |
Summary of Assessment |
| 85.828 |
27.7550 |
6.5 |

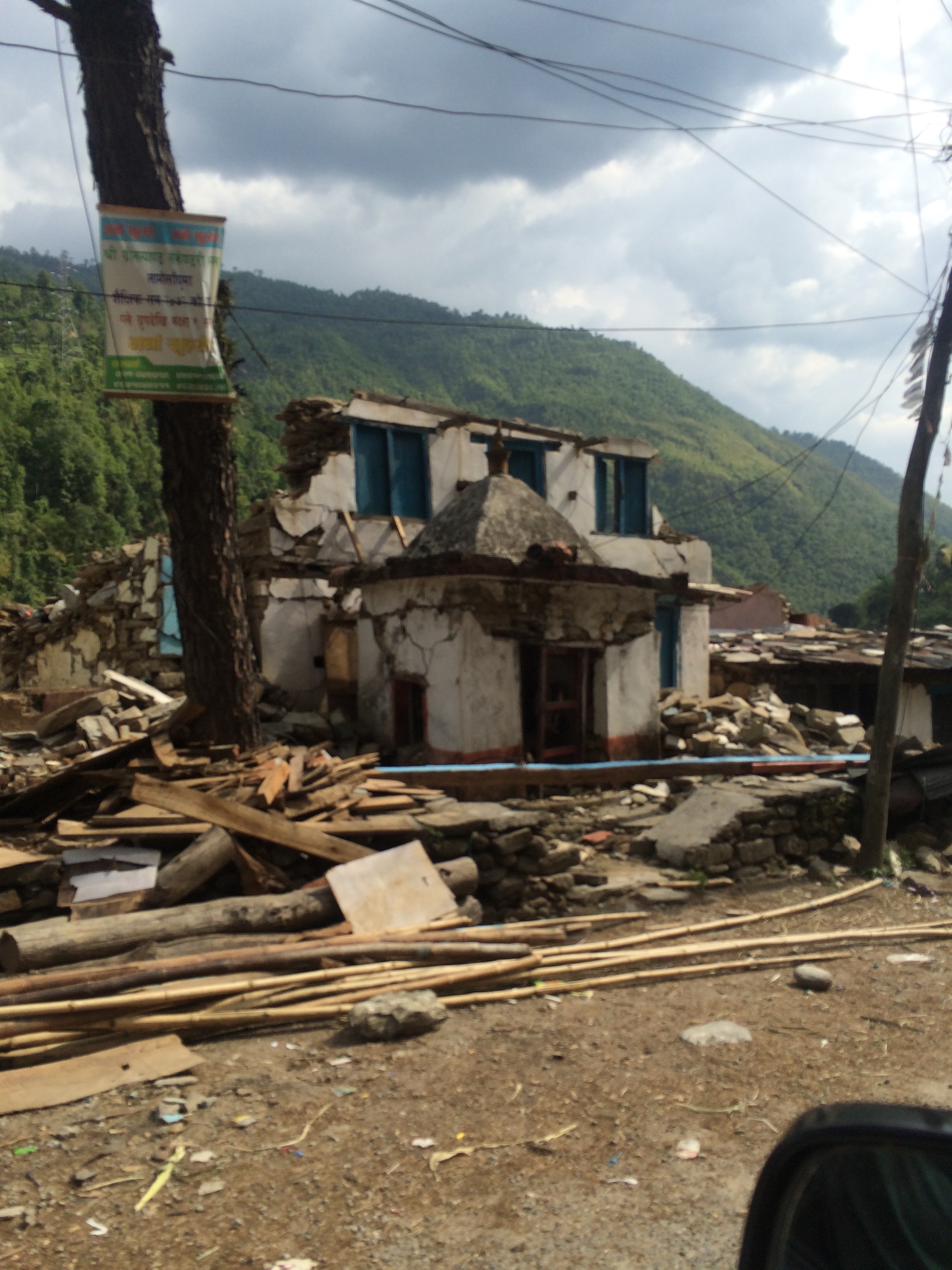

Adheri_9088 |
Grade 4 damage to masonry
structures;Reinforced Concrete( RCC) unscathed |
| 85.821 |
27.7510 |
6.5 |

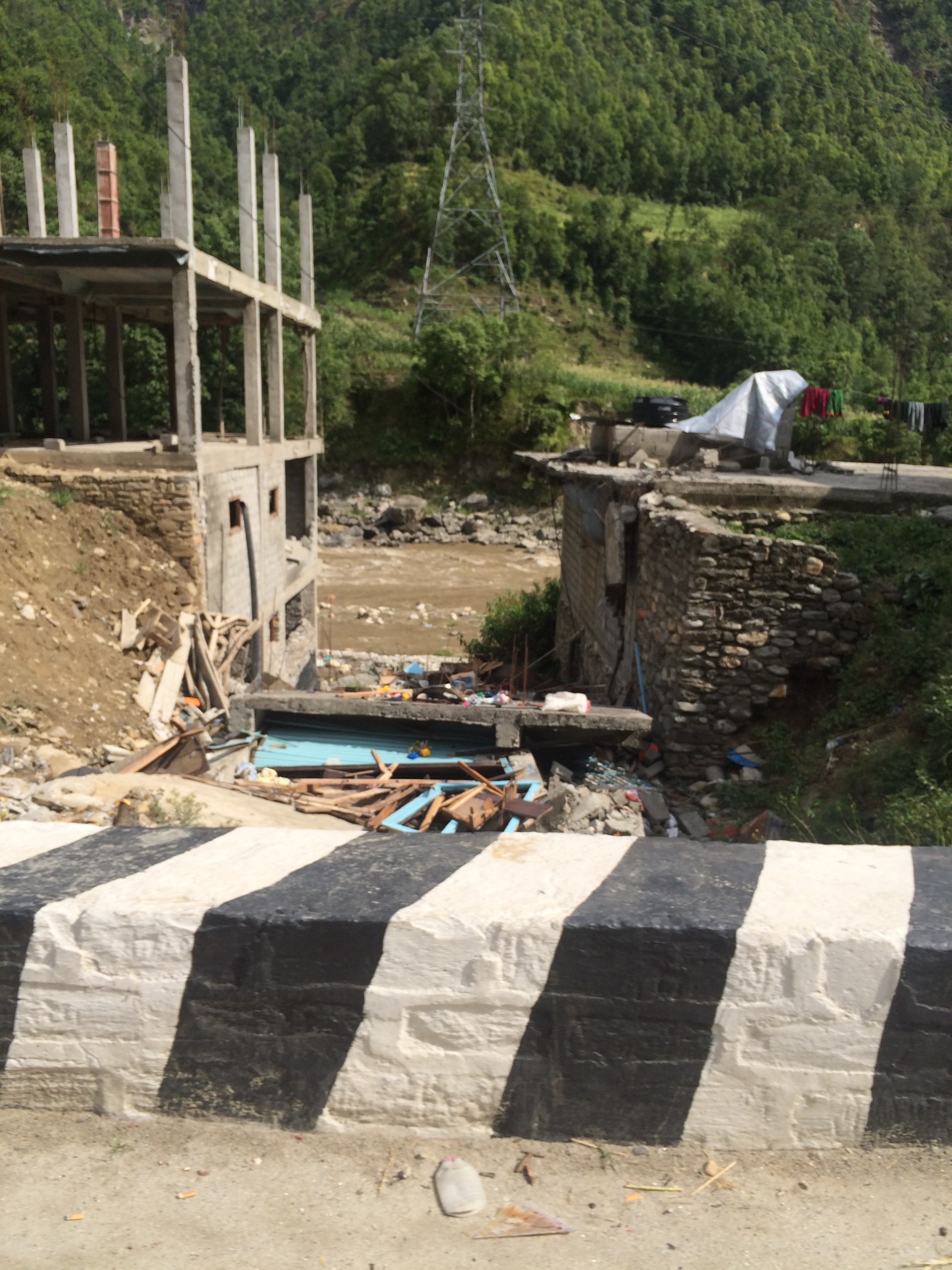

Adheri_9131 |
Grade 4 damage to masonry
structures; RCC unscathed |
| 85.779 |
27.7321 |
6.5 |

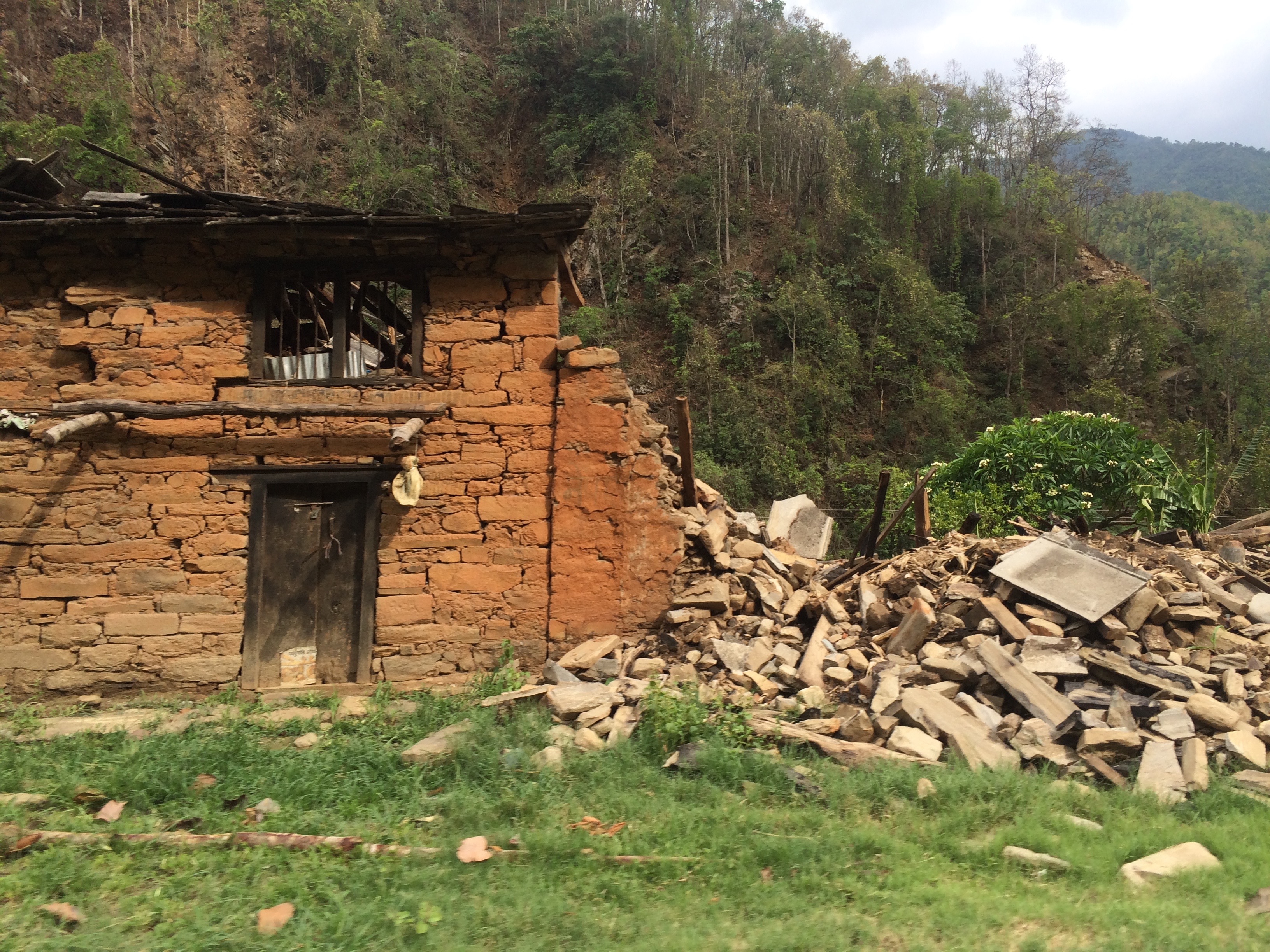

Balefi_9195 |
Grade 4 damage to masonry
structures |
| 84.744 |
28.200 |
8.0 |
Barpak foundation column failure |
Two story RCC house intact, but
all four foundation corner columns splintered & bent. Narrative description |
| 84.744 |
28.100 |
7.0 |
Barpak ridge |
total masonry collpase, damaged
pillars in base of RCC; fissure in hillside; G3 damage to RCC building; total masonry collapse. Barpak reconstruction 5 weeks after mainshock. |
| 85.149 |
27.898 |
7.0 |
Batar Bazar |
~40% of the masonry buildings
suffer Grade 3-4 damage; Reinforced Concrete (RCC) frame appear to show no
damage from a distance (less than Grade 3) |

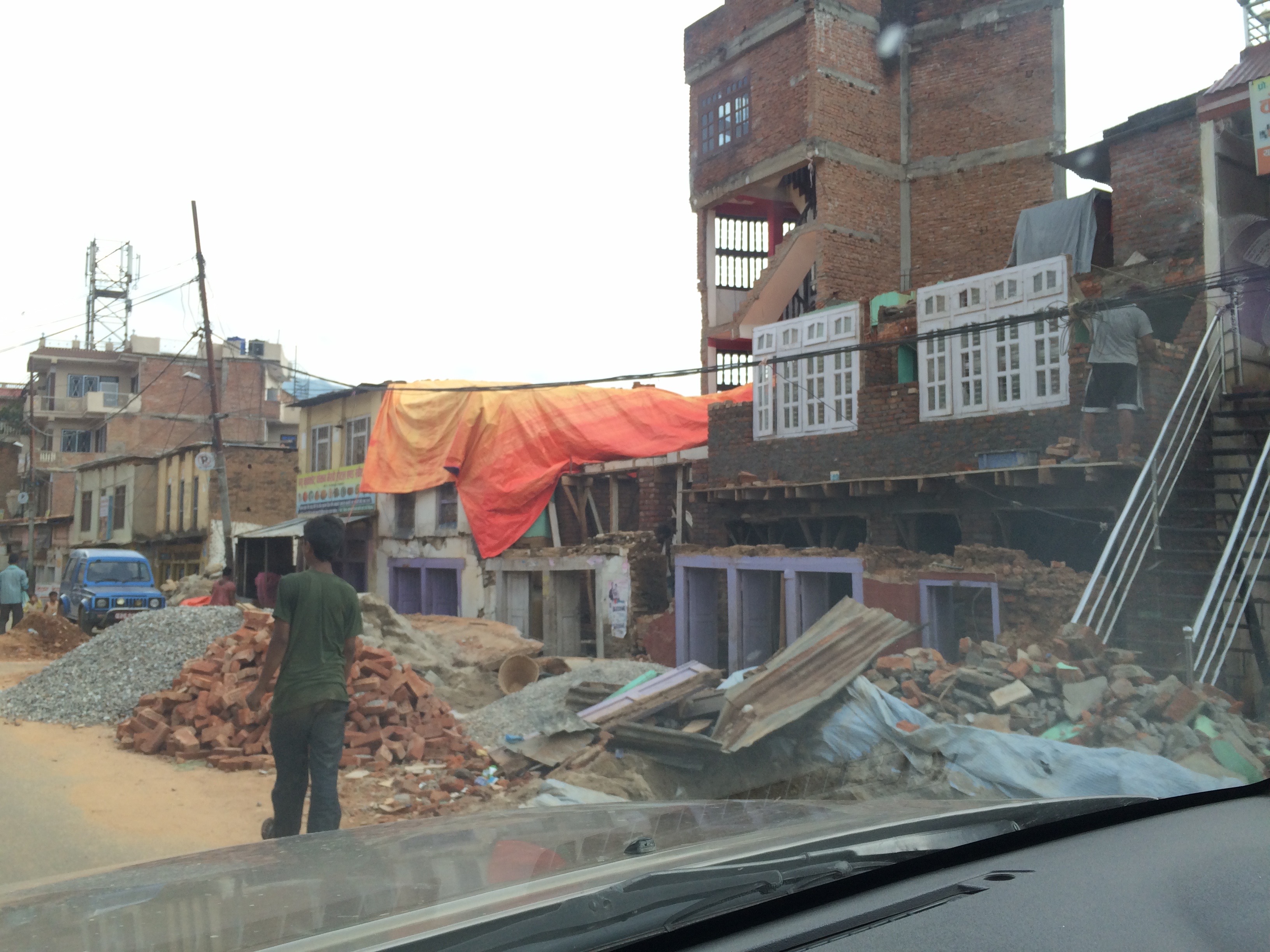

| 85.147 |
27.8947 |
6.5 |
Battar_9427 |
Grade 4 damage to masonry
structures; Grade 3 damage RCC |

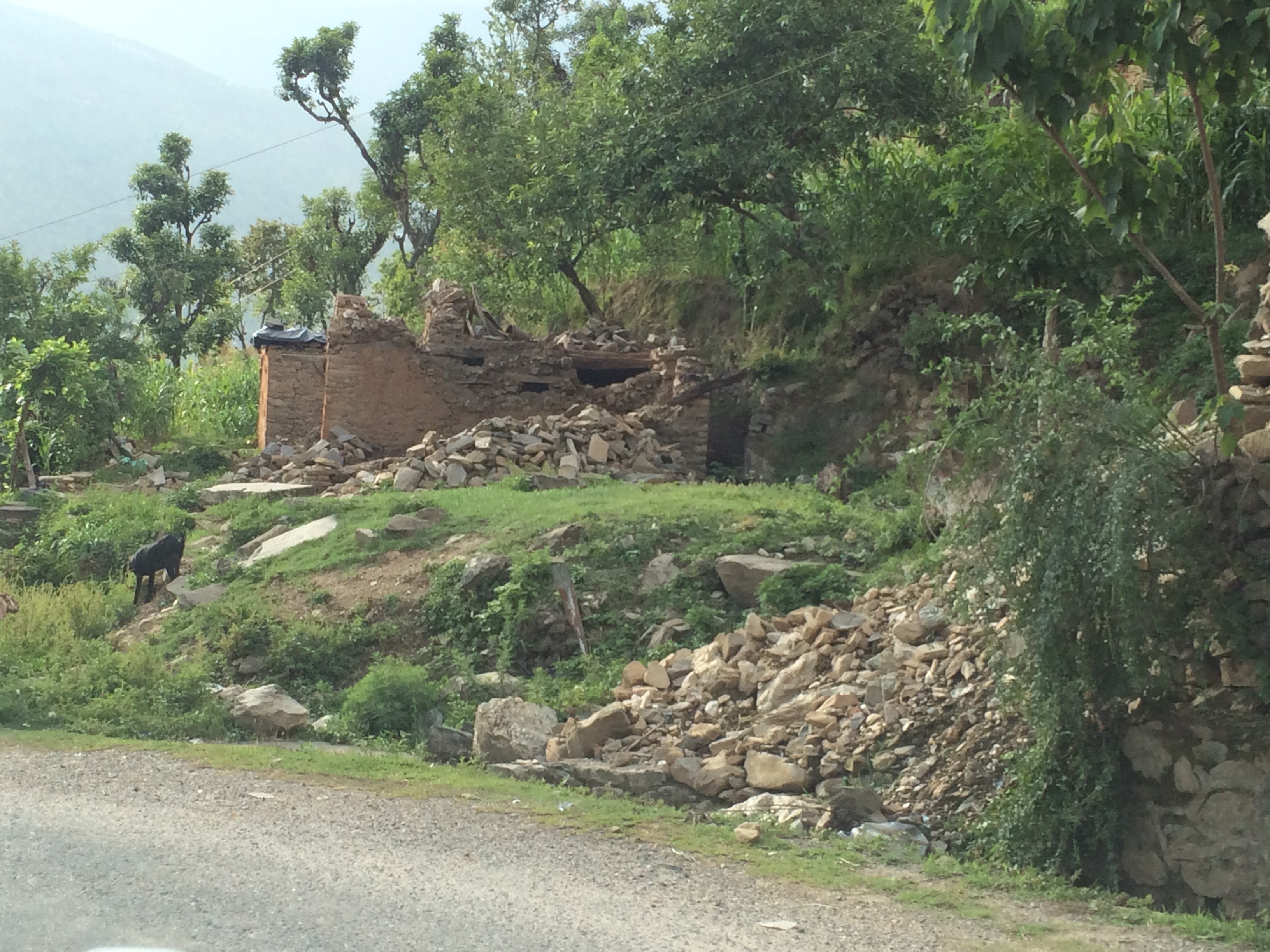

| 85.193 |
27.9845 |
6.5 |
Betrawati_9403 |
Grade 4 damage to masonry
structures |
| 85.184 |
27.9695 |
6.5 |

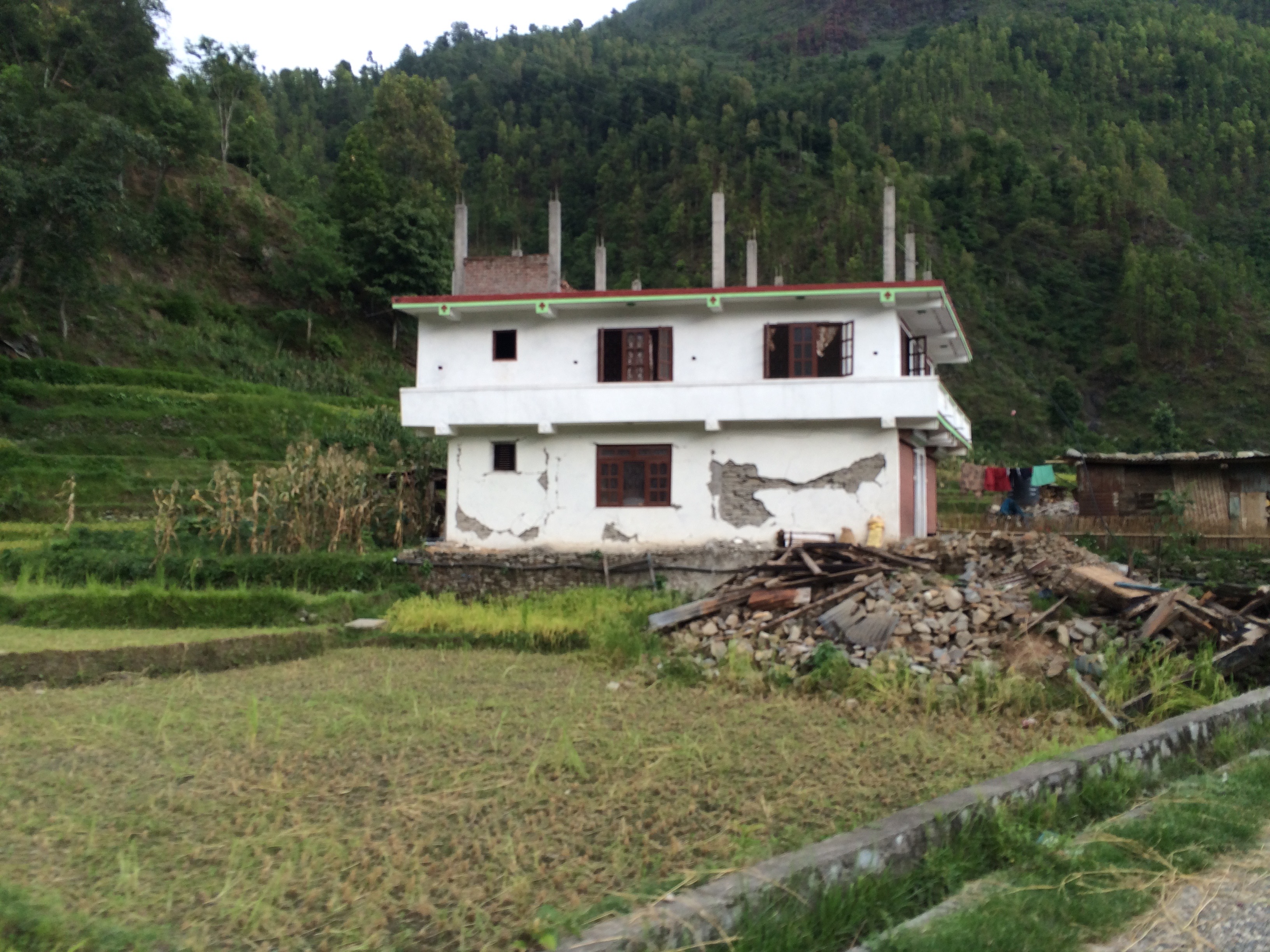

Betrawati_9420 |
Grade 4 damage to masonry
structures; Grade 3 damage RCC |
| 85.172 |
27.962 |
7.0 |
Bhaise |
Masonry buildings suffer Grade
>3 damage; RCC buildings suffer G 2 damage (Note fallen parapet and shear
cracks on ground floor) |
| 85.050 |
28.4900 |
6 |

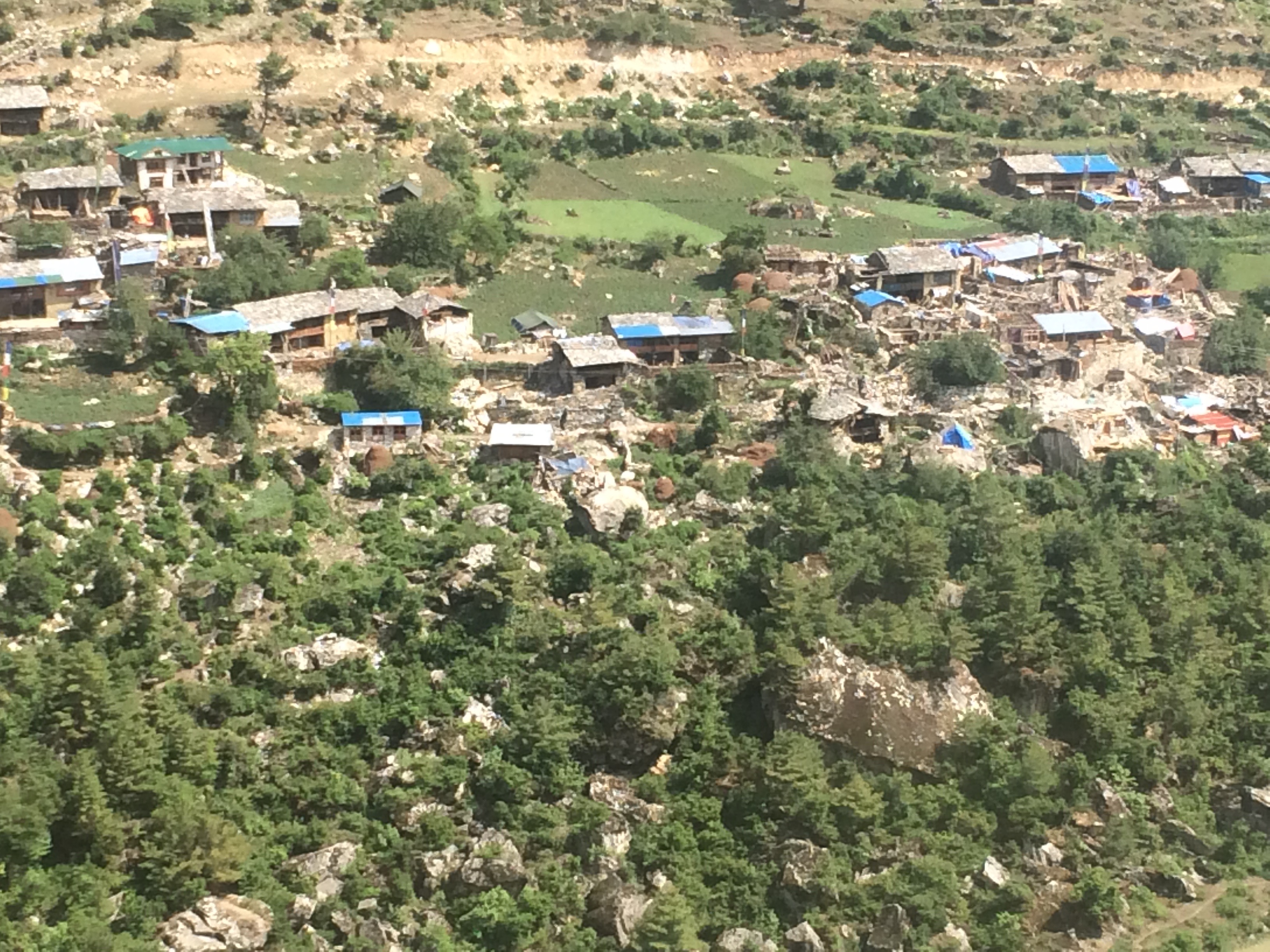

Chhokang_8097 |
Grade 4 damage to masonry
structures |
| 85.057 |
28.4950 |
5.5 |
Chhokang_8107 |
Grade 3 damage to masonry
structures |
| 85.339 |
28.161 |
6.5 |

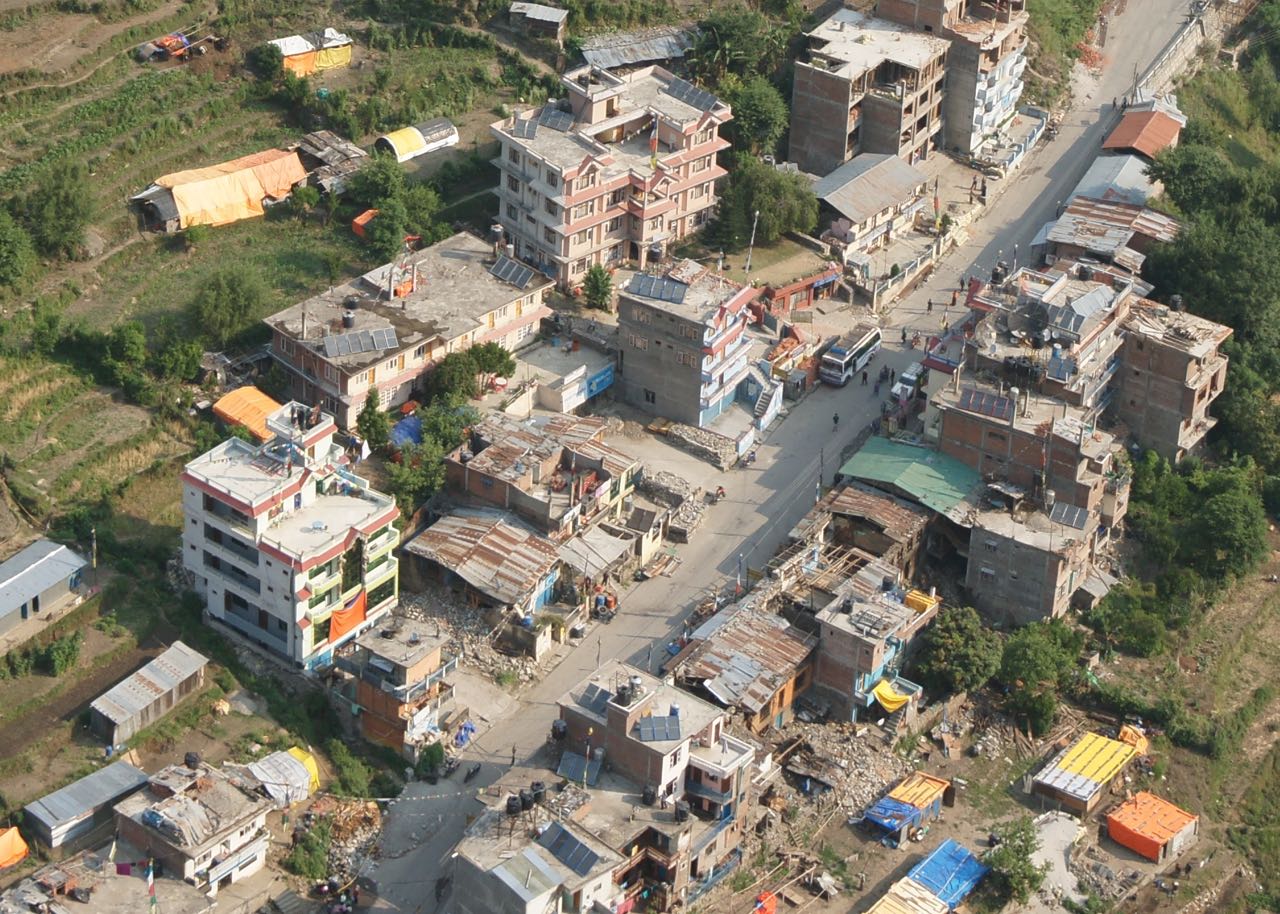

Chilime Trishuli bridge |
Masonry buildings suffer Grade
3-4 damage; RCC buildings largely unaffected but some parapets dislodged
(Grade 1-2) |
| 85.044 |
28.487 |
7.0 |
Chokang Paro |
Most masonry buildings (>70%)
suffer Grade 4 damage |

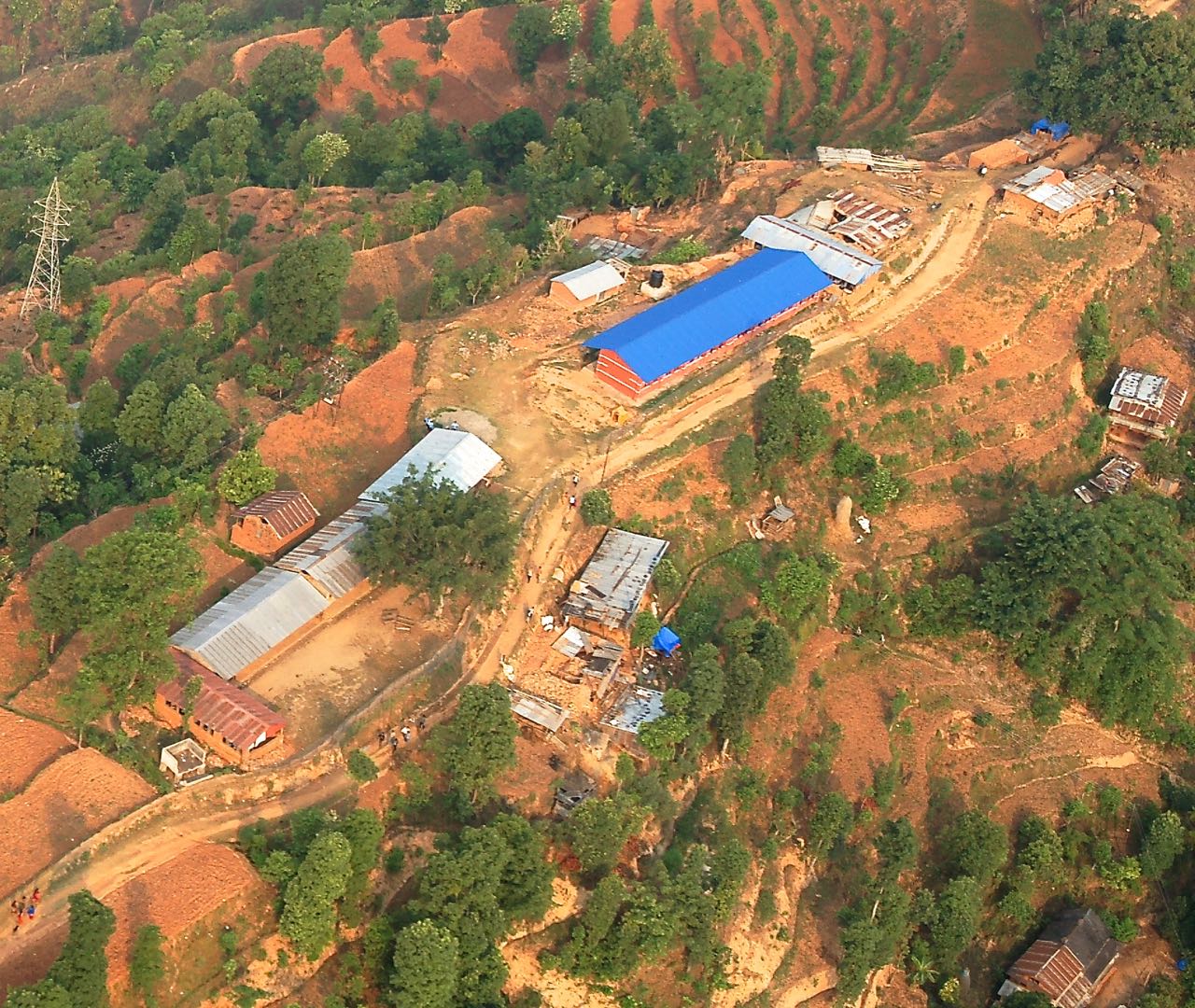

| 85.183 |
27.863 |
6.0 |
Deorali |
A few masonry buildings suffer
Grade 4 damage; masonry buildings with lintel bands still standing |

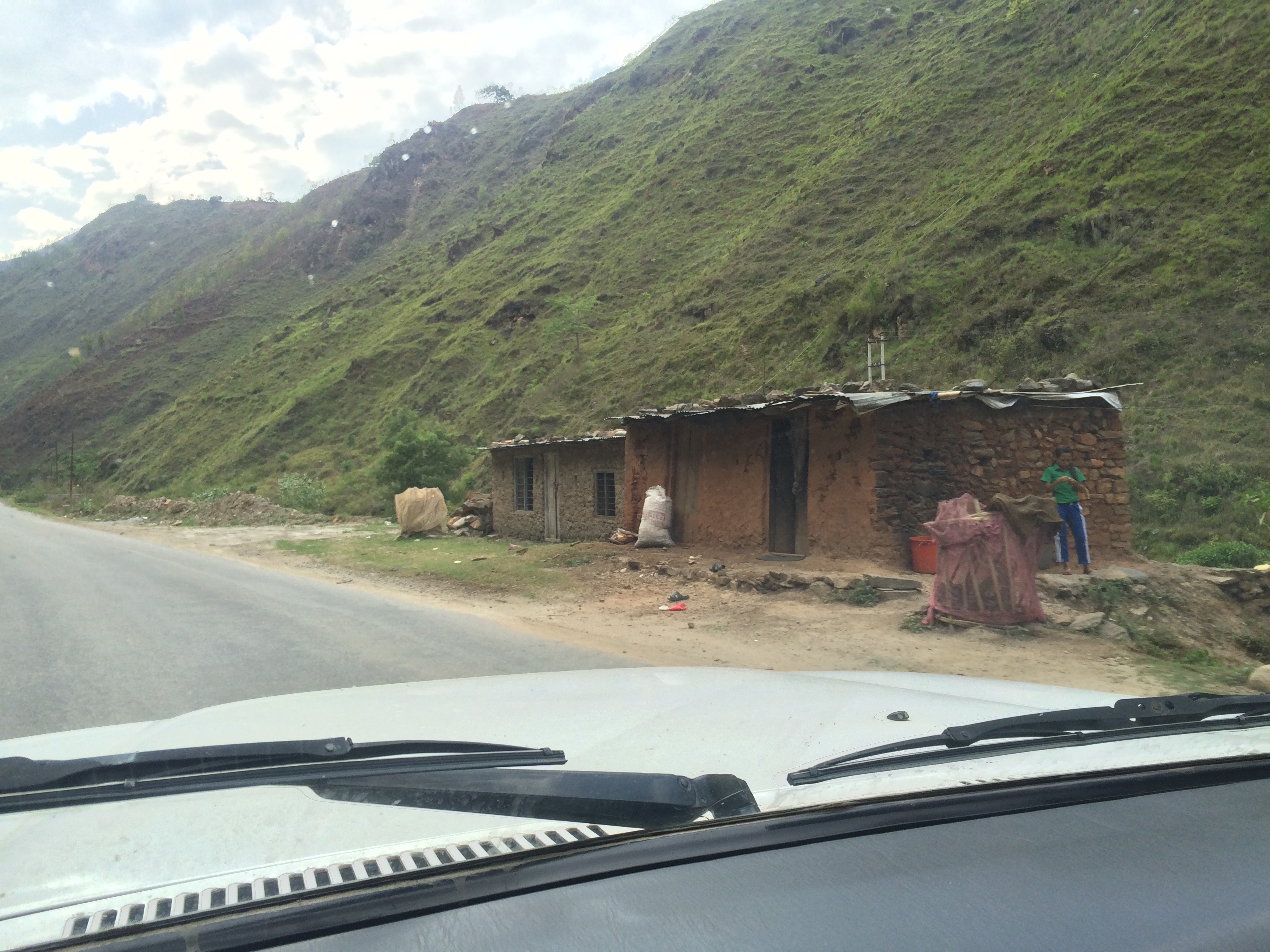

| 85.701 |
27.6460 |
5 |
Dologhat_9204 |
Grade 3 damage to masonry
structure |
| 85.303 |
28.111 |
6.0 |
Dunche New town |
Masonry buildings suffer Grade
3-4 damage; Dozenes of RCC
buildings undamaged |

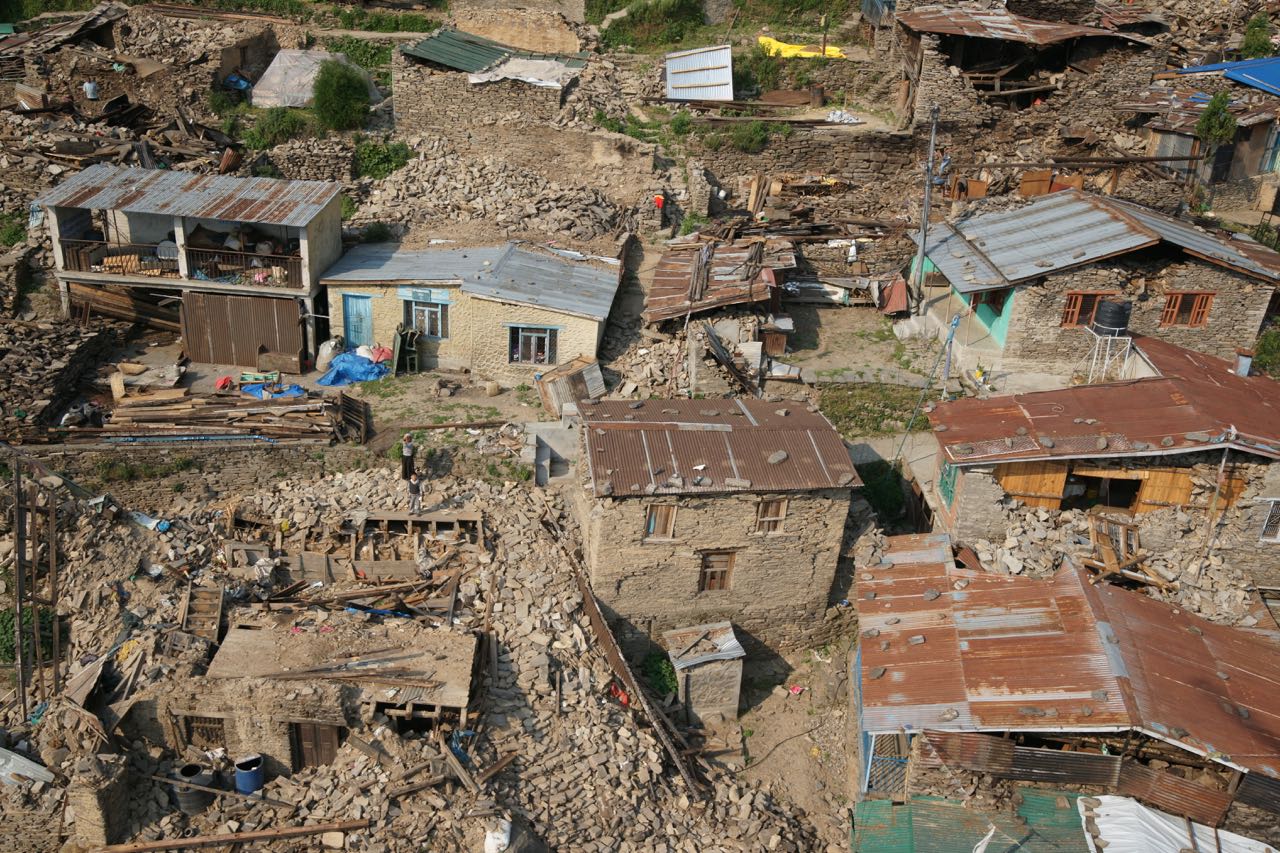

| 85.297 |
28.114 |
7.0 |
Dunche Old town |
Grade 4 damage to older stone
masonry buildings; cladding of some stone walls dislodged; RCC and well
constructed stone masonry buildings undamaged |

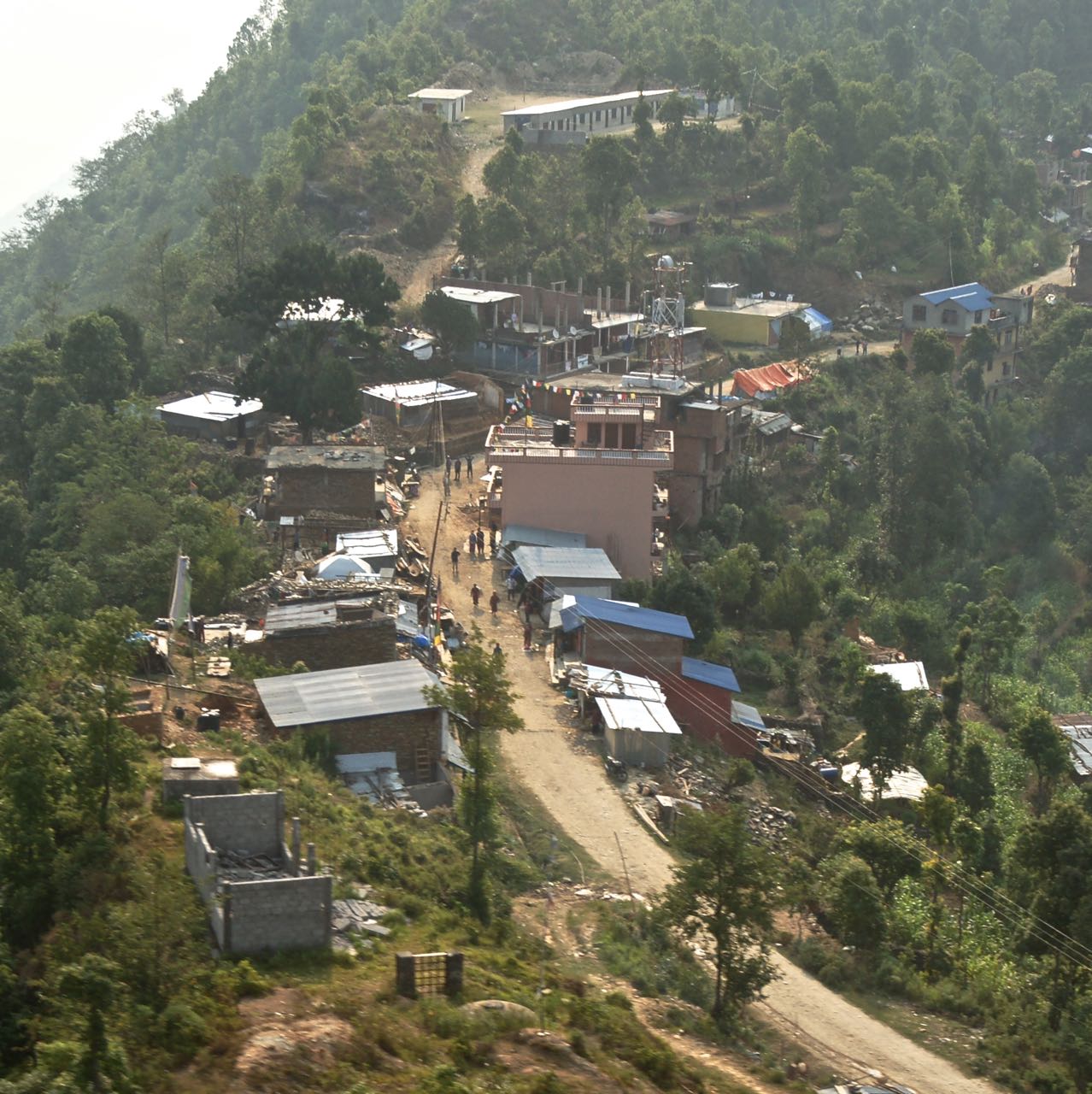

| 85.107 |
27.968 |
6.5 |
Ghabran |
RCC buildings along 3 km ridge
with no visible evidence for damage;
masonry and cement block structures collapsed or ruined. |

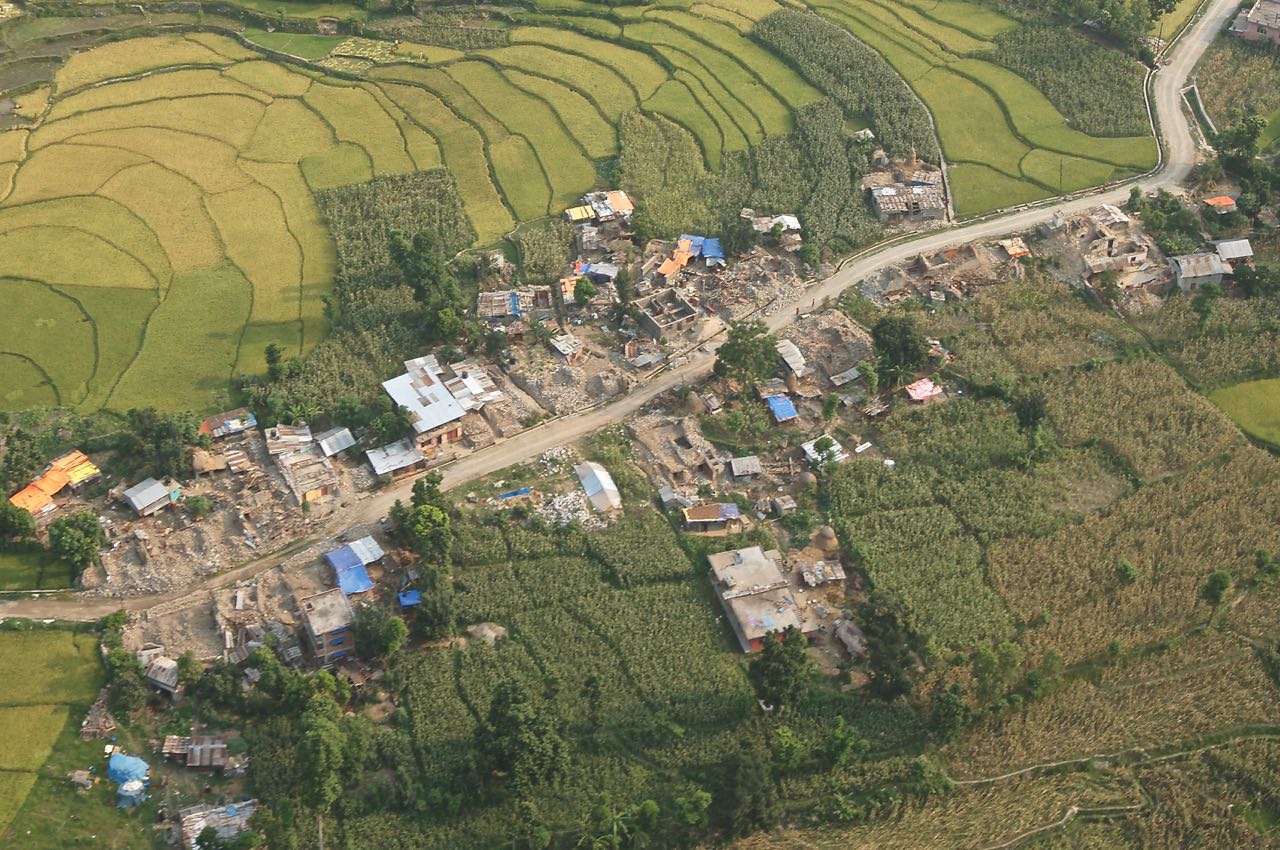

| 85.118 |
27.932 |
7.5 |
Goddhunga |
Many masonry buildings suffer
Grade 4 or higher damage; newer masonry building with lintel bands under
construction undamaged; singular RCC structure appears undamaged |

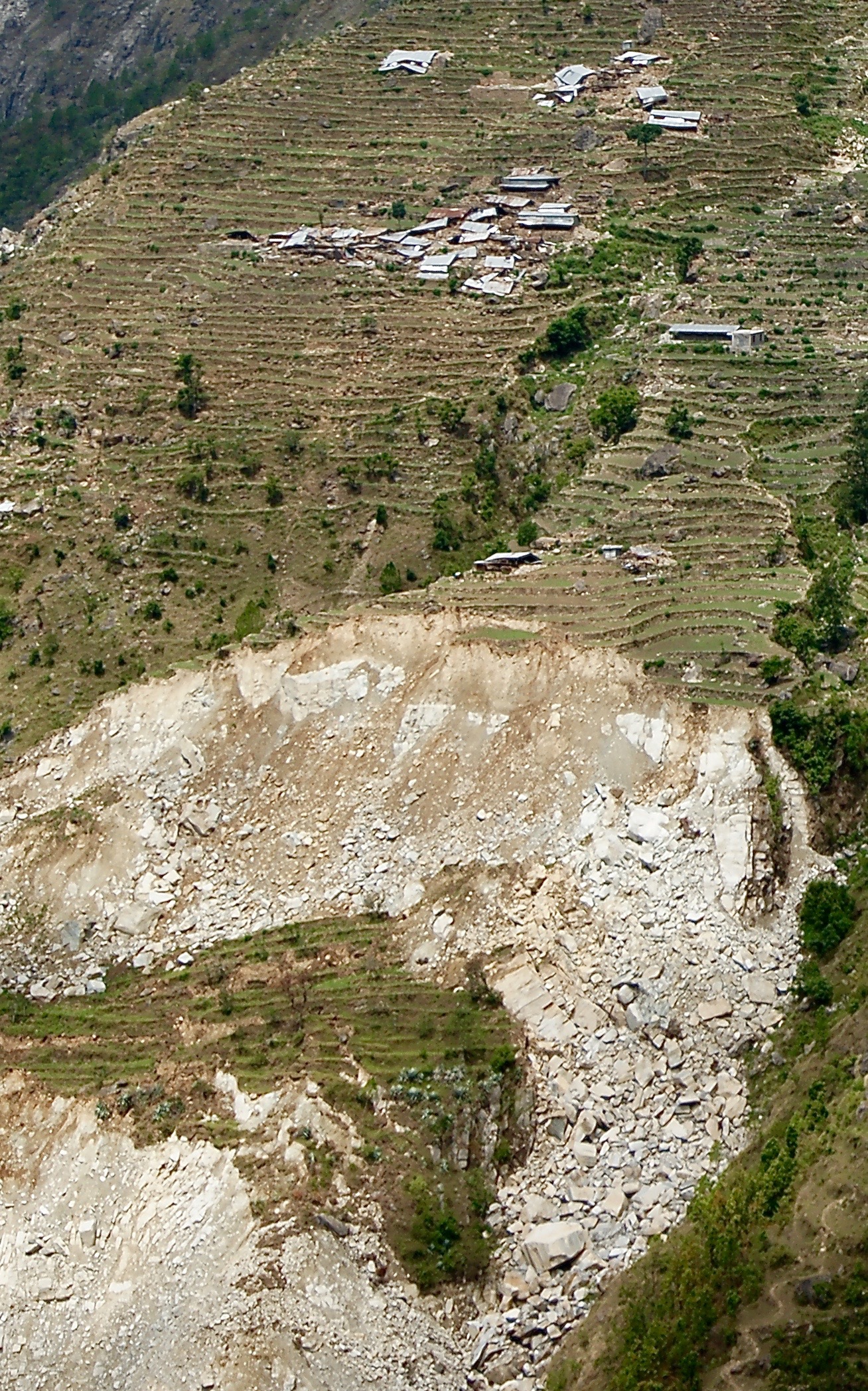

| 85.2222 |
28.0875 |
6.5 |
Gogne |
Village above hillside slump; major masonry collapse; well
built masonry OK |
| 85.265 |
28.114 |
8.0 |

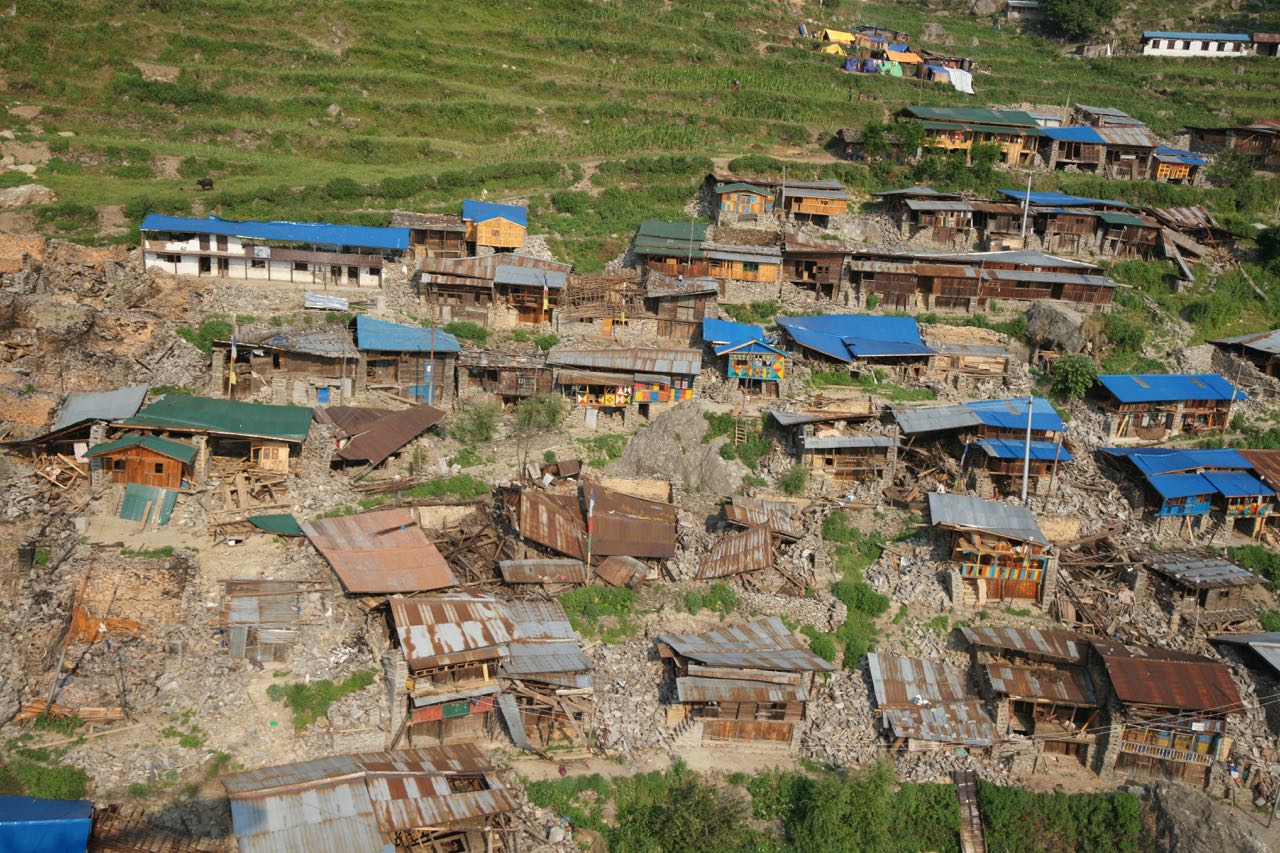

Haku |
Some masonry and timber frame
buildings suffer Grade 5; many of the same type of structures suffer Grade 4
damage |
| 85.033 |
27.417 |
5.5 |
Hetauda |
4 destroyed buildings and
Å20 damaged buildings. Most of
city unharmed. No site visit. |

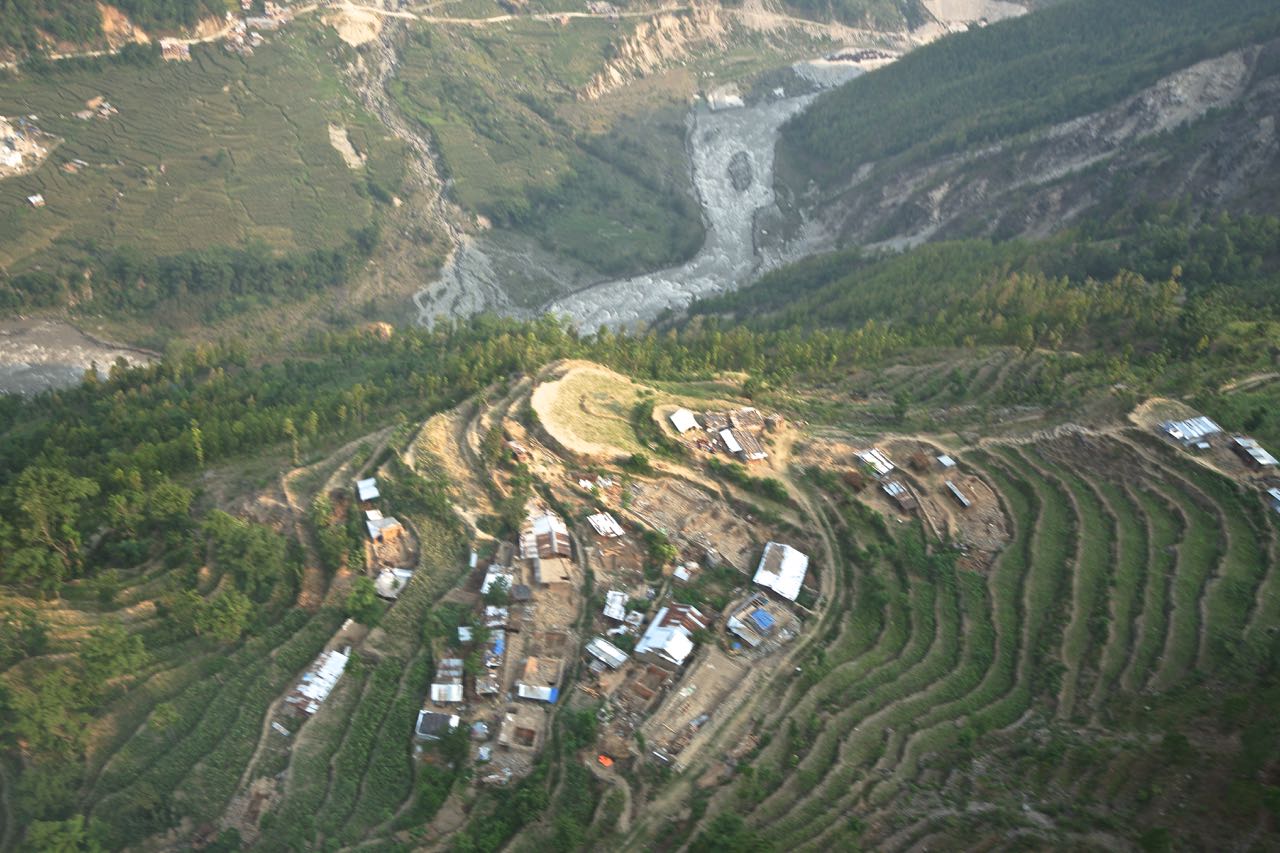

| 85.188 |
27.981 |
6.5 |
Kalikasthan Ridge |
Grade 4-5 damage to masonry
buildings; RCC buildings unscathed |
| 85.216 |
28.0079 |
6 |

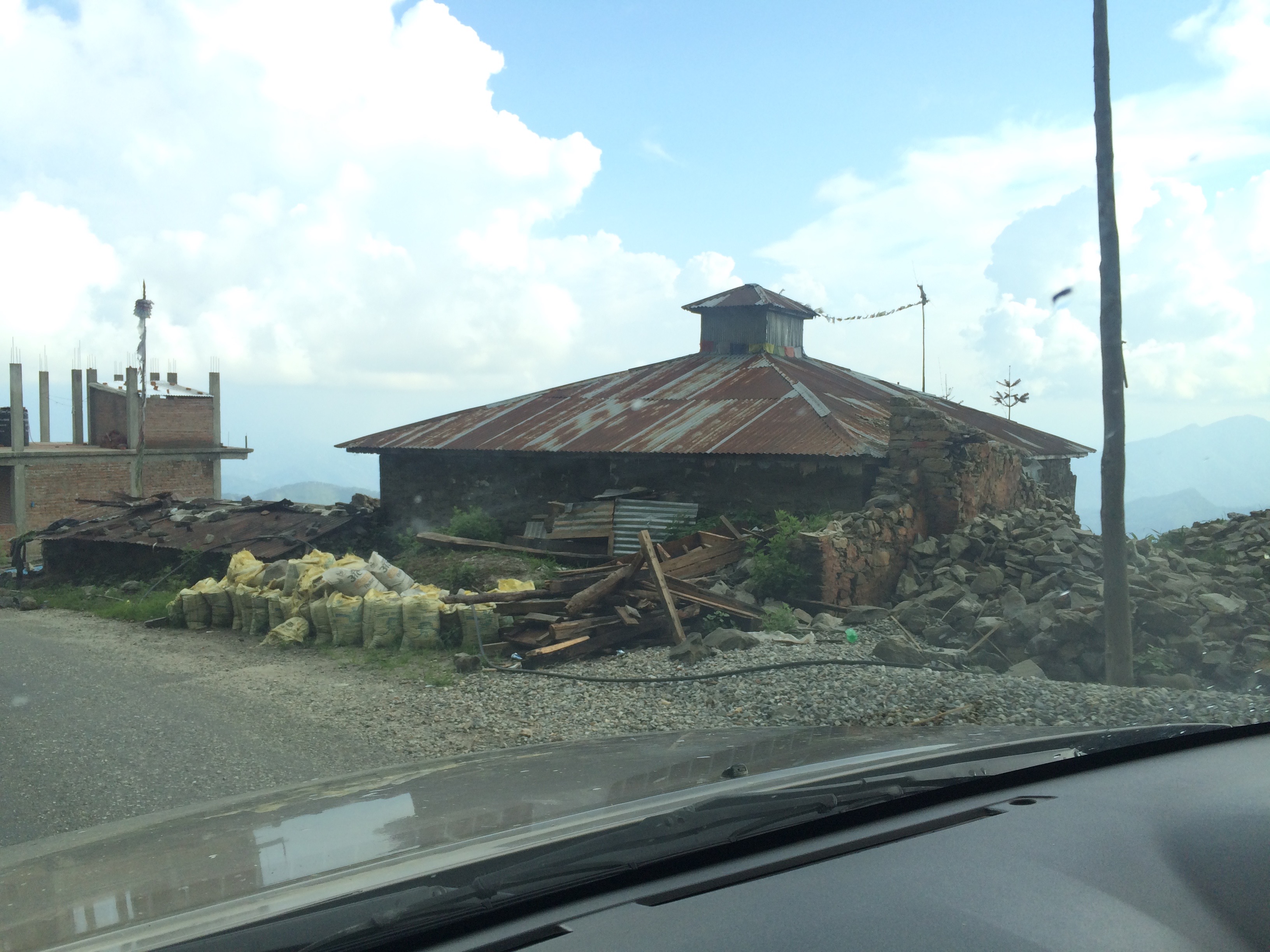

Kalikasthan_9350 |
Grade 3 damage to masonry
structures |

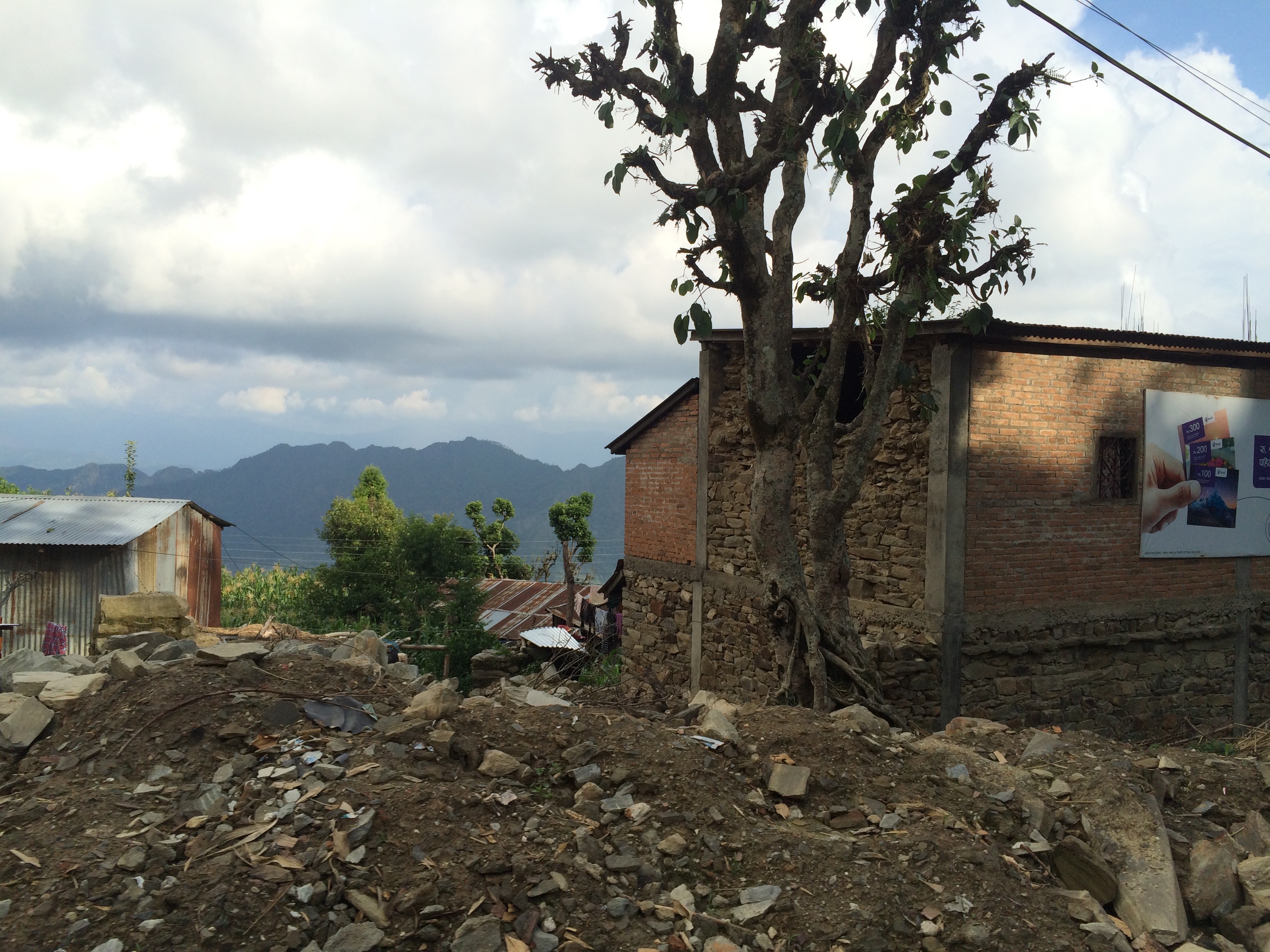

| 85.213 |
28.0021 |
6 |
Kalikasthan_9367 |
Grade 4 damage to masonry
structures |

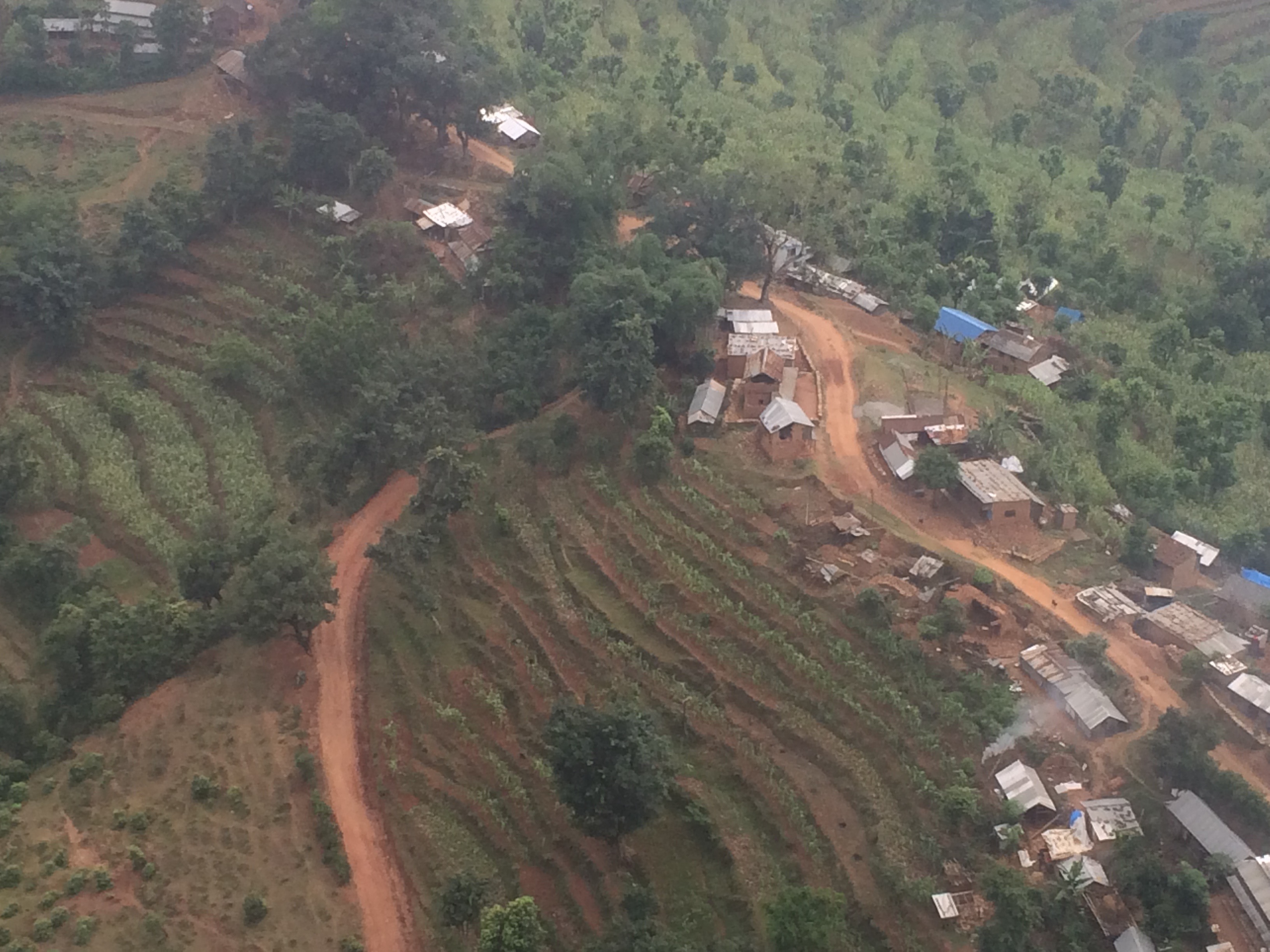

| 84.790 |
28.0200 |
6 |
Kalyantar_8002 |
Grade 3 damage to masonry
structures |
| 85.303 |
27.725 |
7 |

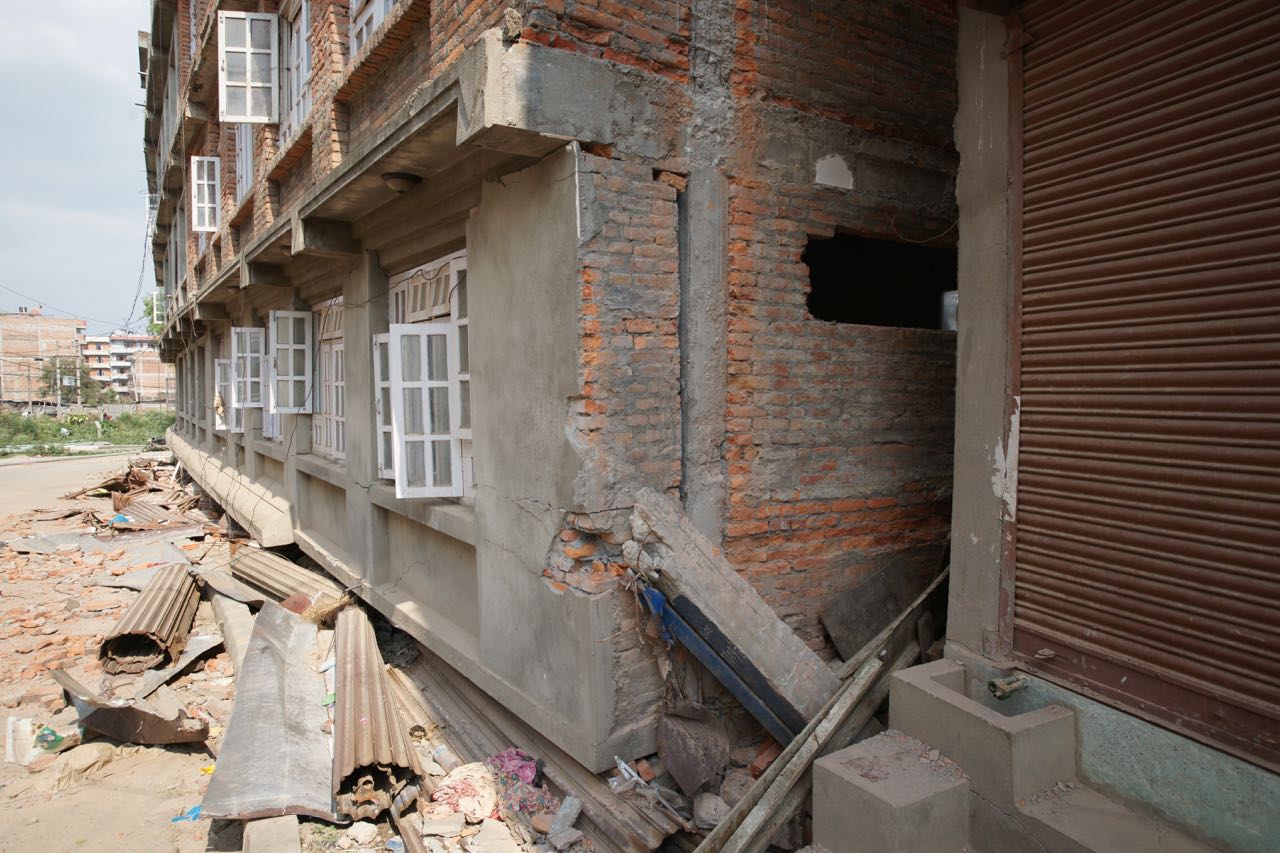

Kathmandu =
Jagriti |
Soft lower story RCC collapse to a dozen buildings on raised ground west of the river. |
| 85.522 |
27.630 |
6.5 |
Kathmandu = Banepa |
Rubble/mud structures
collapsed. RCC unscathed. Site visit -no photos. |
| 85.305 |
27.640 |
5.0 |
Kathmandu = Khadkagoan |
Objects in house fell over. Pond
sloshes over floor. No damage to
buildings |
| 85.309 |
27.729 |
6 |

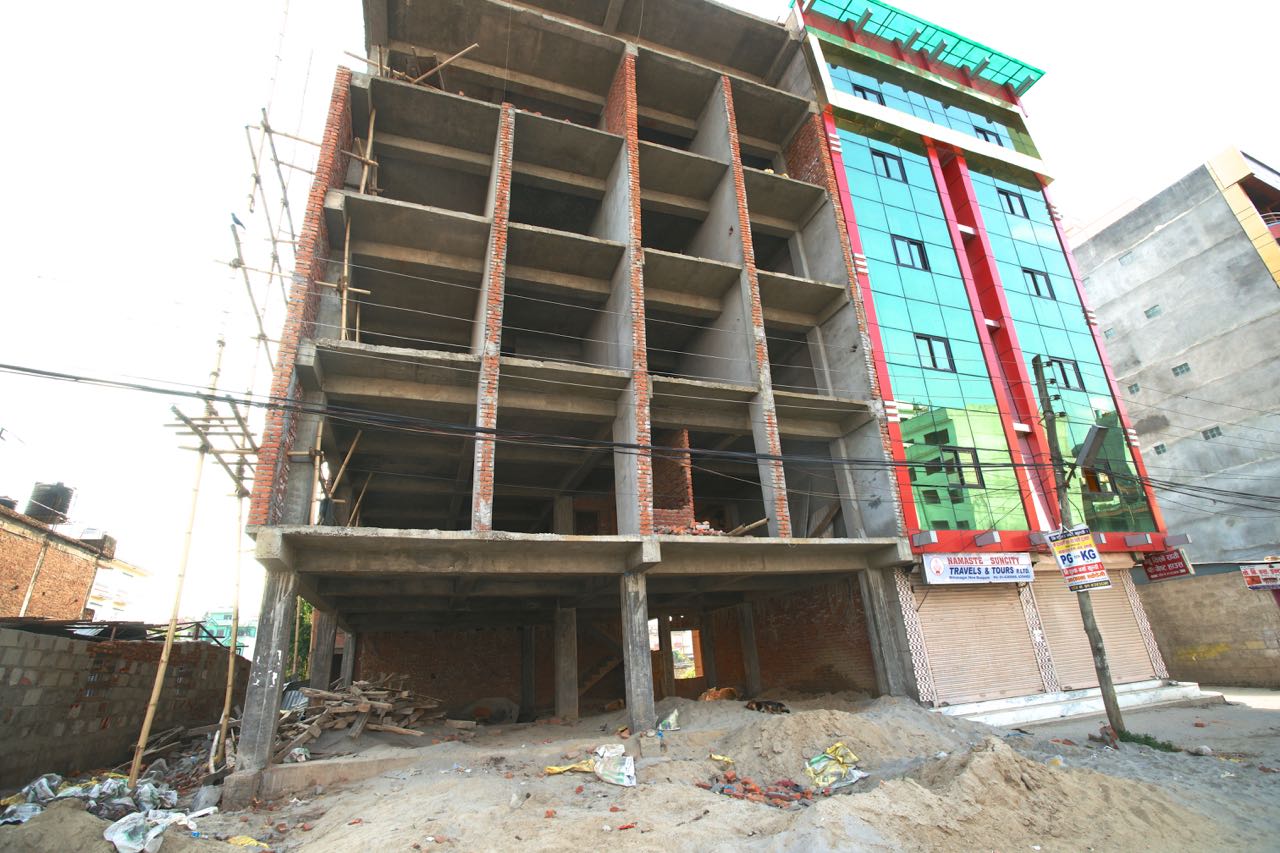

Kathmandu = Mhaipi |
Near bus station 200m south of 2789; undamaged RCC frame
near significant RCC collapse |

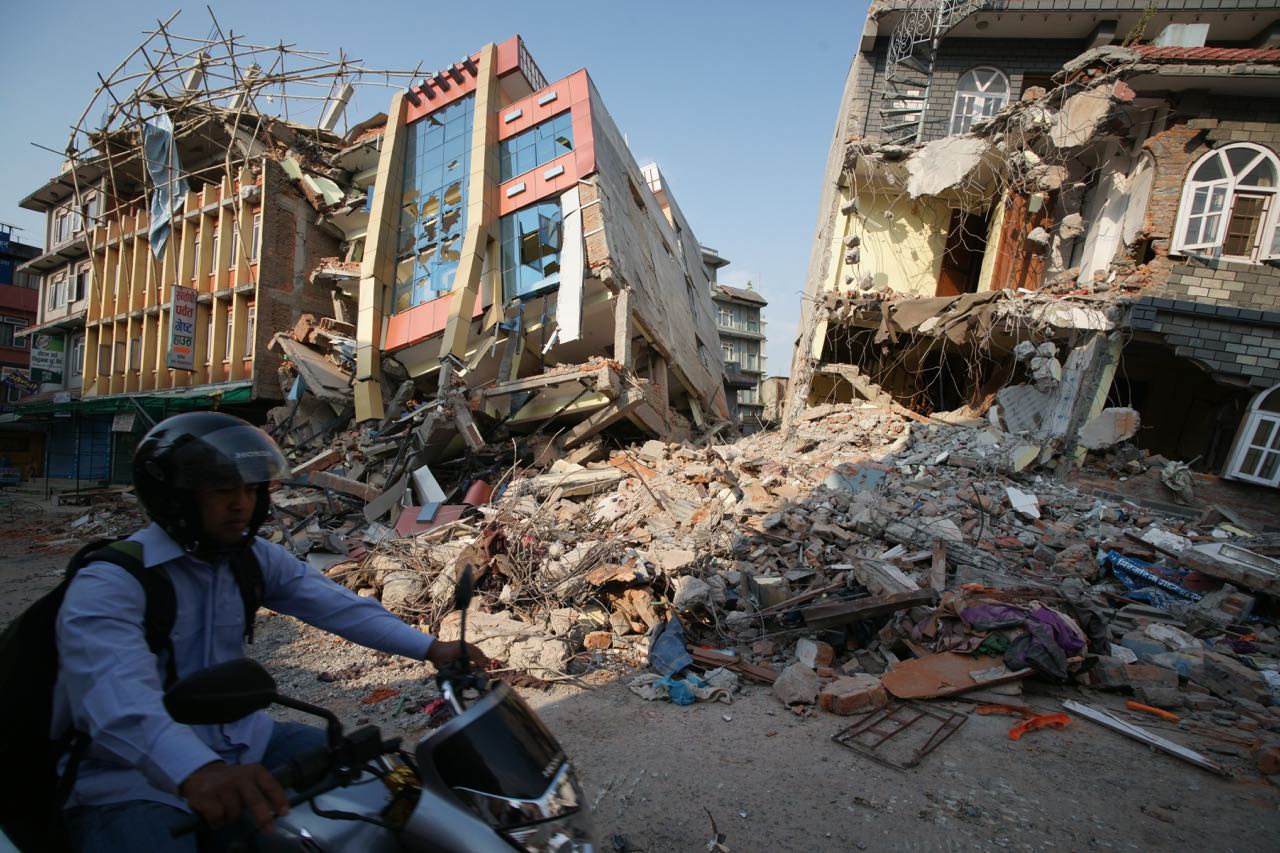

| 85.309 |
27.733 |
8 |
Kathmandu = Mitranagar Sadak |
Near bus station: reputed former swamp: severe damage to RCC
in aftershock; 200 m north of 2788 |
| 85.469 |
27.728 |
6.5 |

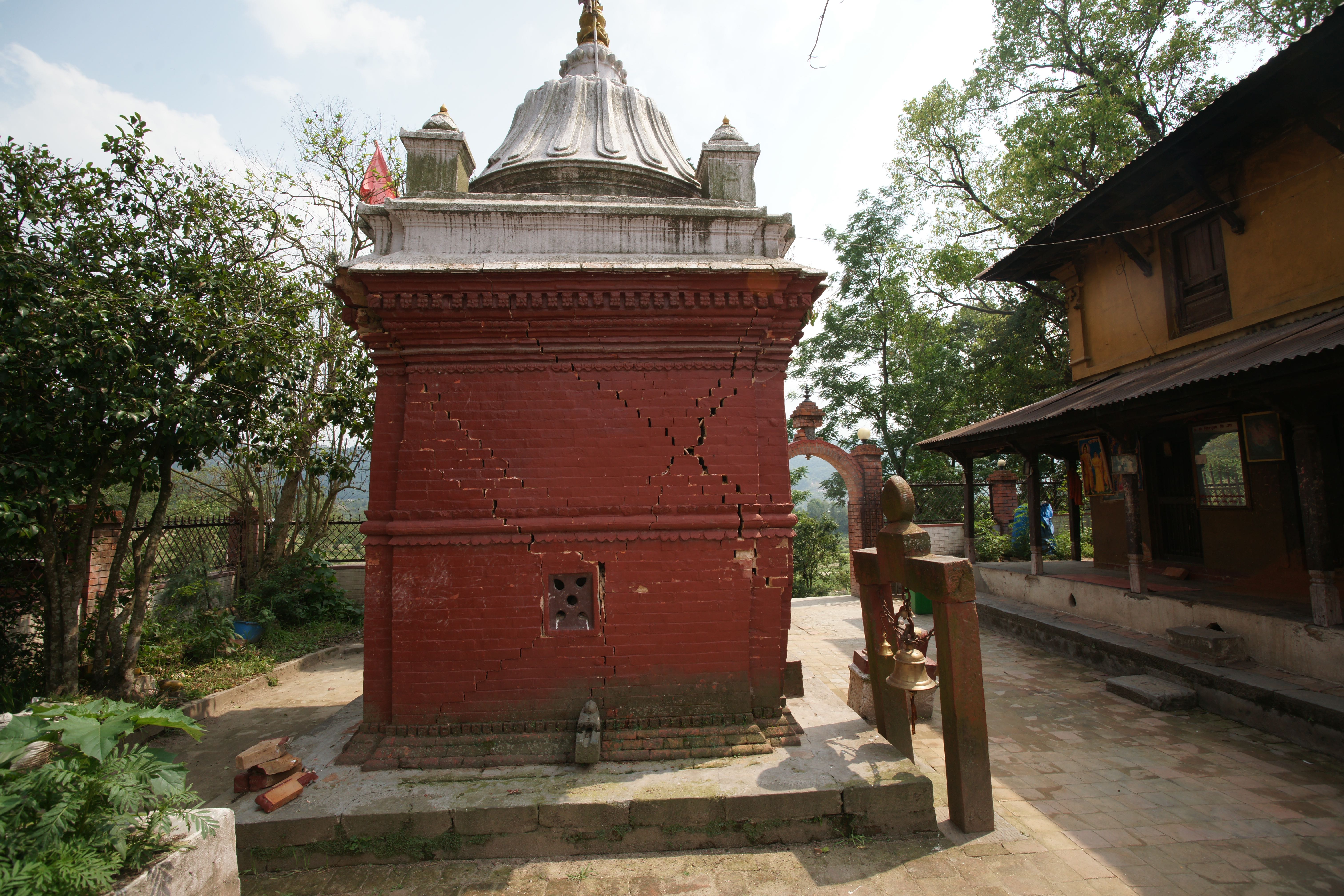

Kathmandu = Sankhu east |
Grade 3 damage to a heavy
masonry stupa |
| 85.424 |
27.759 |
6.5 |

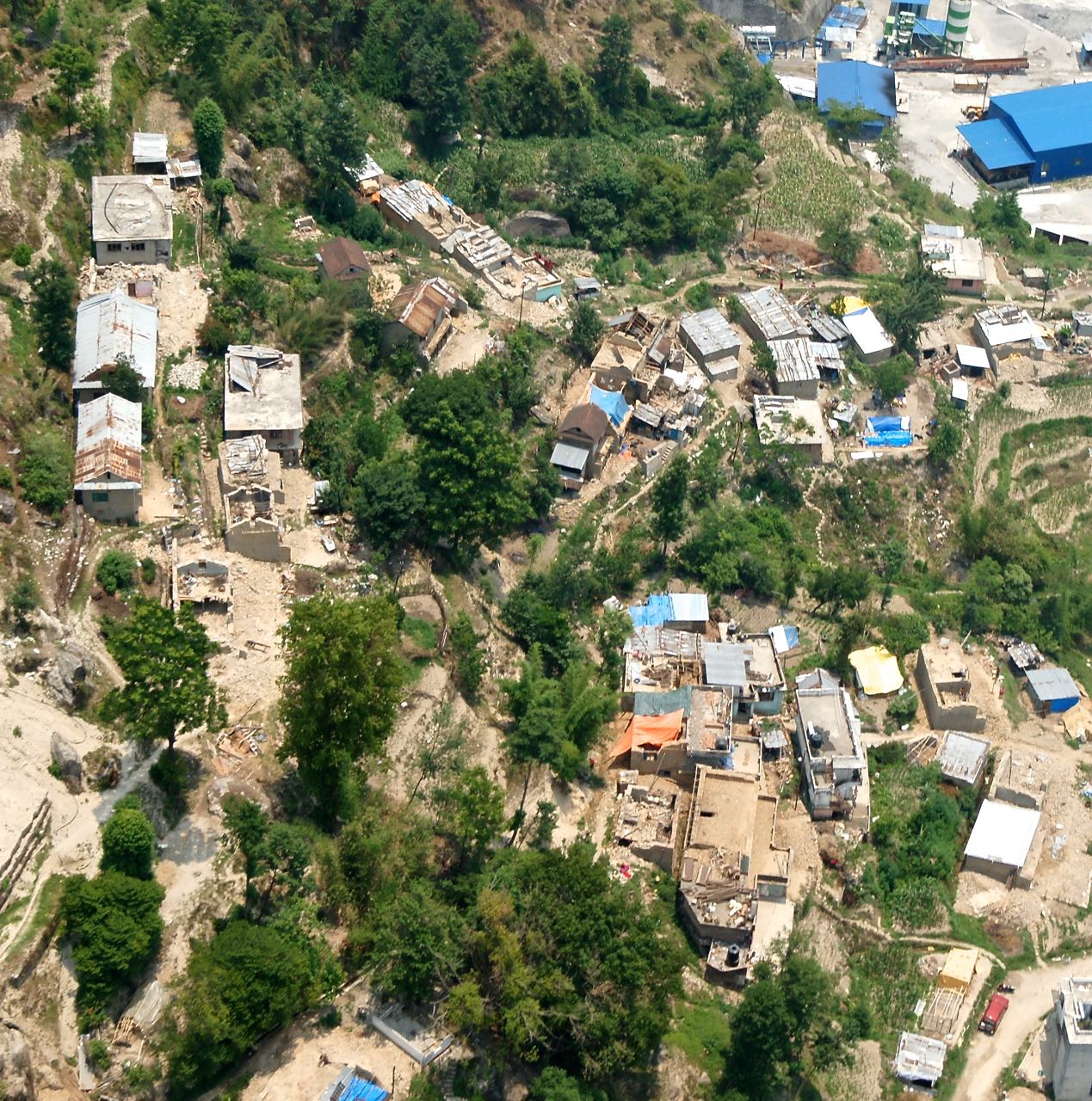

Kathmandu = Sundarijal |
Grade 4-5 damage to masonry
buildings; RCC buildings unscathed. View from air. |
| 85.444 |
27.742 |
6.5 |
Kathmandu = Suryamandali |
Grade 3-4 damage to masonry
buildings |
| 85.29 |
27.714 |
7.5 |

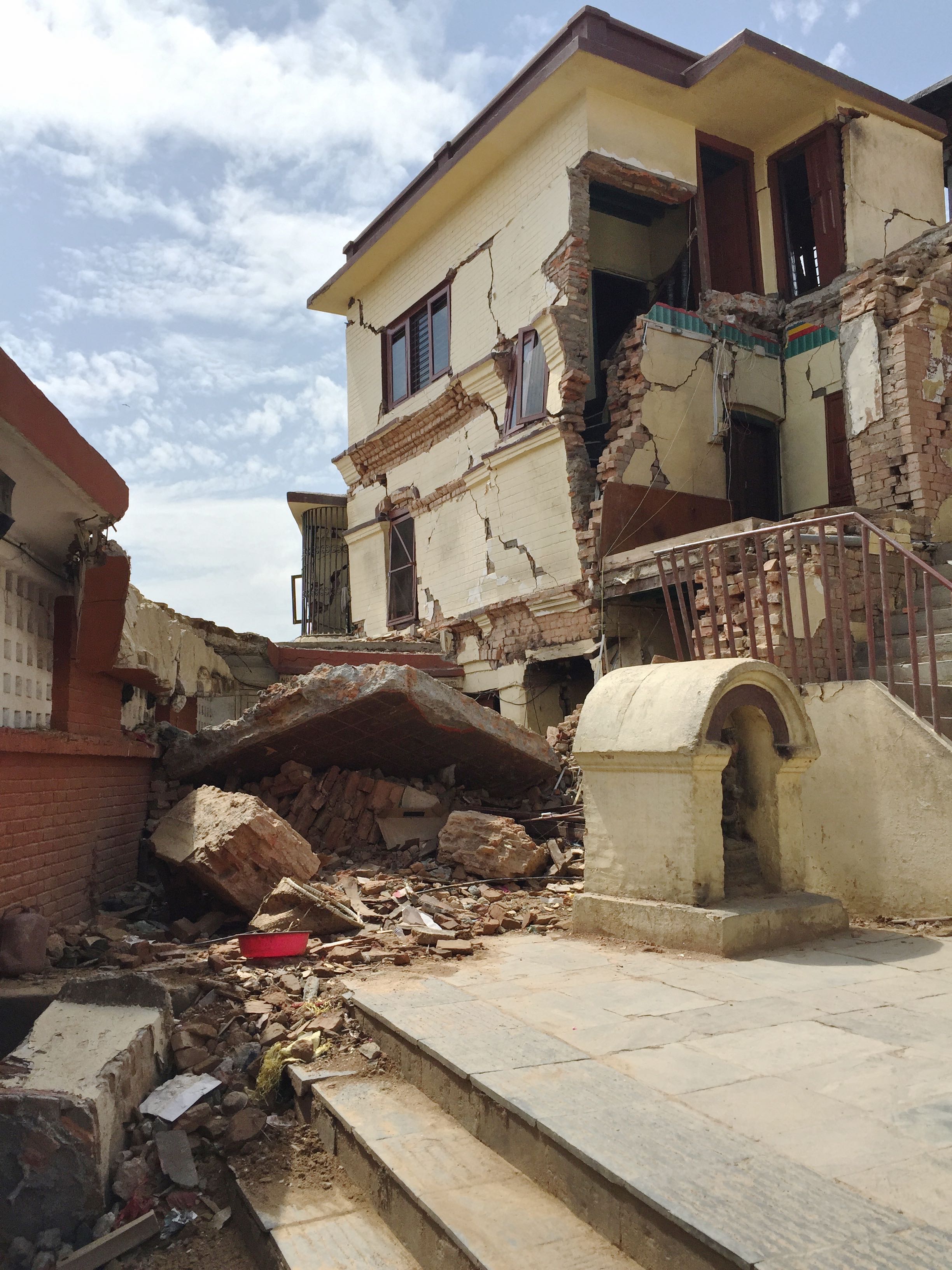

Kathmandu = Swayambhnath |
Some masonry buildings suffer
Grade 5 damage; many others suffer Grade 4 |

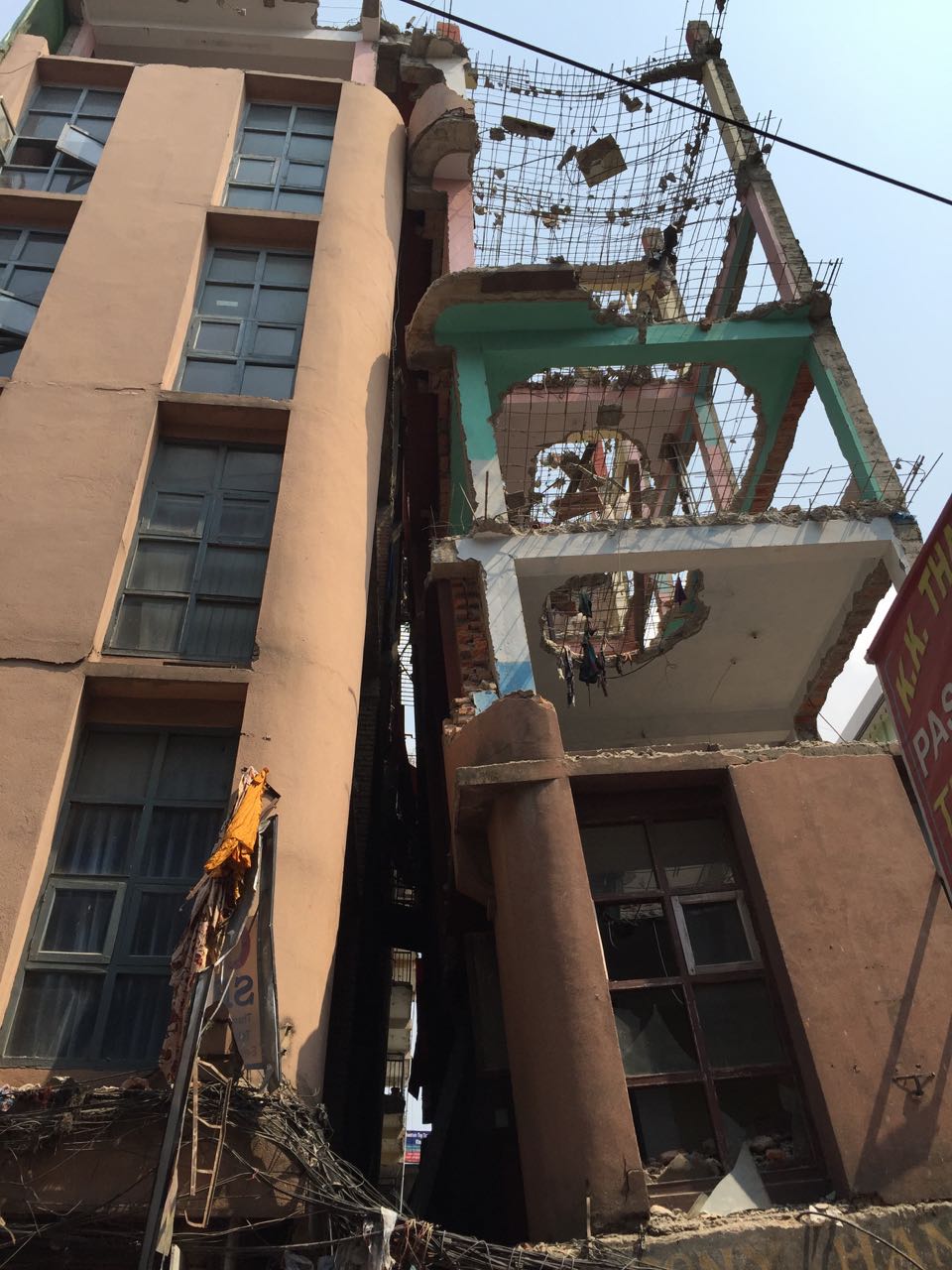

| 85.311 |
27.714 |
6.5 |
Kathmandu = Thamel |
Soft lower story collpase. Isolated example of damage (99% of structures with minor damage) |
| 85.266 |
27.719 |
8 |
Kathmandu = Thulu Bharyang |
Grade 3 damage to
RCC structure on ridge above valley floor |
| 85.149 |
27.939 |
6.5 |
Khadakathock |
Some masonry buildings suffer
Grade 4 damage; RCC buildings appear undamaged |
| 85.846 |
27.7558 |
7.5 |
Khadichaur_9068 |
Collapse of masonry structures;
Grade 4 damage RCC. Damage in 12
May aftershock |
| 85.821 |
27.751 |
6.0 |
Khadichaur1 |
minor damage to weak field-stone
structures |
| 85.828 |
27.755 |
6.5 |
Khadichaur2 |
damage to weak fiield stone and
brick structures |
| 85.237 |
27.796 |
7.0 |

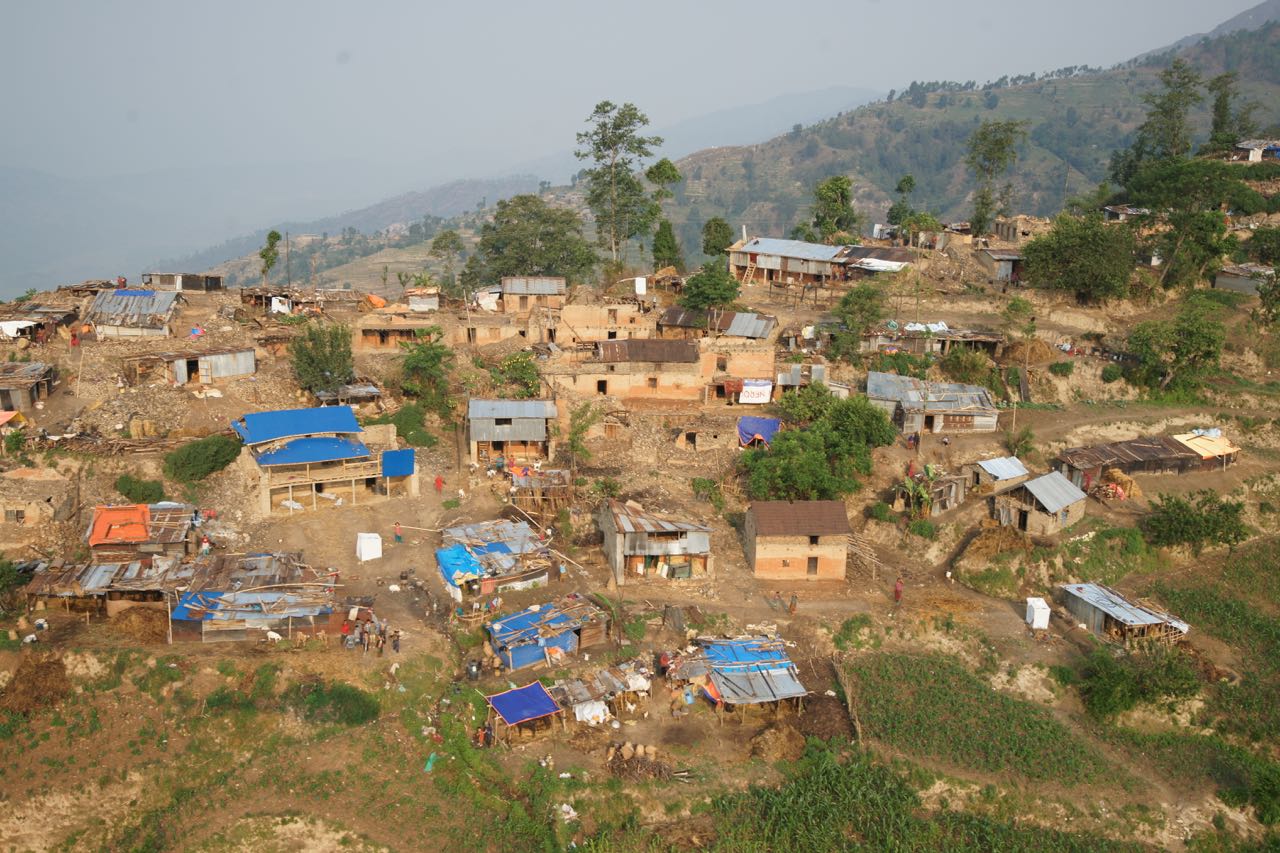

Khaiekhel |
Some masonry buildings suffer
Grade 5 damage; many others suffer Grade 4 |
| 84.541 |
27.911 |
5.0 |

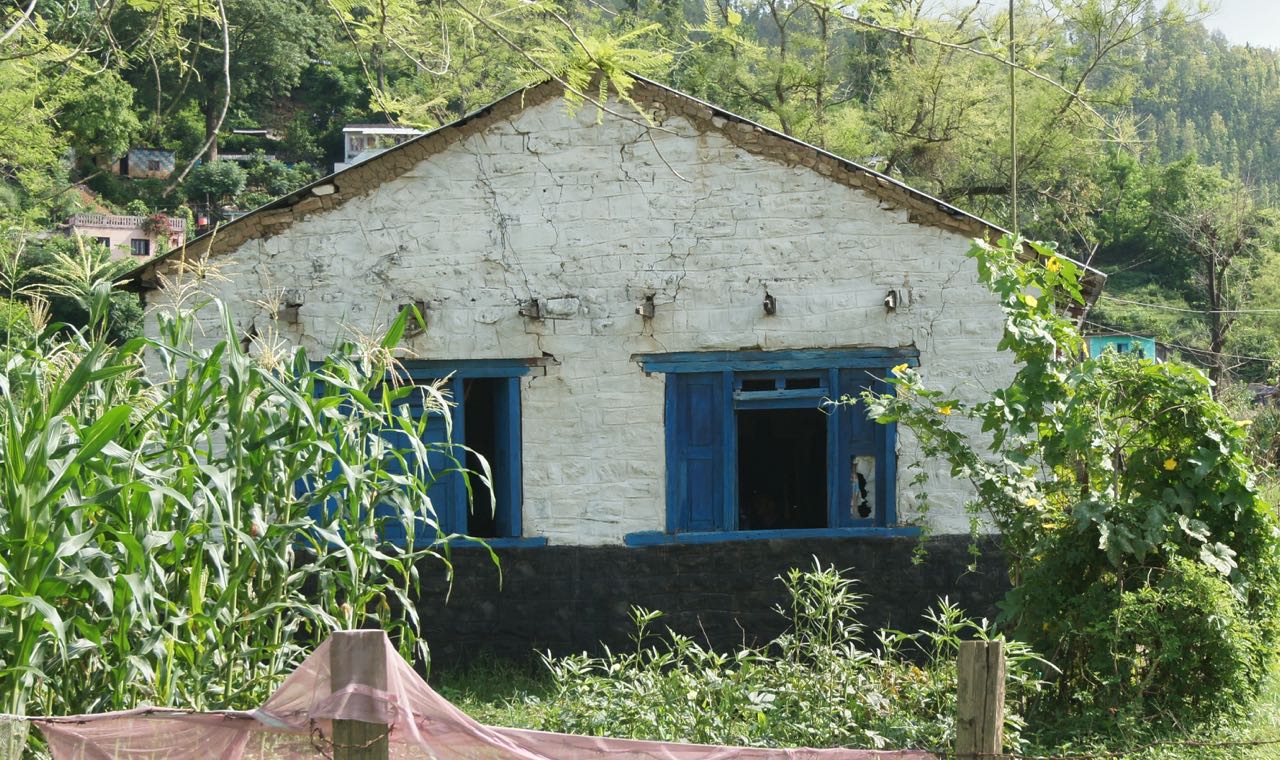

Khaireni |
Grade 2 damage to masonry
structures; RCC unscathed |

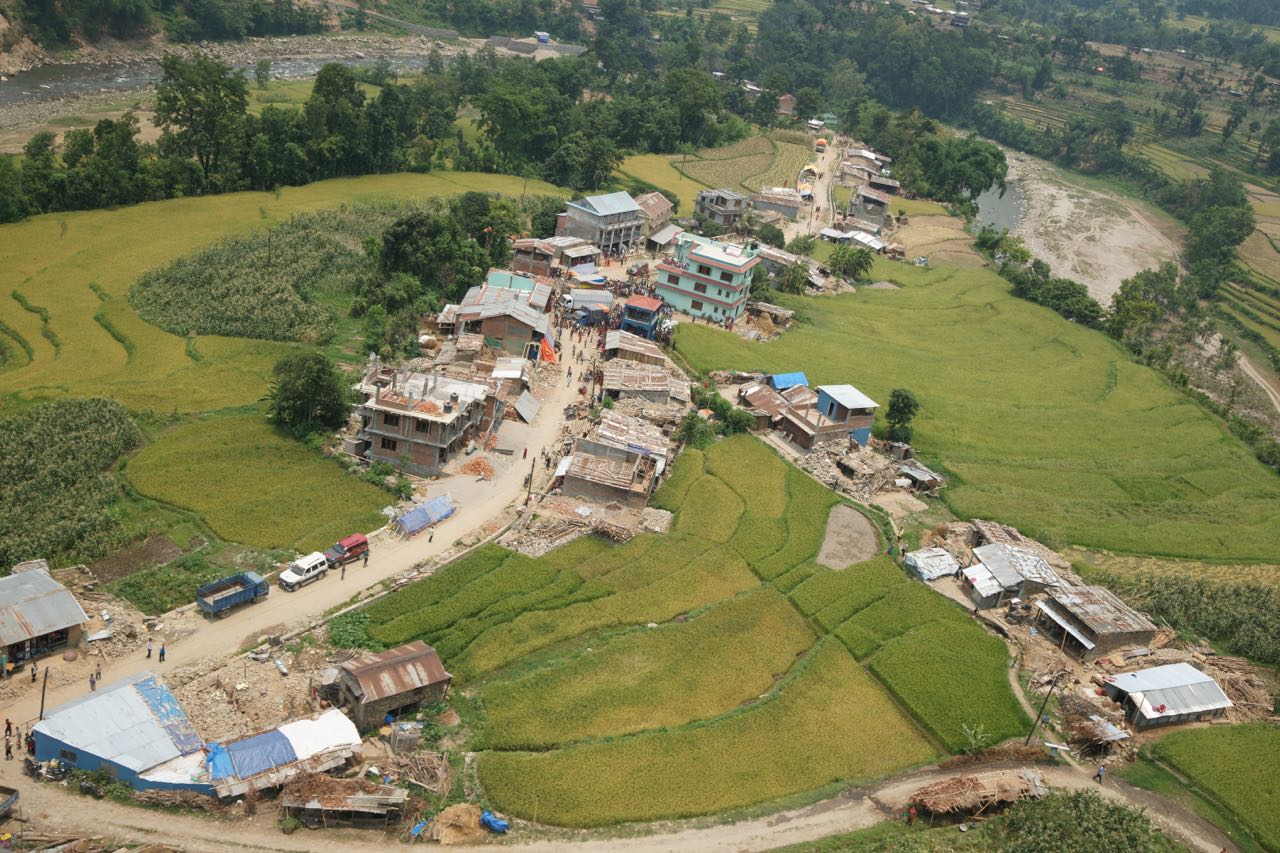

| 85.294 |
27.912 |
7.0 |
Kharentar |
Some masonry buildings suffer
Grade 5, others Grade 3-4; RCC buildings appear unscathed |
| 84.864 |
28.243 |
6.5 |
Khorla |
Grade 3-4 damage to a masonry
building. Roof collapse to
masonry buildings |
| 85.38 |
27.861 |
6.5 |
Kukre |
minor masonry collapse RCC unscathed |
| 84.617 |
27.874 |
5.5 |
Kurintar on Prthivi River |
One weak fieldstone masonry shed
collapsed; RCC unscathed. Site visit no photo. |

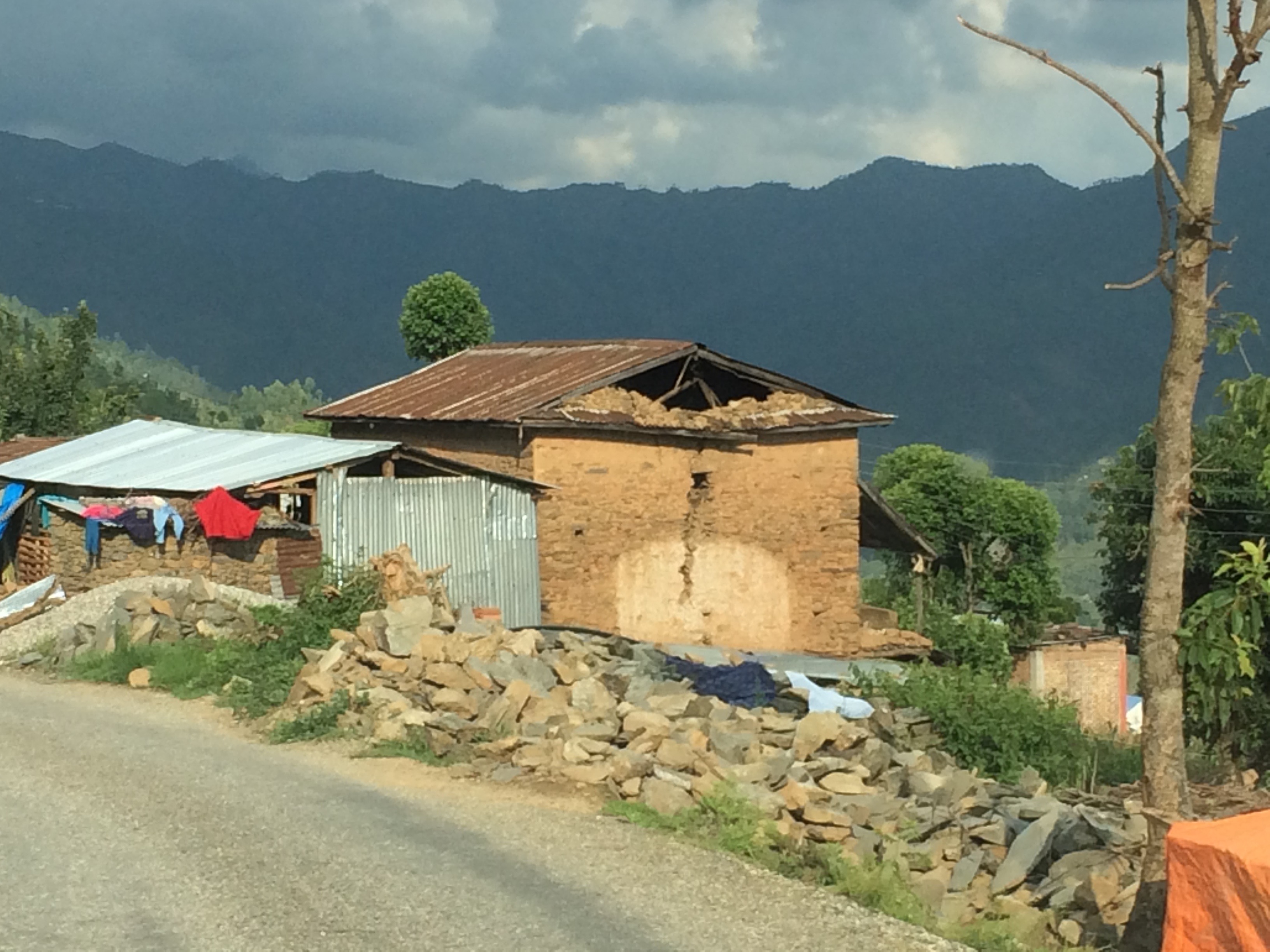

| 85.207 |
27.9869 |
6 |
Laharapauwa_9395 |
Grade 3 damage to masonry
structures |
| 85.862 |
27.7559 |
7 |
Lamasogoan_9051 |
Grade 4 damage to masonry
structures; Grade 3 damage RCC |

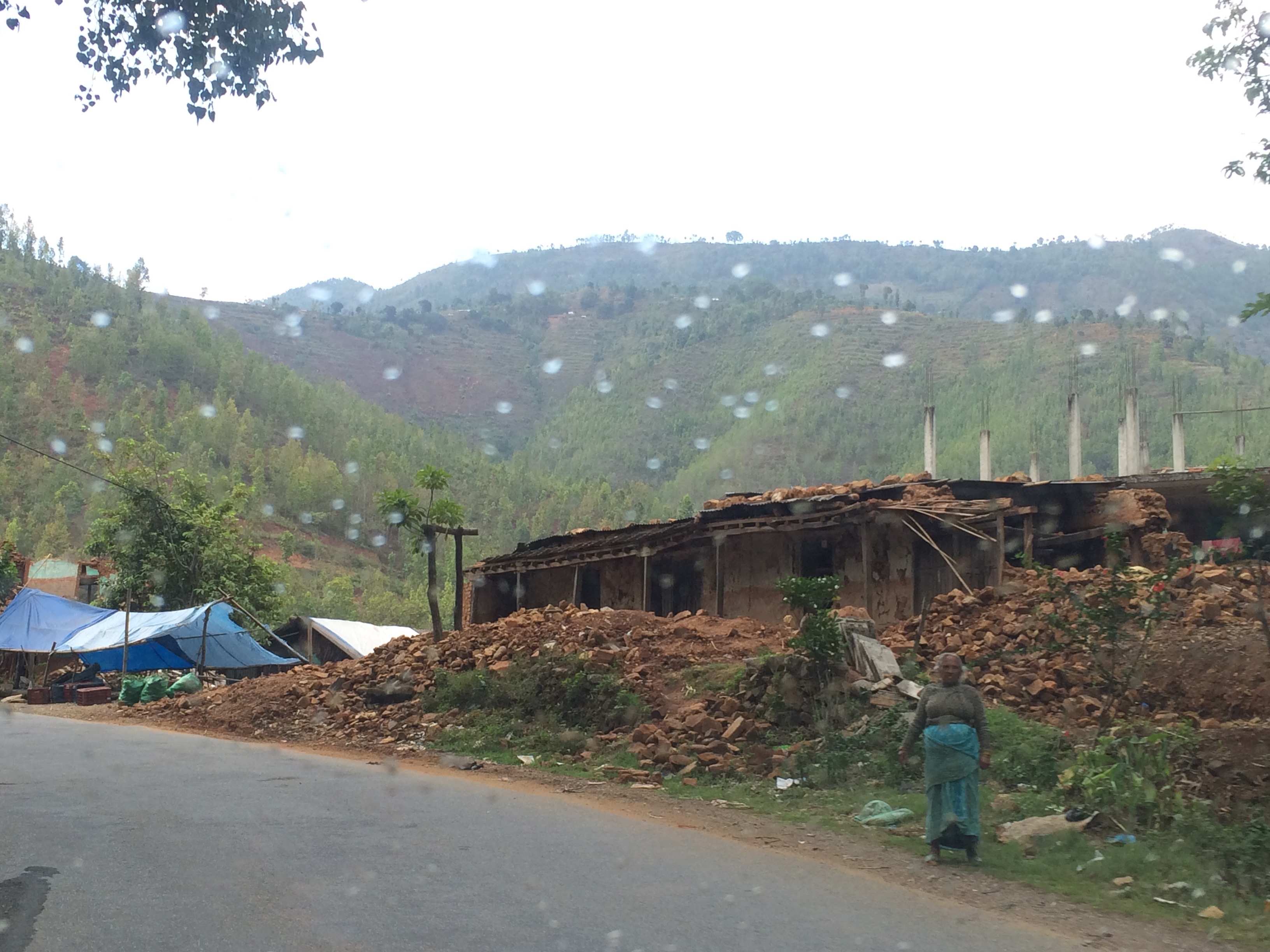

| 85.643 |
27.6650 |
6.5 |
Lamidanda_9213 |
Grade 4 damage to masonry
structures;partial or total collapse of field-stone dwellings; survival of
better built structures |
| 85.862 |
27.756 |
7.0 |
Lamosagon |
partial or total collapse of
field-stone dwellings; ssurvival of better built structures |

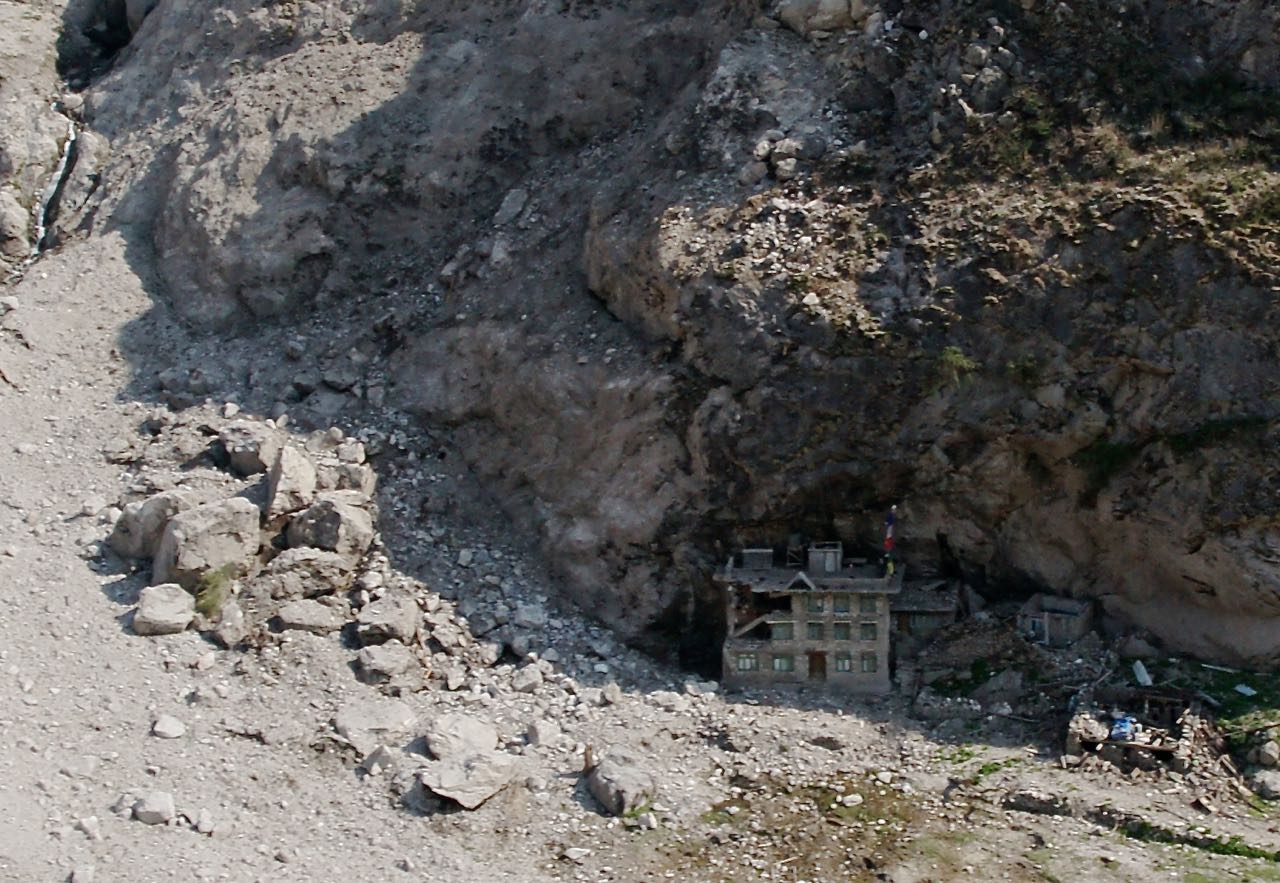

| 85.509 |
28.216 |
6.5 |
Langtang |
Grade 3 masonry damage occurred before debris slide; butter
lamps on shelf not moved; see narrative. |
| 85.390 |
27.843 |
6.5 |

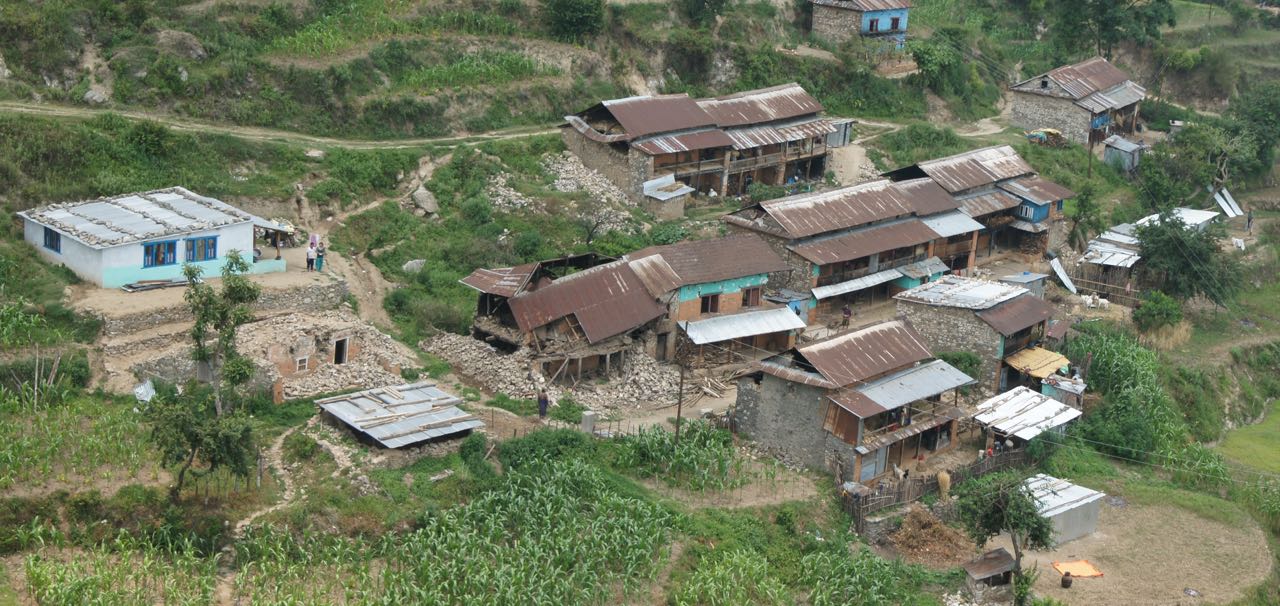

Mahidan |
Grade 4-5 damage to one
building; grades 3-4 to another; similar masonry buildigns appear unscathed |
| 85.150 |
27.893 |
7.0 |
Majhitar |
Total collapse of masonry; minor
damage to RCC |

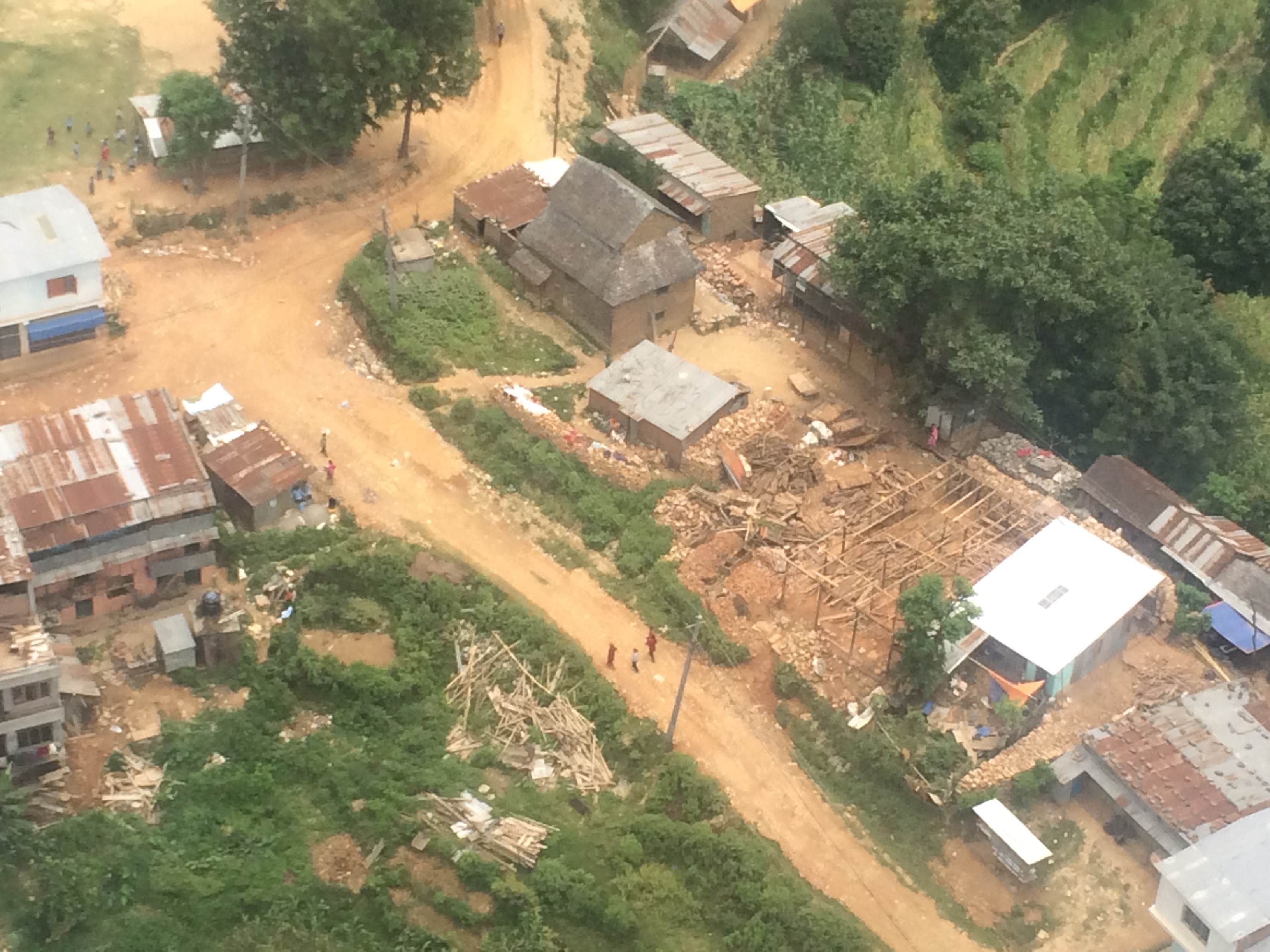

| 84.830 |
28.0790 |
6 |
Mangaltar_8235 |
Grade 3-4 or 4 damage to masonry
structures;RCC unscathed |
| 85.204 |
27.9964 |
6.5 |

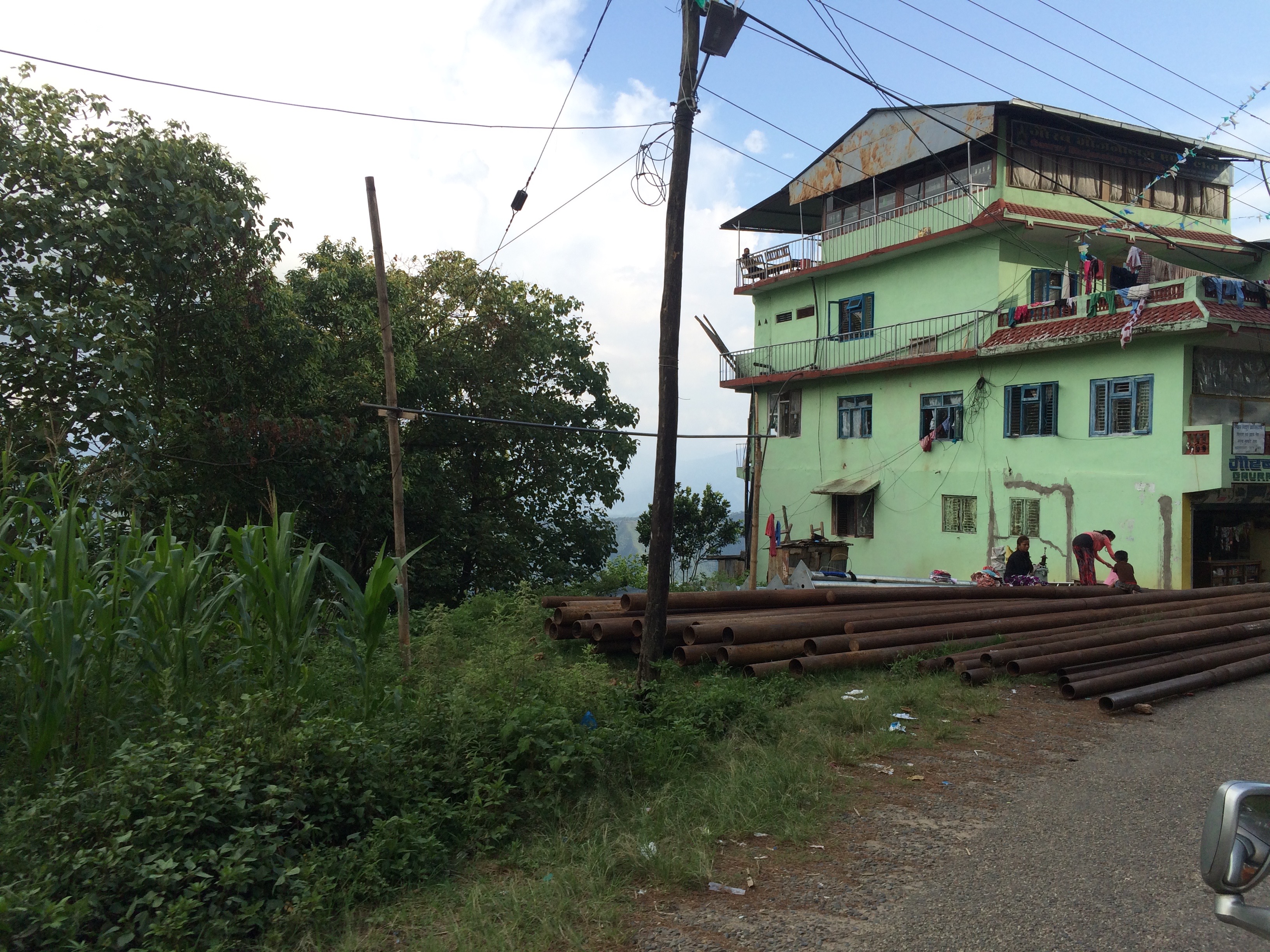

Manigoan_9375 |
Grade 4 damage to masonry
structures; Grade 3 damage RCC |
| 85.201 |
27.9919 |
6 |

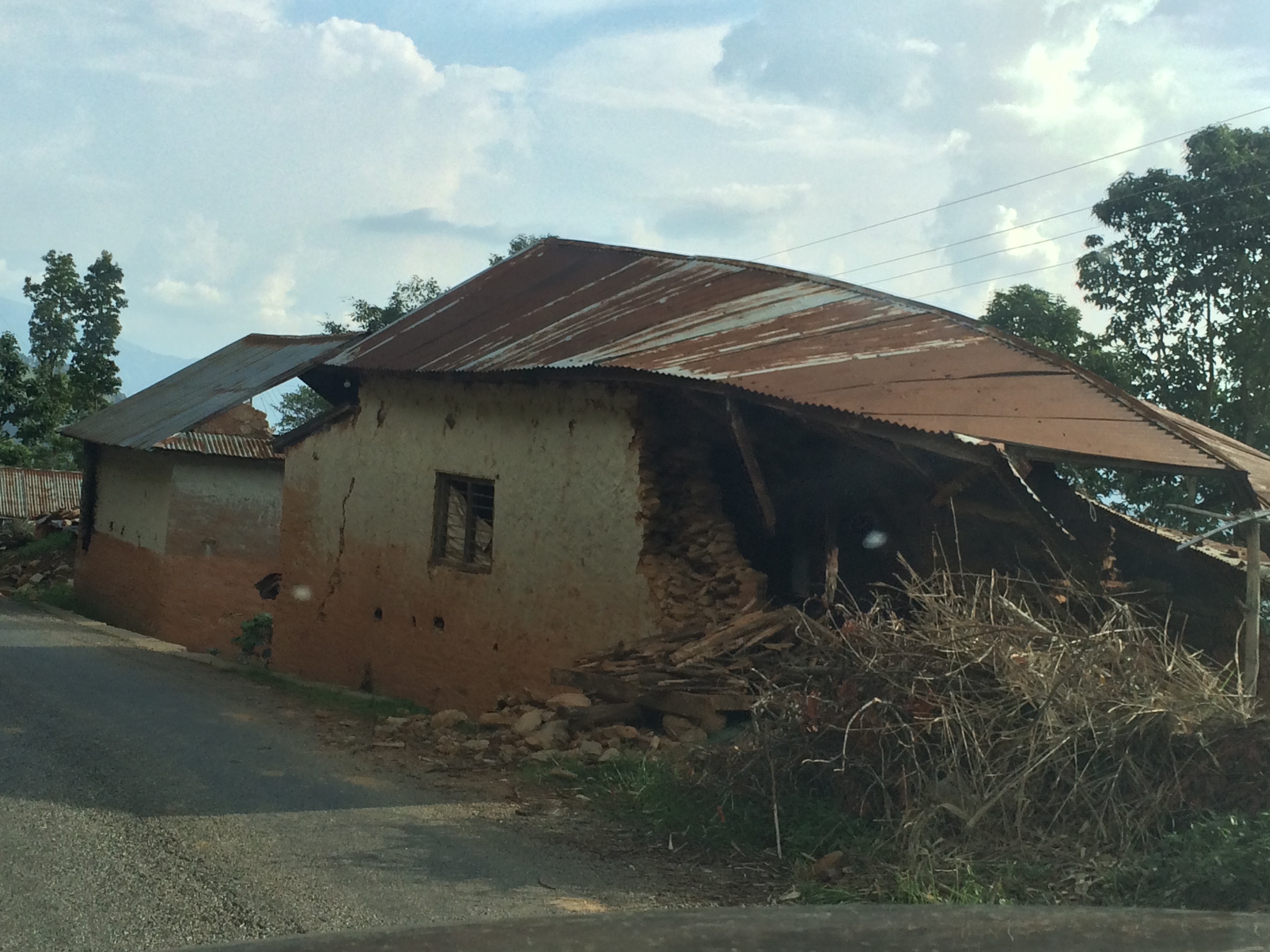

Manigoan_9385 |
Grade 4 damage to masonry
structures |
| 84.560 |
27.856 |
6.0 |
Mugling |
Masonry collapsed; RCC undamaged |
| 85.779 |
27.732 |
6.0 |
Packardovan |
substantial damage to masonry
structures |
| 85.530 |
27.563 |
6.0 |
Panauti |
Brick masonry structures weakly
damaged. |
| 85.625 |
27.656 |
6.0 |
Panchkal |
masonry buildings with cracks;
RCC unscathed |
| 85.643 |
27.665 |
6.5 |
Planchoki |
substantial damage to masonry
structures |

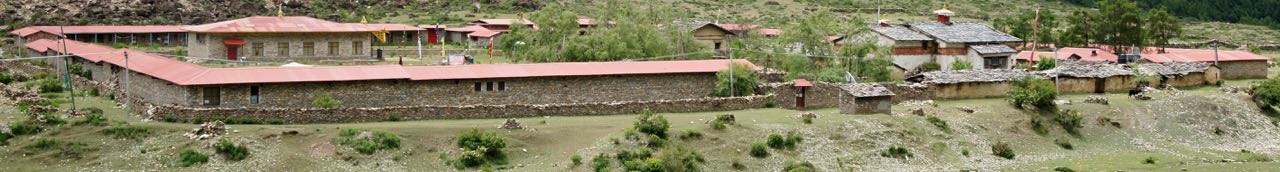

| 85.081 |
28.511 |
6.0 |
Rachem Gompa |
Grade 3 damage to rubble masonry
walls. Well built masonry not
damaged. |

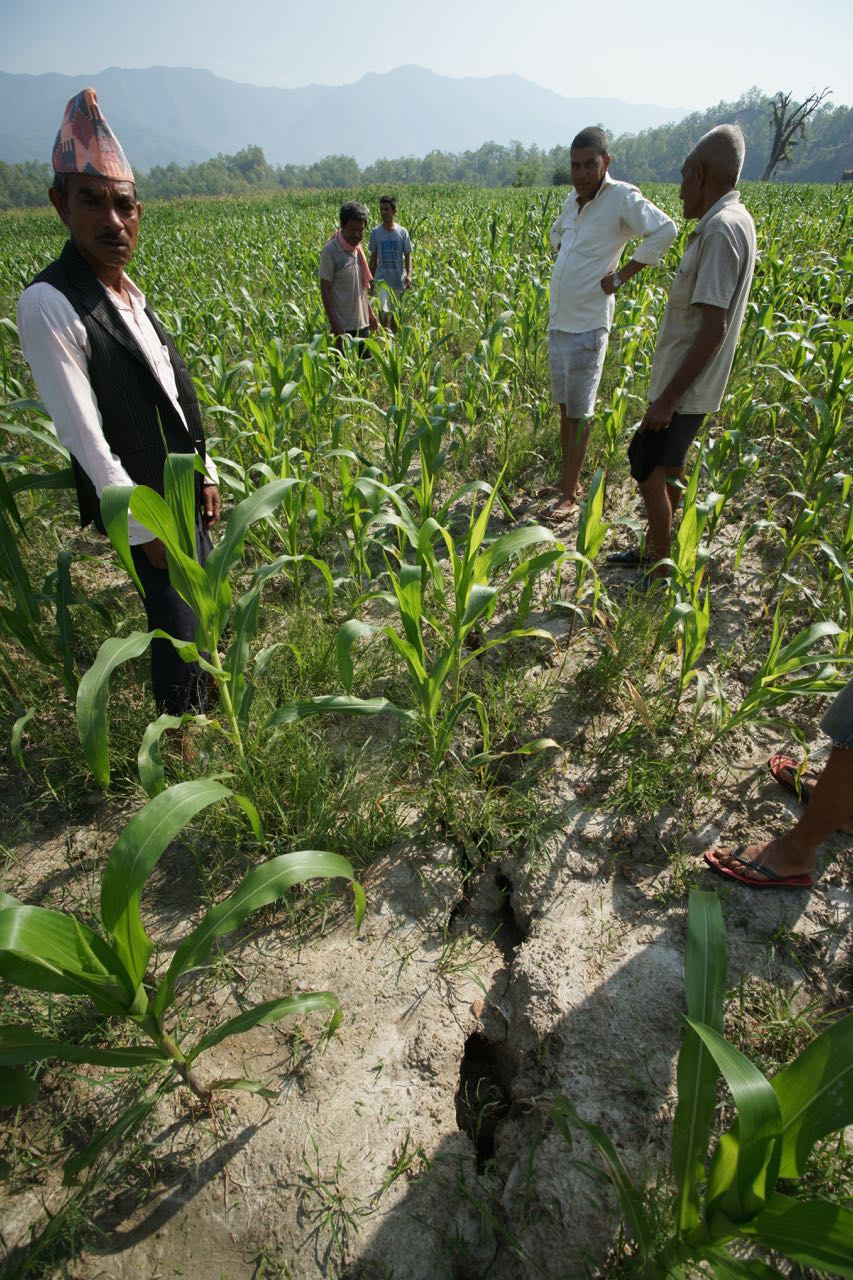

| 85.795 |
27.238 |
6 |
Raigun |
See Raigun liquefaction narrative; masonry dwellings in 4 km
radius were undamaged |
| 84.702 |
28.571 |
6 |

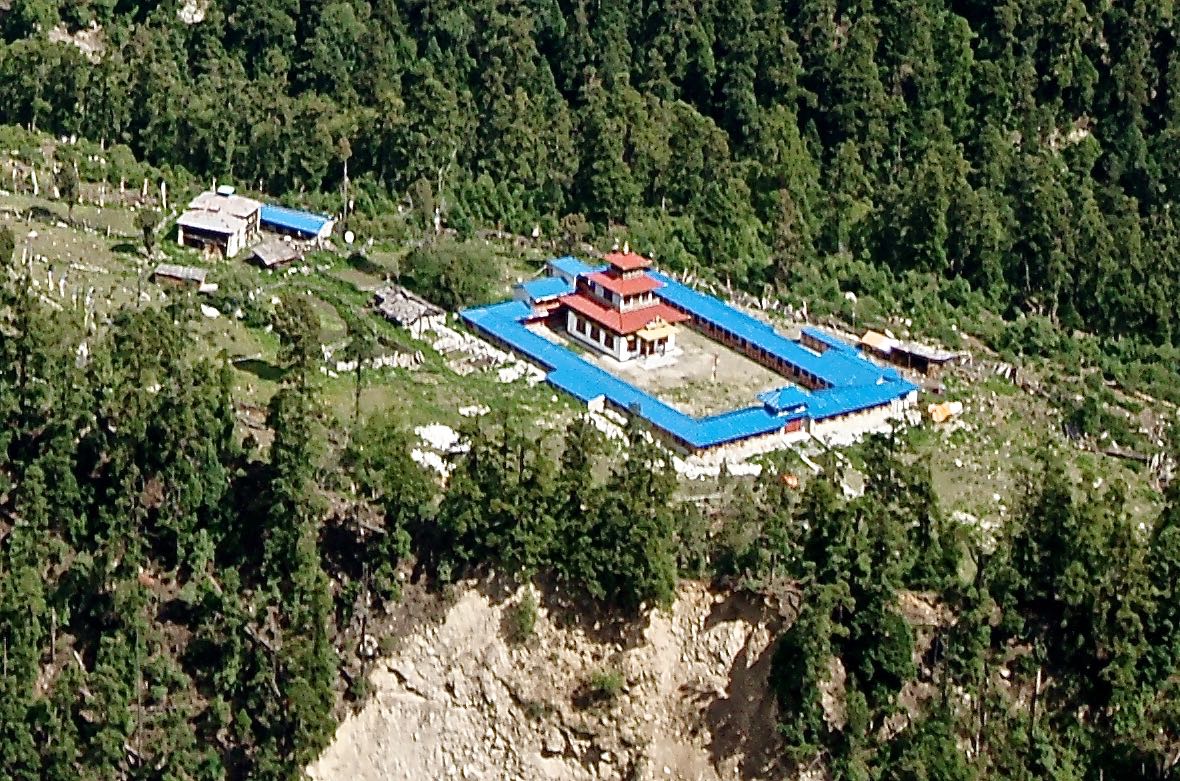

Ribung Gompa |
No visible sign of damage to temple complex (Manaslu
region). Rubble field walls
collapsed in places |
| 84.975 |
28.467 |
8.0 |
Ripchet |
Many masonry buildings suffer
Grade 4-5 or 5 damage |

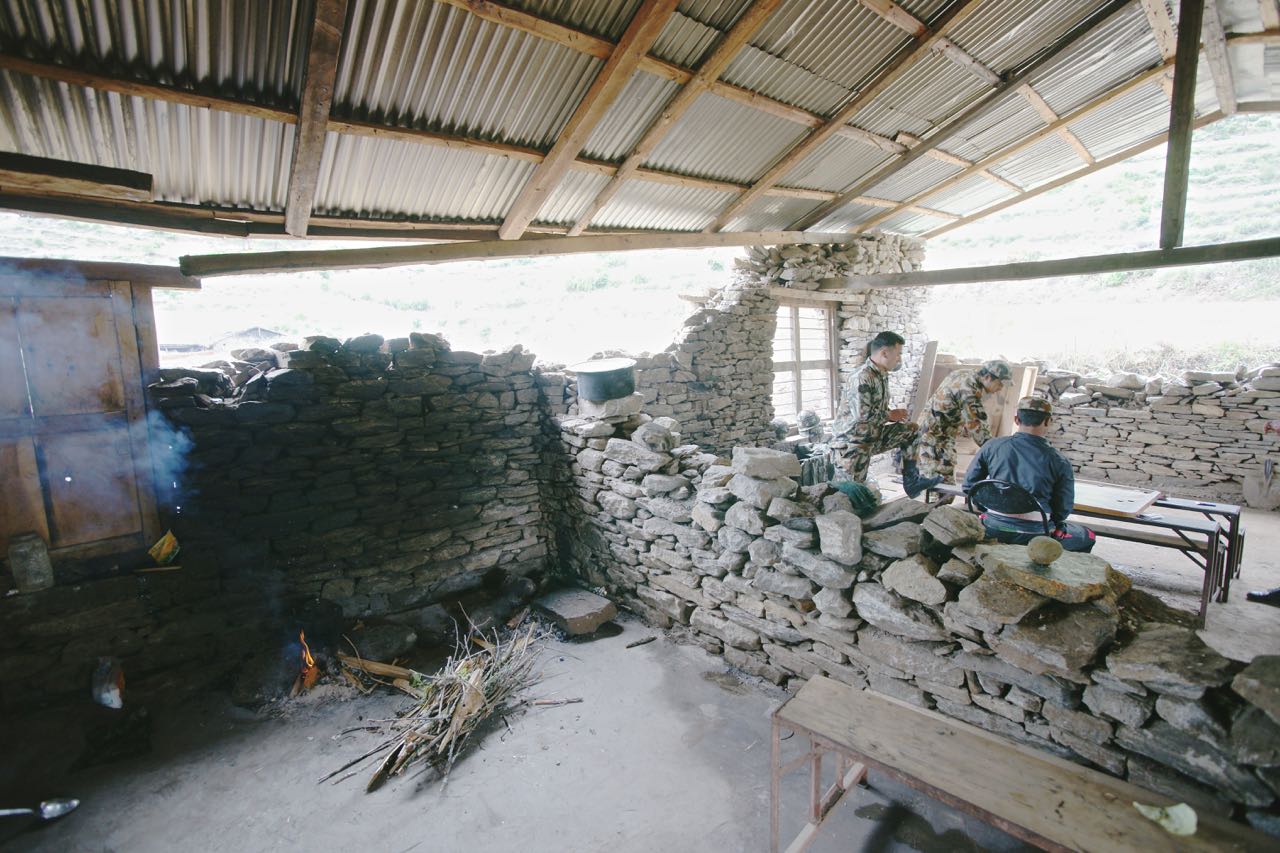

| 84.964 |
28.478 |
6.5 |
Ripchet-West |
interior stone wall
collapsed-partial collapse external walls; two story house, masonry about to
separate, partial roof damage |
| 85.462 |
27.729 |
7.5 |

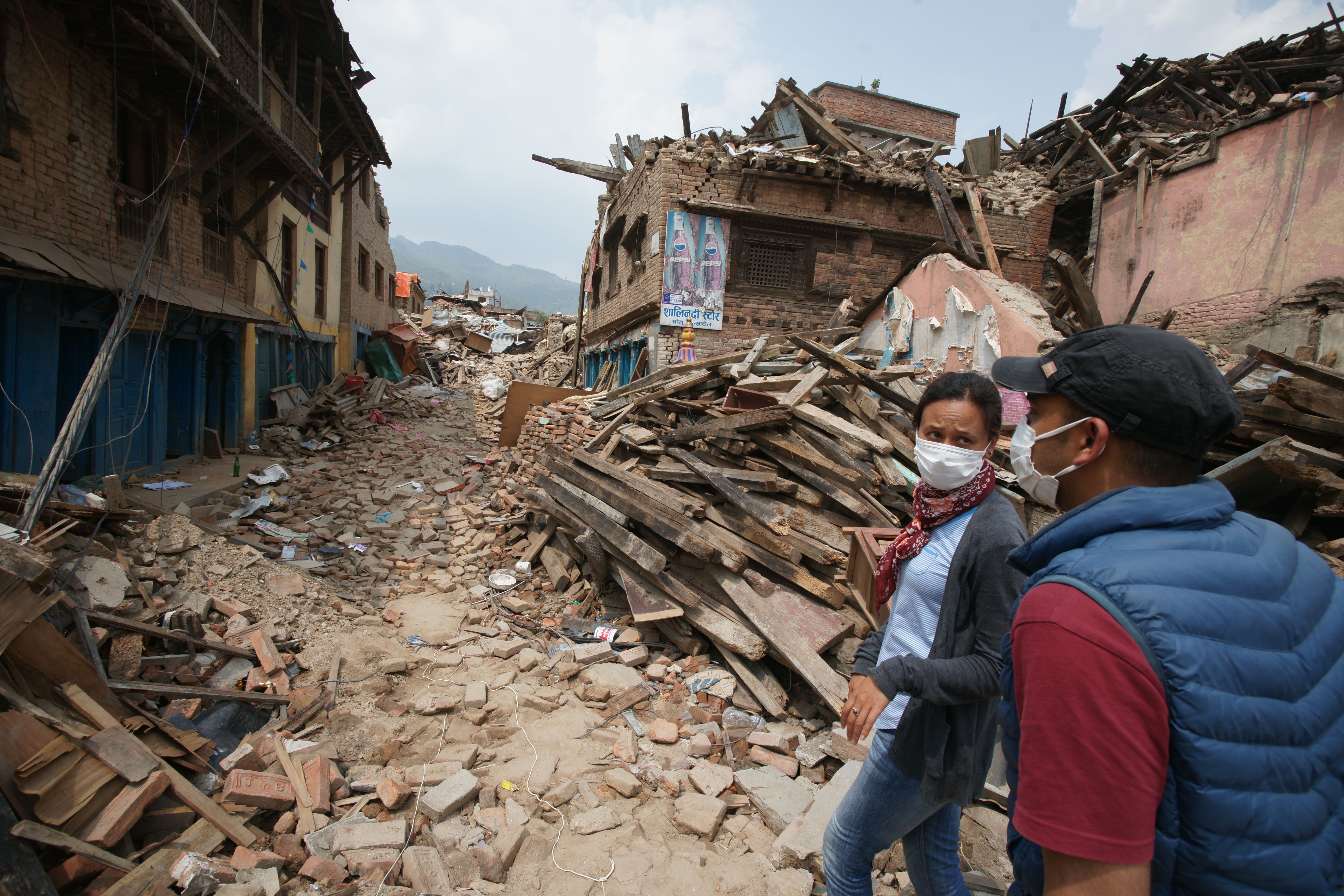

Sankhu Town on ridge |
Widespread Grade 4 masonry collapse;RCC minor damage. One (of
30) RCC structures recorded Grade 3 structural column failure. |

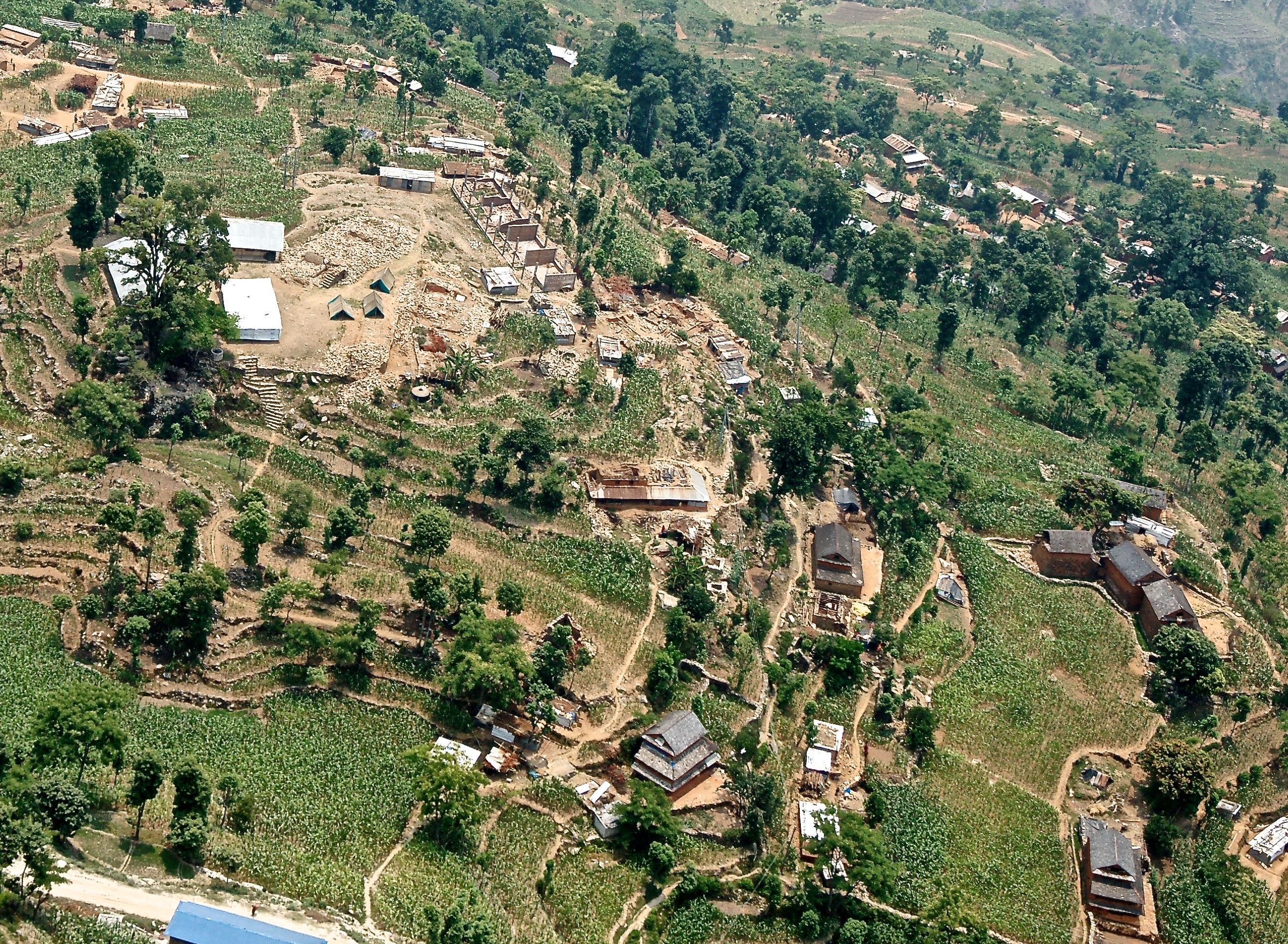

| 85.279 |
27.980 |
7.0 |
Sarangthal |
Grade 4-5 or 5 to some buildings |
| 84.972 |
27.913 |
6.0 |

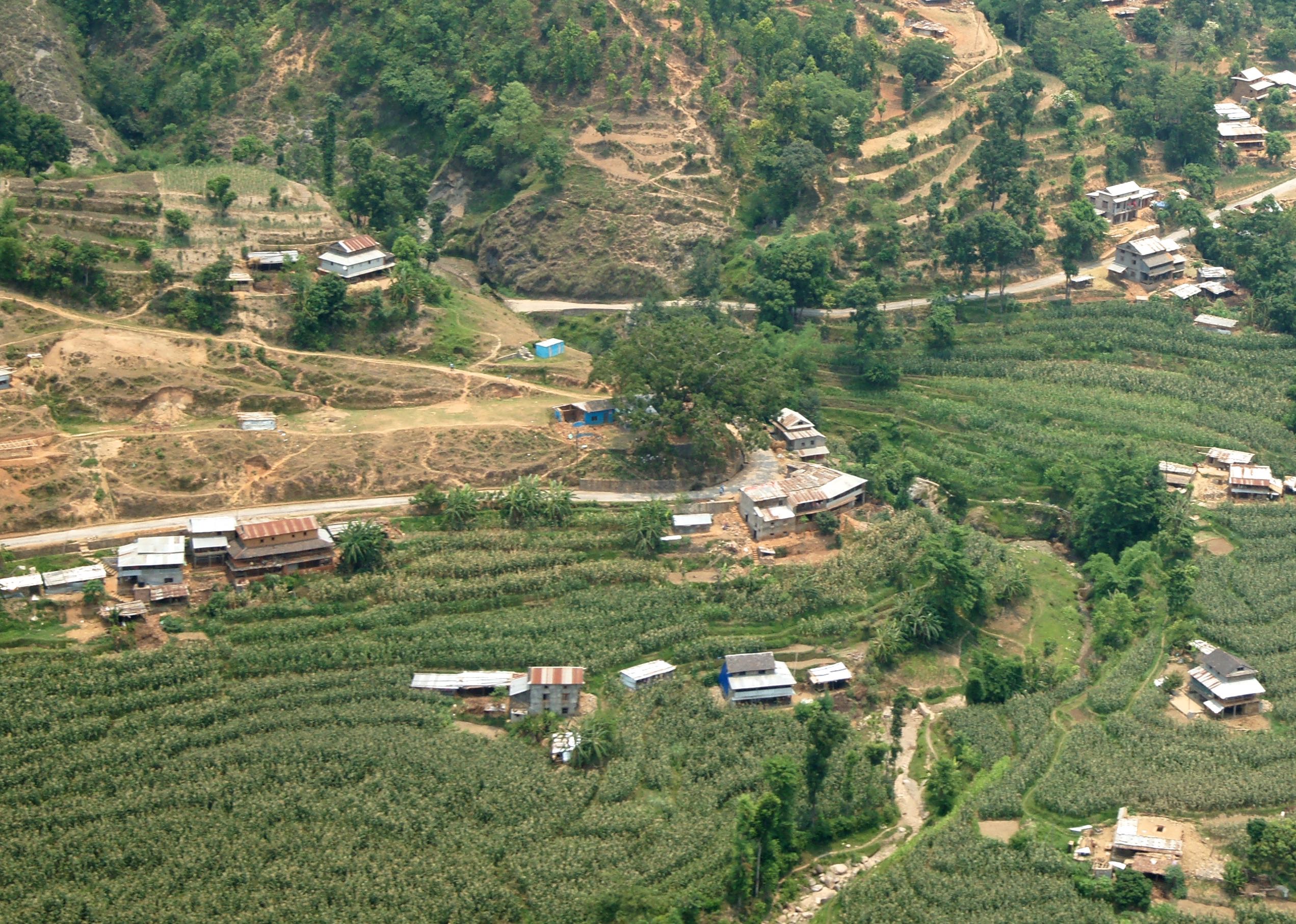

Simra |
20% masonry walls Grade 3 damage |

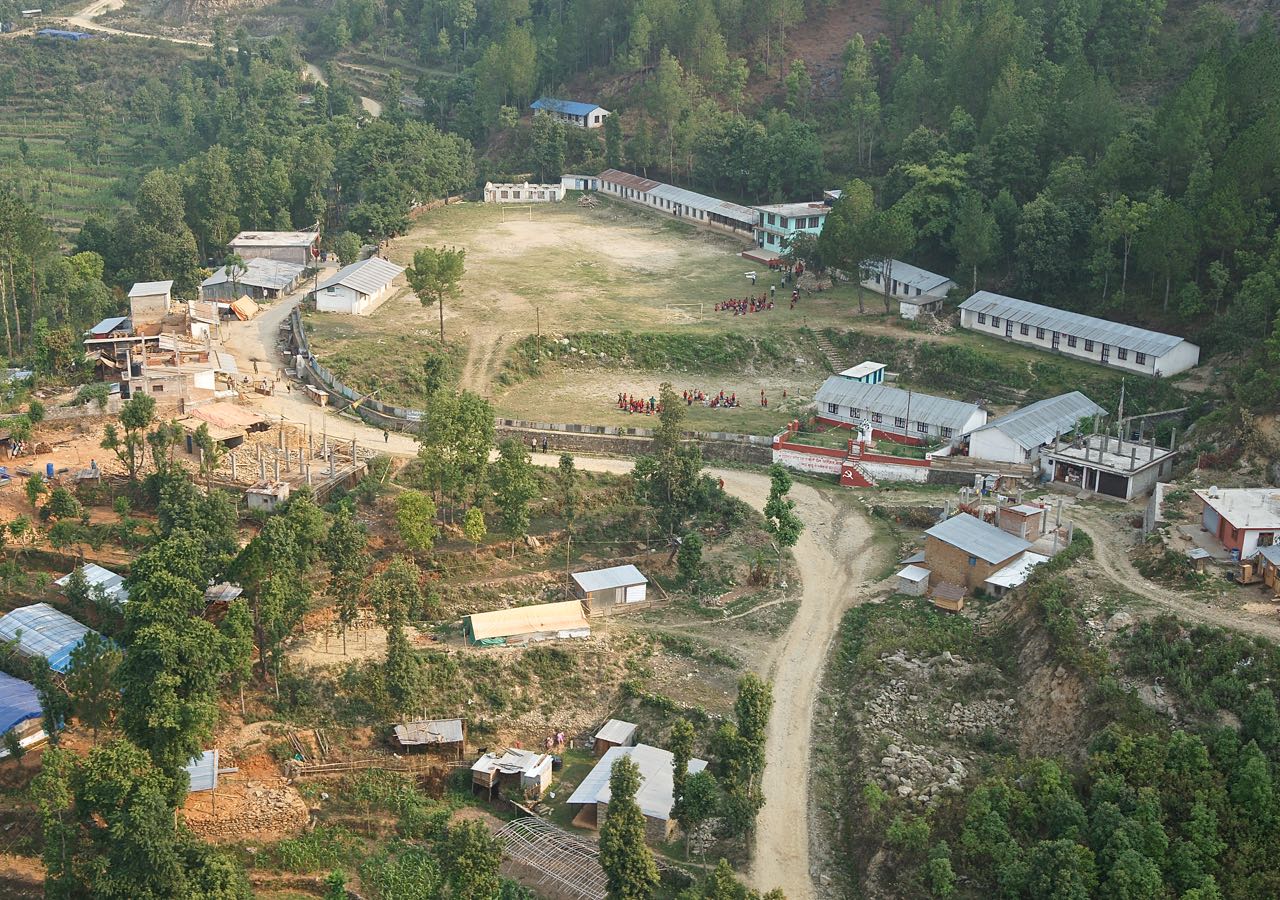

| 85.225 |
27.822 |
6.0 |
Simwutar |
Very few masonry buildings
differ Grade 3-4 |

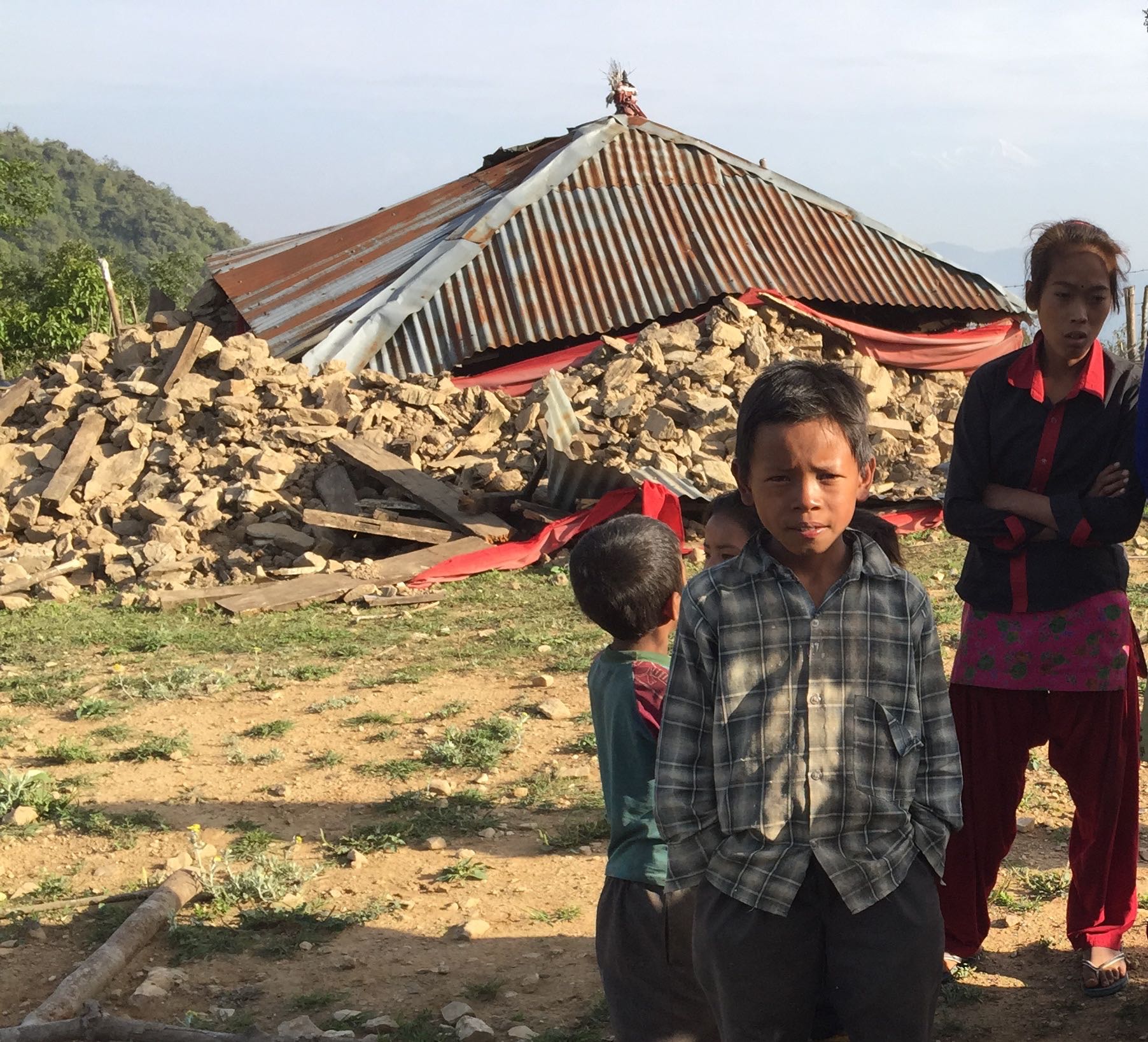

| 85.798 |
27.385 |
7.0 |
Sindhulimadhi |
Grade 5 damage to a masonry
structure |
| 85.193 |
27.984 |
6.5 |
Sole |
rubble-stone collapse. |

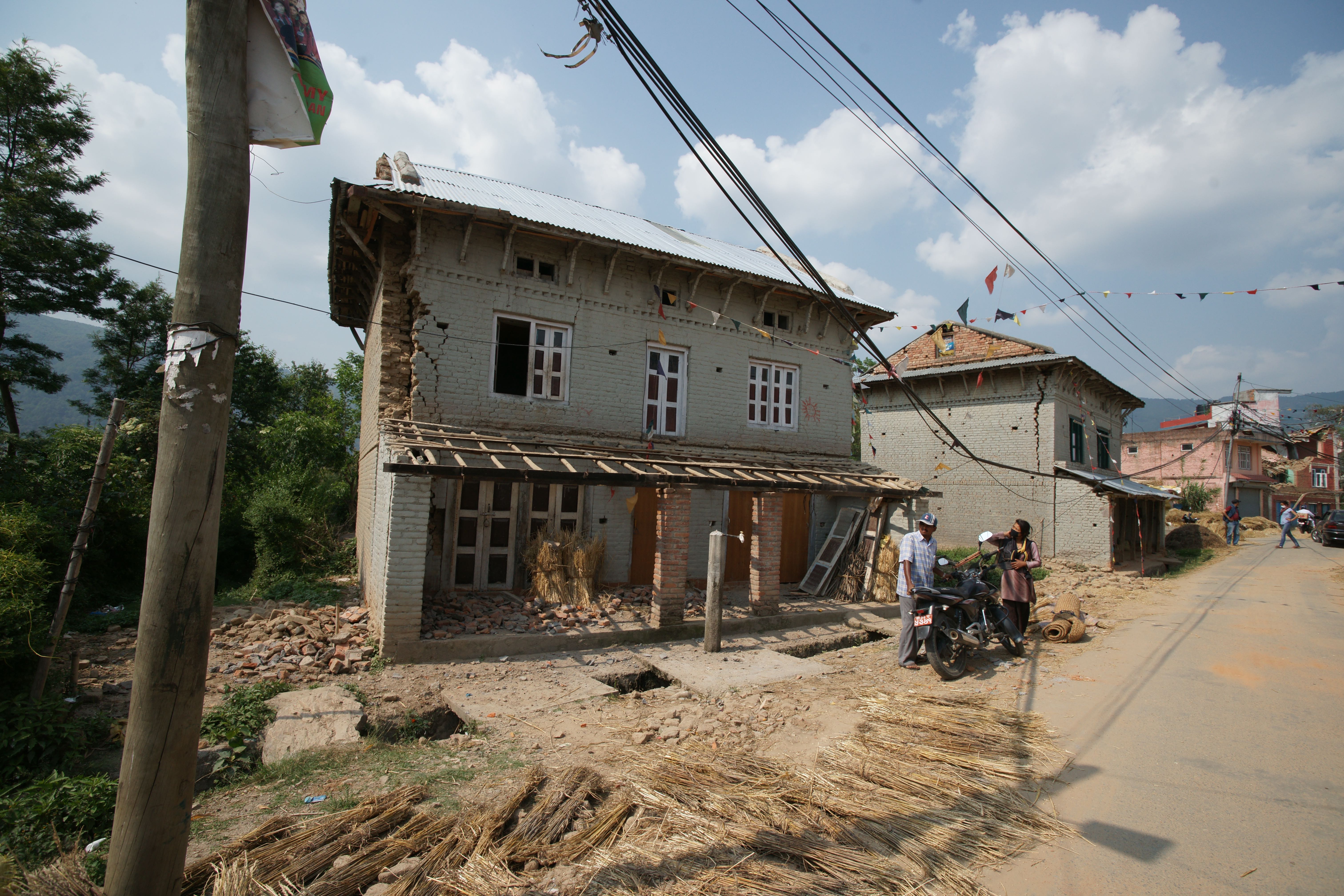

| 85.444 |
27.742 |
7 |
Suryamandali |
Grade 4 damage to older stone masonry buildings in village
along ridge |

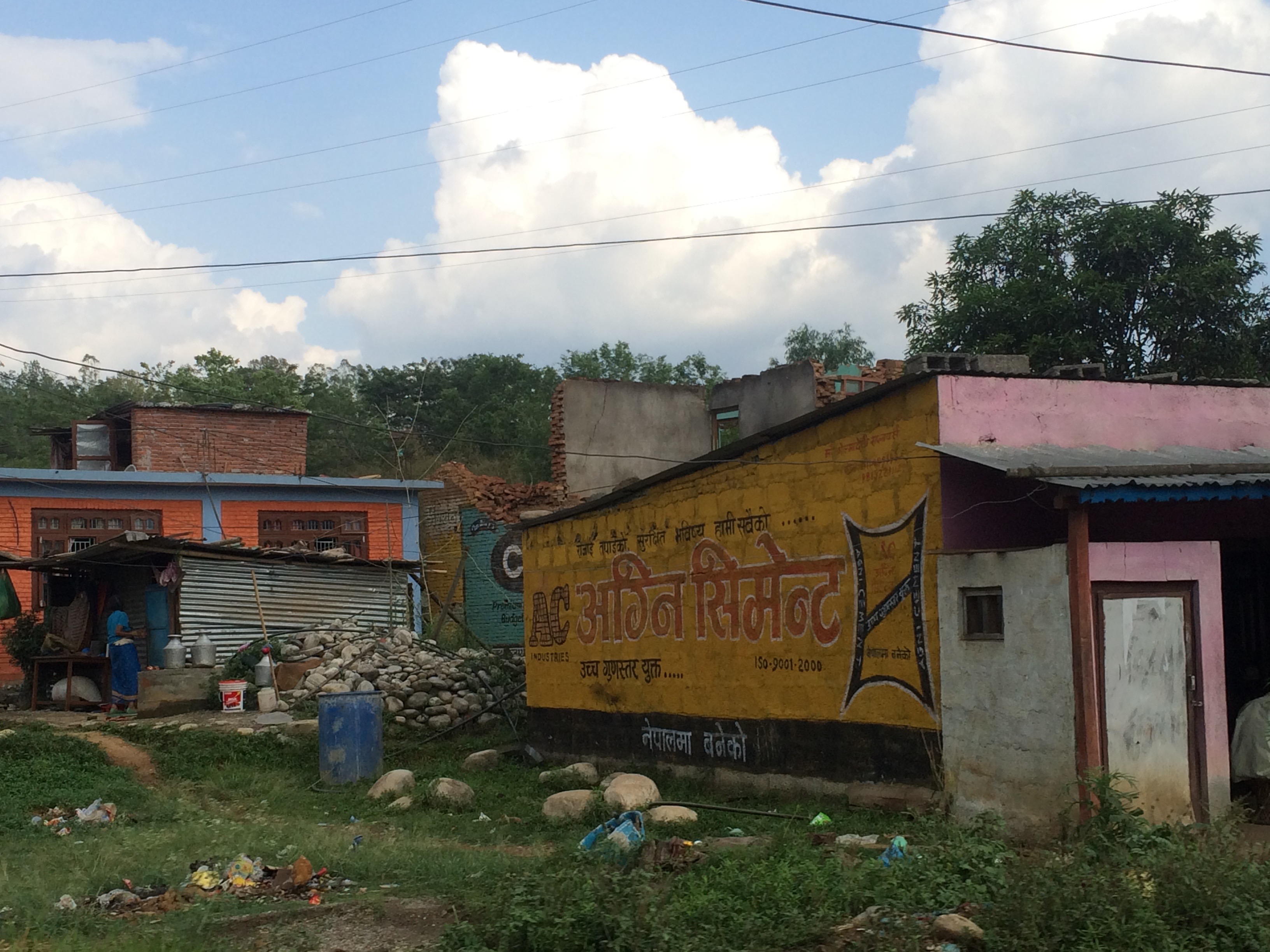

| 85.625 |
27.6562 |
6 |
Tamaghat_9229 |
Grade 4 damage to masonry
structures |

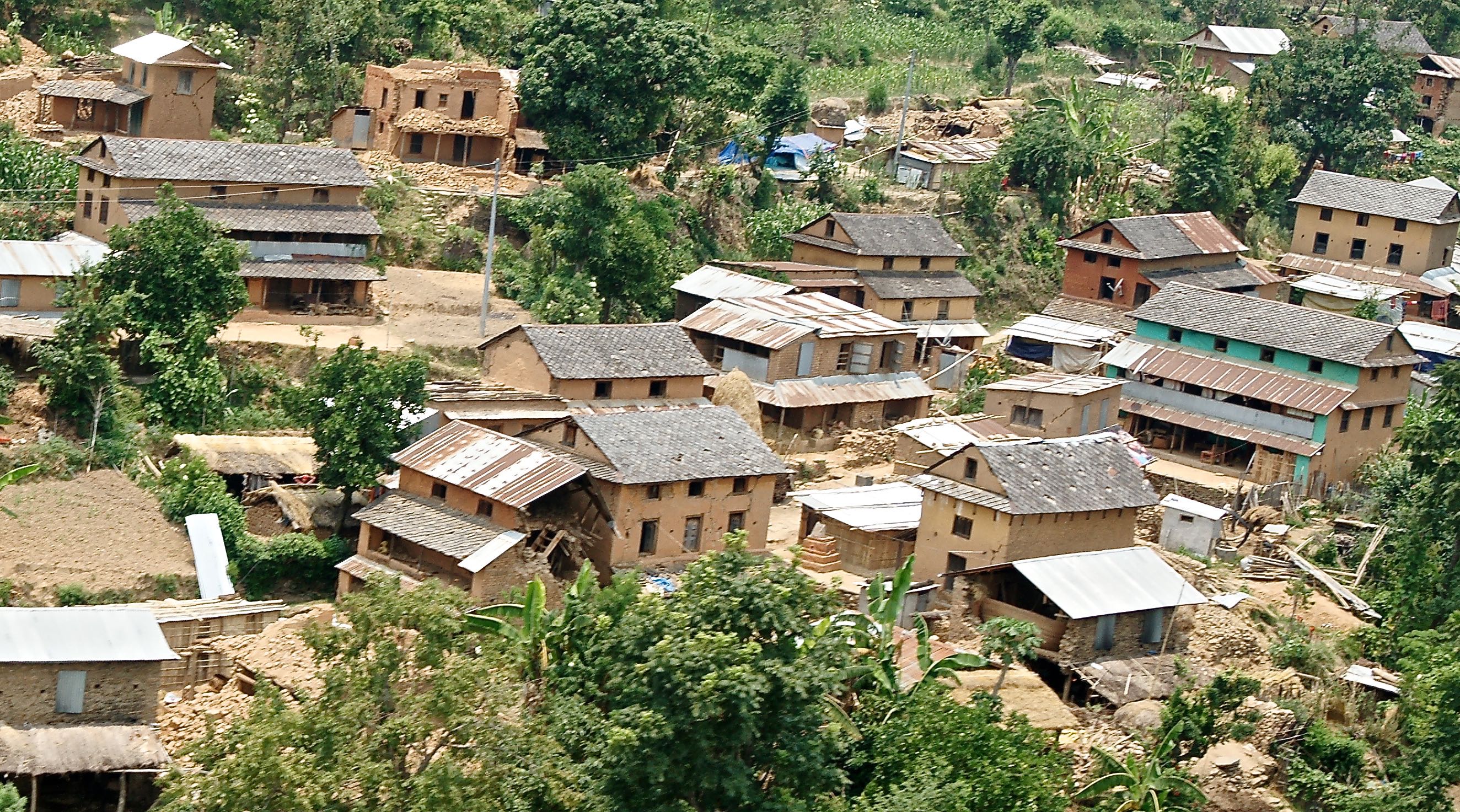

| 85.338 |
27.933 |
6.5 |
Thame |
minor masonry collapse; RCC unscathed |

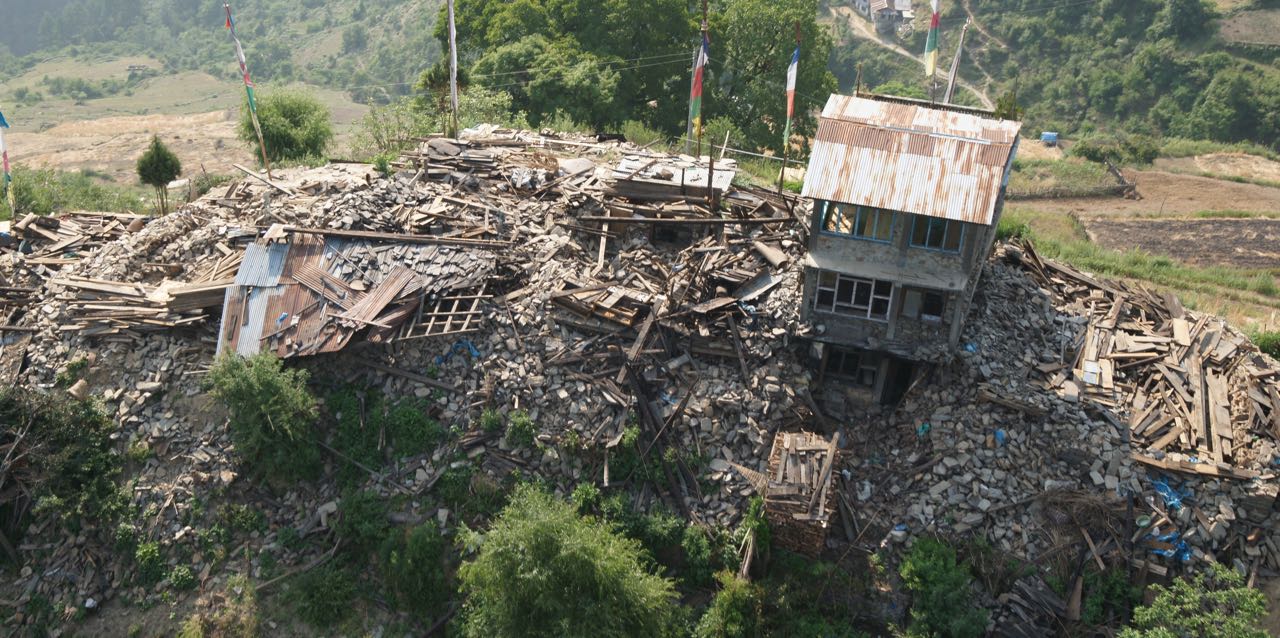

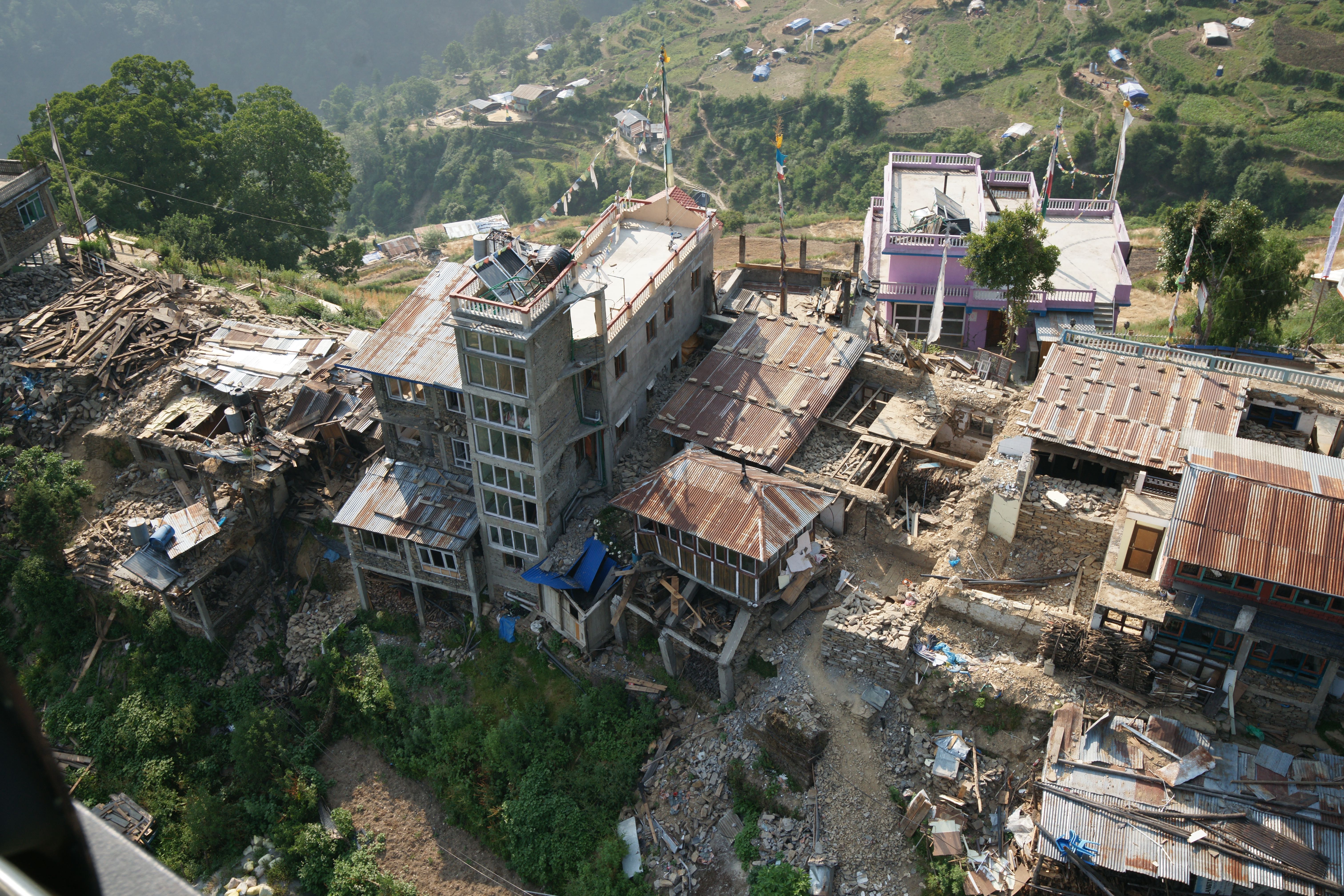

| 85.359 |
28.142 |
8.0 |
Thulo Suabru |
Thulo Sabro Narrative. Grade 5 damage to masonry
buildings; spalling of concrete near joint of column and beam in a few
places; complete collapse of frame of one RCC structure; surviving RCC
scructure suffered Grade 3 damage. Note no damage to distant dwellings far from
ridge. |

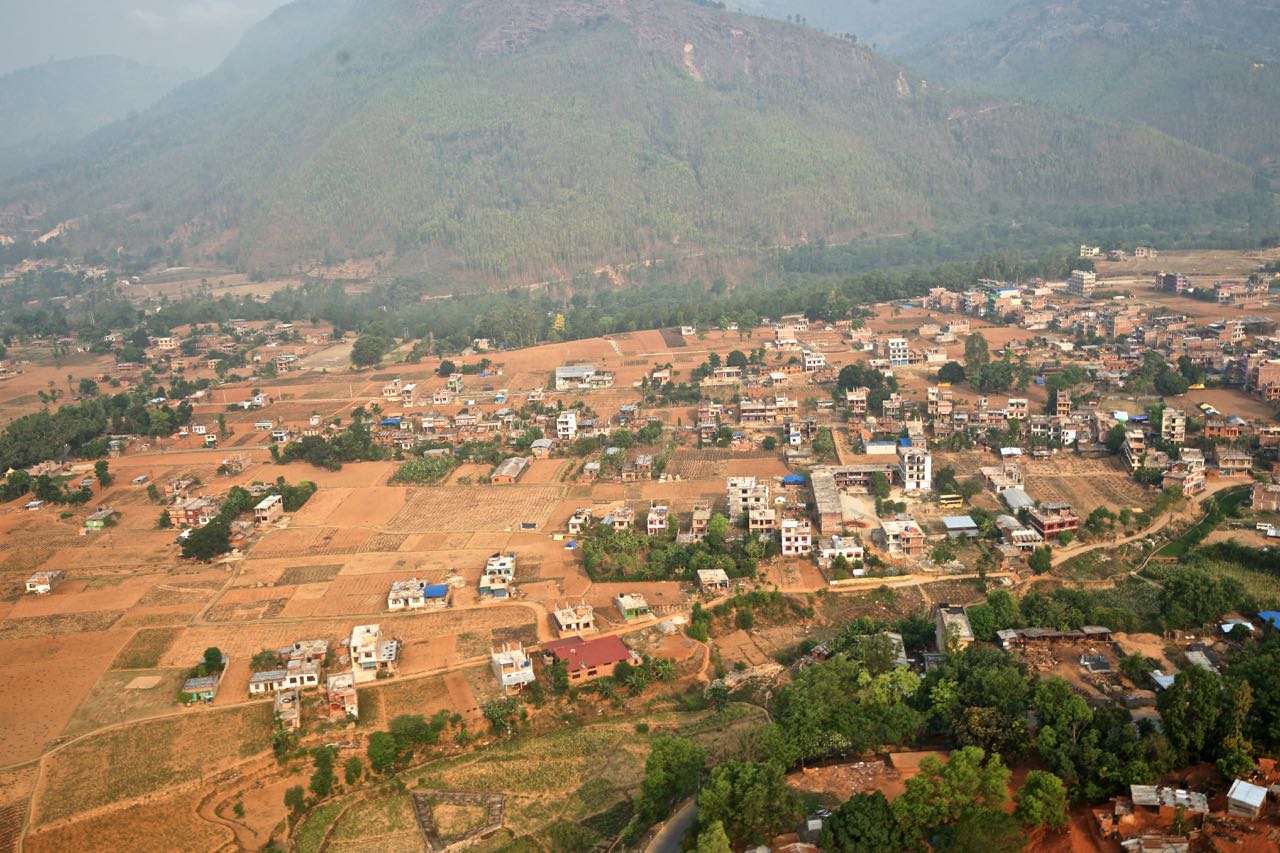

| 85.139 |
27.921 |
6 |
Trisuli |
Minor masonry damage; RCC unscathed |
| 85.405 |
27.798 |
6.5 |

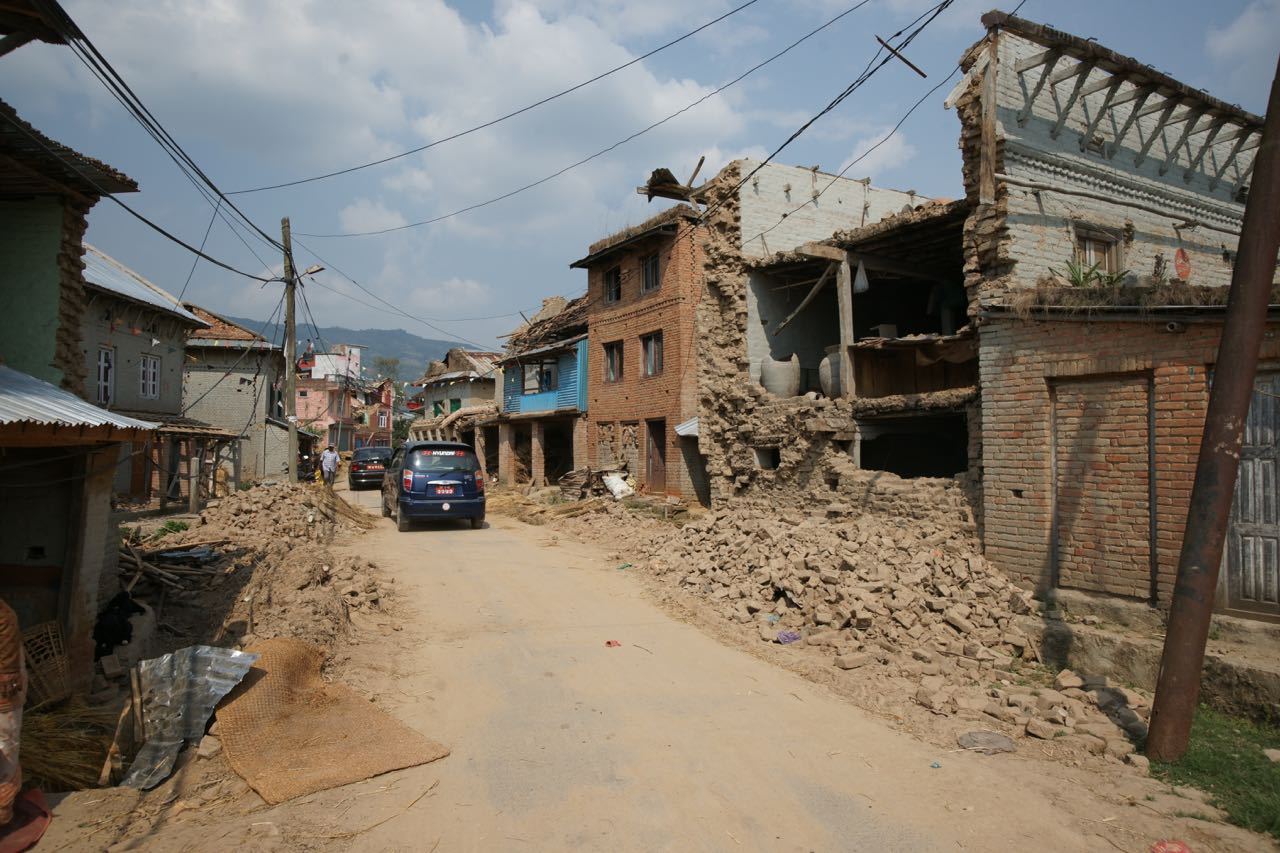

Ukhreni |
Grade 3-4 or 4 damage to masonry
structures |
